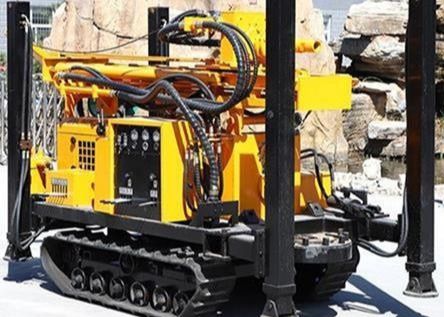

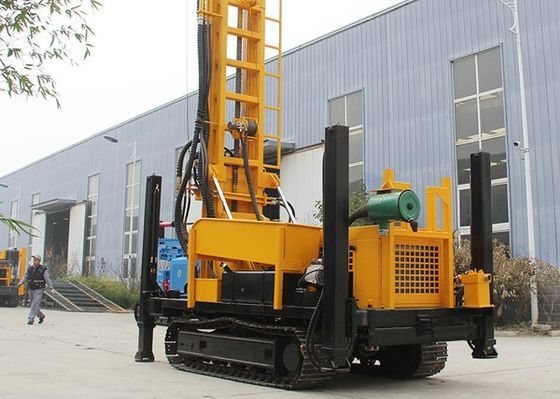

With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling

With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling
With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling
video play

Large Image :  With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: ST-350
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 20000 sets per year
Contact Now
Detailed Product Description
Product Name: ST 350 Pneumatic High Speed Drilling Rig Model: ST 350
Machine Type: Drilling Equipment Application: Water Well Drilling
Hole Diameter: Customized Drilling Depths: 350meters
Place Of Origin: China,Hebei Weight: 8.9 T
Warranty: 12 Months Rotation Torque: 7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption: 16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min After Sale Service: Video Support
Highlight:

iso certificate pneumatic drilling rig

,

st 350 pneumatic drilling rig

,

pneumatic drilling rig high speed

ST 350 Pneumatic High Speed Drilling Rig
Product Specifications
Model ST 350
Machine Type Drilling Equipment
Application Water Well Drilling
Drilling Depths 350 meters
Weight 8.9 T
Warranty 12 months
Rotation Torque 7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption 16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min
After Sale Service Video Support
Product Overview
The ST 350 Pneumatic Drilling Rig is designed for industrial and civil drilling applications, including geothermal drilling. This high-efficiency drilling machine features large drilling diameter capacity, deep drilling capability, fast footage, and flexible movement. With a theoretical drilling depth of 350 meters, it comes equipped with a high-standard air compressor in an integrated design for powerful performance and convenient mobility.
Technical Specifications
Power Type Diesel
Dimensions (L×W×H) 6400MM × 2250MM × 2700MM
Drilling Diameter 152mm-305mm
Depth 25M
Rotary Speed 0-90rpm
DTH K40
Drilling Rods 76×2m + 76×3m
Travelling Speed 0-2.5km/h
Key Features
  • Five-speed manual integrated gearbox with hydraulic release bearing and full synchronizer for reliable operation and extended service life
  • Mechanical winch with fast lifting speed for efficient handling of bottom hole accidents
  • Excellent off-road performance, particularly effective in muddy terrain conditions
  • Four high-strength hydraulic legs with maximum support height of 1.5m for easy loading, moving, and stabilization during operation
Drilling Process Guidelines
Measurement: Regularly measure drilling depth (every 10m or when changing drill bits) and check gearbox components for overheating or abnormal sounds.
Water Supply: When using clean water drilling, ensure proper water flow before commencing operation and maintain adequate volume to prolong pump service life.
The pneumatic drilling machine utilizes high-pressure air as its power source, making it particularly effective for water intake projects in mountainous rock strata and various industrial drilling applications.
Product Gallery
With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling 0 With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling 1 With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling 2 With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling 3 With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling 4 With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling 5 With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling 6 With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling 7 With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling 8 With BW 250 Mud Pump ST350 Pneumatic Drilling Rig For Water Well Drilling 9
