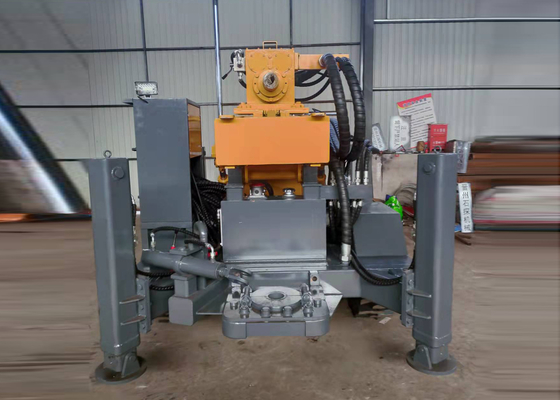

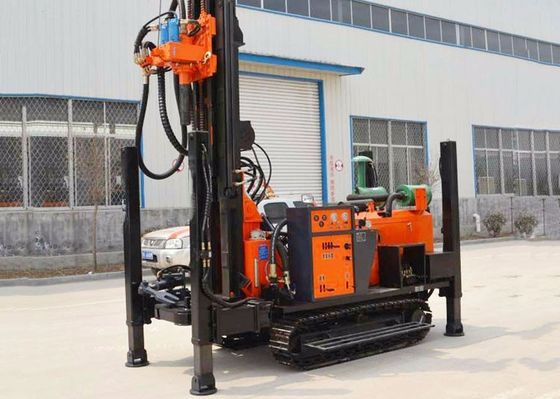

180m Small Customized Portable Pneumatic Drilling Rig Machine For Water Borehole

Large Image : 180m Small Customized Portable Pneumatic Drilling Rig Machine For Water Borehole

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST180

Payment & Shipping Terms:

Minimum Order Quantity:	1sets
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	T/T, Western Union

Contact Now

Detailed Product Description

Product Name:	ST 180 Pneumatic Drilling Rig	Key Words:	Water Well Drilling Rig,300m Borehole Drilling Machine /water Well Drilling Rig For Sale,200m Pneumatic Tractor Mounted Water Well Drilling Rig Machine Price
Drilling Depth:	180 Meters	Color:	Red Yellow Blue
Feature:	High Drilling Efficiency	Usage:	Water Well
Power Type:	Diesel	Drilling Angle:	90° ~75°
Voltage:	220V/380V	Engine:	Diesel Engine
Highlight:	customized portable water well drilling equipment , 180m portable water well drilling equipment , 180m small water well drilling equipment

180m Small Customized Portable Pneumatic Drilling Rig Machine For Water Borehole

Product Specifications

Product Name	ST 180 Pneumatic Drilling Rig
Drilling Depth	180 Meters
Color Options	Red, Yellow, Blue
Key Feature	High Drilling Efficiency
Primary Usage	Water Well Drilling
Power Type	Diesel Engine
Drilling Angle	90° ~75°
Voltage	220V/380V

ST 180 Pneumatic Drilling Rig Description

The ST 180 Pneumatic water well borehole drilling rig offers exceptional drilling speed, capable of drilling 20-40m per hour with high efficiency. Powered by a robust 63kw diesel engine, this rig is ideal for various applications including:

Industrial and civil construction projects
Railway and transportation infrastructure
Hydropower and bridge construction
Dam foundation and other building projects

Technical Specifications

Item NO.	ST-180	Air consumption(m³/min)	17-31
Weight (T)	4.5	Equipped capacitor (Kw)	55
Dimensions (mm)	3800×1550×2350	Swing speed (rpm)	45-65
Hole diameter (mm)	140-254	Swing torque (N.m)	3200-4600
Drilling Depth (m)	180	Drill pipe diameter (mm)	76/89
Once-time advance length (m)	3.3	Drill pipe length (m)	1.5/2.0/3.0
Walking speed (Km/h)	2.5	Rig lifting force (T)	10
Climbing angles (Max.)	30	Supporting Power	29m³/min 23BAR AIR COMPRESSOR
Using air pressure (Mpa)	1.7-2.5

Key Advantages

Oil pressure automatic feeding mechanism enhances drilling efficiency and reduces worker labor intensity
Ball clamp clamping mechanism with positioning for rod reversing without stopping
Pressure gauge at hole bottom to monitor conditions
Centralized handle controls for easy operation
Compact structure with power machine on same base for small footprint
Lightweight and decomposable design for easy mobility in plains or mountains
Safety shield for enhanced operator protection
Fixed nuts at feed cylinder connection for improved reliability

Courtyard Drilling Considerations

Assess underground utilities (cables, sewers) before drilling
Use charcoal and test fish to verify water safety post-drilling
Optimal well depth with proper ground-level protection (bricks, cover)

Frequently Asked Questions

Q: What kind of drilling rigs do you offer?

A: We manufacture various drilling rigs including small hydraulic models, water well rigs, core drilling rigs, and geological exploration rigs. We recommend models based on specific requirements.

Q: Where is your company located?

A: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China.

Q: Are you a manufacturer?

A: Yes, we are a 20-year professional manufacturer with ISO certification and a modern drilling rig plant in Hebei.

Q: What is your delivery time?

A: Small hydraulic rigs: 5-7 days; Large pneumatic rigs: 7-15 days. Contact us for urgent orders.

Q: What is your warranty policy?

A: One year for the whole machine (excluding consumable parts).

Q: How long does your air compressor last?

A: Typically over 10 years with proper maintenance.

Q: What payment methods do you accept?

A: TT (Telegraphic Transfer) and Western Union.
