GK200 Exploration Drilling Rig Hydraulic Core Sampling Diesel

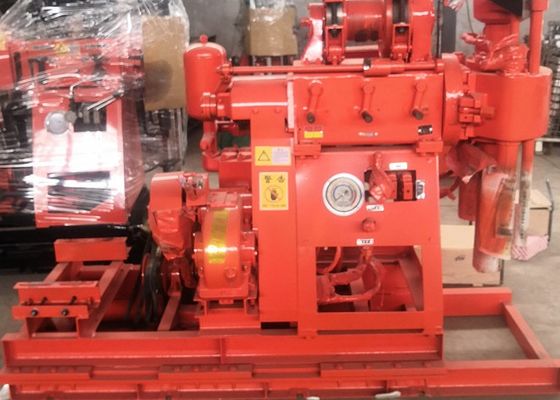

Large Image : GK200 Exploration Drilling Rig Hydraulic Core Sampling Diesel

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	GK200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Name:	Geological Drilling Rig Machine	Power Type:	Diesel
Usage:	Water Well	Voltage:	380V
Power(W):	15KW	Weight:	626KGS
Condition:	New	Equipment Size(L * B * H):	1730 * 860 * 1360 (mm)
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Warranty:	1 Year
Highlight:	core sampling exploration drilling rig , 200m exploration drilling rig , 200m hydraulic drilling rig

GK200 Hydraulic Core Sampling Exploration Drilingl Rig/Diesel Hydraulic Drilling Rig

Brief introduction of drilling rig

GK200 this core drilling rig is suitable for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes.drilling bits can be chosen according to the different soil condition, such as alloy, diamond and composite.

GK200 Hydraulic Portable 200m Water Well Drilling Machine

Drilling depth	200m
Open hole diameter	75-300mm
End hole diameter	75mm
Active drill rod	53/59*4200mm
Rod diameter	50,60mm
Drill angle	90°-75°
Matched power(diesel power)	15kw/2200r/min
Dimension	28009501700mm

PRODUCT DESCRIPTION

General geological survey exploration, road and high-rise building foundation exploration, various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells and ground temperature central air conditioning, etc.

PRODUCT FEATURE

1. The hoist is equipped with a cage to form a double-sided supporting star wheel structure, which can withstand strong impacts;

2. The four sets of bearings in the vertical axle box are positioned to ensure that the gyrator has sufficient rigidity to deal with complex geological conditions such as gravel and pebble layers;

3. This machine adopts the taper clutch of national patent technology, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free;

4. It adopts 53×59 hexagonal active drill pipe, which has strong rigidity and large transmission torque.

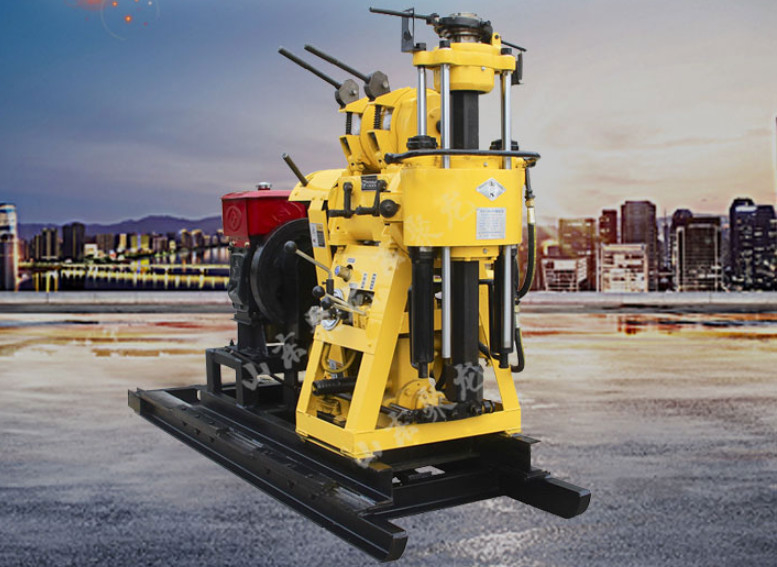

GK200 Exploration Drilling Rig Hydraulic Core Sampling Diesel 0
