Small XY-1A Rotary Drilling Machine In Mining Diesel Engine Power

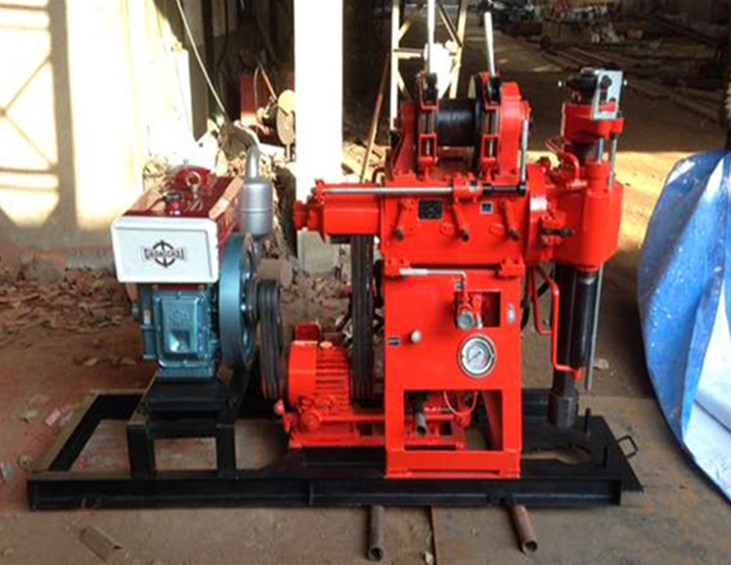

Large Image : Small XY-1A Rotary Drilling Machine In Mining Diesel Engine Power

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	XY-1A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Name:	Engineering Drilling Rig	Type:	Rotary Drilling Rig
Power Type:	Diesel	Usage:	Water Well
Voltage:	380V	Power(W):	15KW
Weight:	1200KGS	Other Name:	Drill Rig
Drill Rod Diameter:	42, 50mm	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Highlight:	xy-1a rotary water well drilling rig , engineering rotary water well drilling rig , xy-1a small water well drilling rig

Small XY-1A Rotary Drilling Machine In Mining Diesel Engine Power

Product Specifications

Attribute	Value
Name	Engineering Drilling Rig
Type	Rotary Drilling Rig
Power Type	Diesel
Usage	Water Well
Voltage	380V
Power	15KW
Weight	1200KGS
Other Name	Drill Rig
Drill Rod Diameter	42, 50mm
After-sales Service	Engineers available to service machinery overseas

Product Description

The XY-1A Engineering Drilling Rig is a hydraulic feeding, high-speed torque belt drilling machine with pump, designed for exploration of solid mineral deposits, geological surveys, and inspection holes in concrete structures. It supports diamond, alloy, and steel bits for different strata conditions.

Technical Parameters

Component	Specification
Drilling Depth	Max. 150m
Hole Diameter	Max. 150m
Drill Rod Diameter	42, 50mm
Angle Range	90-75°
Spindle Speed	1010, 790, 470, 295, 140 (r/min)
Spindle Stroke	450mm
Spindle Pull-down	Max. 15KN
Spindle Lifting Capacity	Max. 25KN
Weight	Approx. 600KG
Dimensions	1620×970×1560mm

Primary Applications

Drilling for general survey and exploration of solid mineral deposits
Engineering geological surveys and inspection holes in concrete structures
Supports diamond, alloy, and steel bits for different formations
Rated drilling depth of 100m (75mm hole) or 180m (46mm hole)
Maximum opening diameter of 150mm

Key Features

Hydraulic feed mechanism improves efficiency and reduces labor intensity
Upper ball clamping mechanism and hexagonal active drill rod allow reverse operation without stopping
Pressure gauge at the bottom indicates hole conditions
Centralized handle operation for convenience
Compact, lightweight design with strong decomposability for easy transport
Double wheel support structure for stability during operation
Vertical box with four bearing positions for rigidity in complex geological conditions
Patented taper clutch technology with strong transmission torque
High rigidity 46×51 active drill rods for strong torque delivery
