Civil 150m Portable Water Drilling Machine Crawler Diesel Xy-1a

Large Image : Civil 150m Portable Water Drilling Machine Crawler Diesel Xy-1a

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-1A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Type:	Core Drill Rig	Power Type:	Diesel
Weight::	480kg	Usage:	Water Well,railways, Core Drilling
Drilling Depth:	30-180m	Dimension(LWH):	16209701560mm
Drill Pipe Diameter:	42mm	Borehole Dip Angle:	90°~75
Spindle Speed:	1010、790、470、295、140（r/min）	Model:	YBC-12/125
Rated Pressure:	12.5Mpa	Model(diesel Engine）:	1105
Highlight:	crawler water well drilling rig xy-1a , hydraulic water well drilling rig xy-1a , civil hydraulic water well drilling rig

Civil 150m Portable Water Drilling Machine Crawler Diesel XY-1A

Product Specifications

Attribute	Value
Type	Core Drill Rig
Power Type	Diesel
Weight	480kg
Usage	Water well, railways, core drilling
Drilling depth	30-180m
Dimension (LWH)	16209701560mm
Drill pipe diameter	42mm
Borehole dip angle	90°~75
Spindle speed	1010, 790, 470, 295, 140 (r/min)
Model	YBC-12/125
Rated pressure	12.5Mpa
Model (diesel engine)	1105

Product Overview

The XY-1A Soil Test Drilling Machine is a core drilling equipment primarily used for general survey and exploration of metal and non-metallic solid minerals. It's also suitable for engineering geological exploration, hydrogeological survey, oil and gas field exploration, and water well drilling.

Technical Parameters

Component	Parameter	Value
Drill Swivel Head	Drilling depth	Max. 150m
	Spindle speed	1010, 790, 470, 295, 140 (r/min)
	Spindle stroke	450mm
	Spindle pull-down	Max. 15KN
	Spindle lifting capacity	Max. 25KN
Weight		Approx. 600kg
Size		16209701560mm

Key Features

Automatic oil pressure feeding mechanism improves drilling efficiency and reduces labor intensity
Ball clamp type clamping mechanism allows rod reversing without stopping the machine - safe and reliable operation
Centralized handle operation with pressure gauge for monitoring hole conditions
Compact structure with drilling rig, water pump, and power engine assembled on same base
Lightweight design with strong decomposition for easy mobility
Taper clutch provides large transmission torque with maintenance-free operation

Applications

General survey exploration and geophysical exploration
Road and building construction surveys
Water well drilling projects
Compatible with alloy, diamond, and composite bits for different geological layers
Capable of drilling grade 2-9 sandy clay and rock stratum

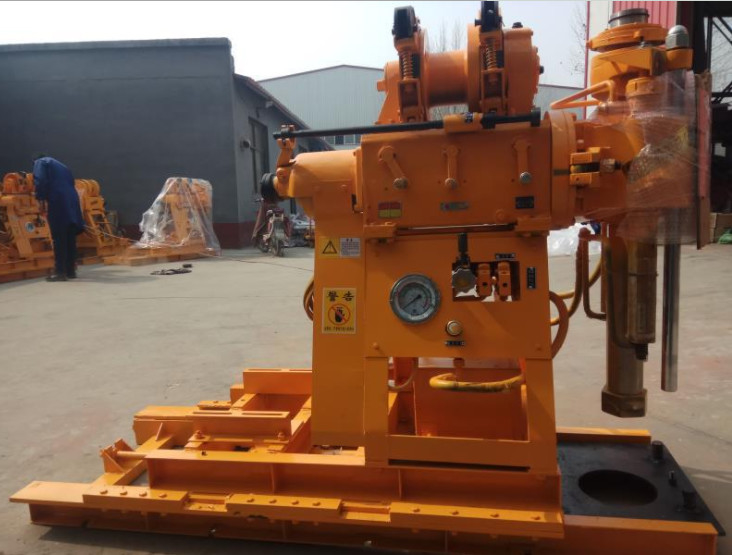

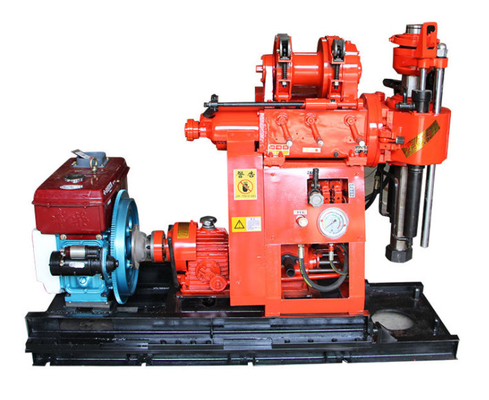

Product Images
