High Speed Pneumatic Crawler Mounted Drill Rig Machine St 180 For Water Well Borehole Drilling

High Speed Pneumatic Crawler Mounted Drill Rig Machine St 180 For Water Well Borehole Drilling
High Speed Pneumatic Crawler Mounted Drill Rig Machine St 180 For Water Well Borehole Drilling
video play

Large Image :  High Speed Pneumatic Crawler Mounted Drill Rig Machine St 180 For Water Well Borehole Drilling

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST 180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 50000 sets per year
Contact Now
Detailed Product Description
Product Name: High Speed Pneumatic Drilling Machine ST 180 Crawler Mounted Drilling Rig Drilling Depth: 180 Meters
Drilling Hole Diameter: 105-300mm Color: Red Yellow Blue
Feature: High Drilling Efficiency Application: Water Well Drilling
Power Type: Diesel Engine Warranty: 1 Year
Voltage: 220V/380V Length Of Drill Pipe(mm): 3m
Place Of Origin: Hebei,China OEM: Acceptable
High Light:

180m crawler mounted drill rig

,

pneumatic crawler mounted drill rig machine

,

180m crawler drill machine

High Speed Pneumatic Drilling Machine ST 180 Crawler Mounted Drilling Rig





ST 180 Crawler Mounted Drilling Rig introduction



ST 180  is a type of light weight, high efficient, multiple functional drilling hole equipment. Which is equipped with advanced structure, easy to handle,high efficient, durable using etc , widely used for drilling well, farming irrigation well,geothermal air conditionhole and other usage well hole, especially suitable for water intaking in moutainnous area and rock layer.

ST 180 Crawler Mounted Drilling Rig Tech Data



Drilling Rig Model ST-180 Air consumption(m³/min) 17-31
The Weight(T) 4.5 Equipped capacitor(Kw) 55
Dimensions(mm) 3800*1550*2350 Swing speed(rpm) 45-65
The hole diameter(mm) 140-254
Swing torque(N.m)
 3200-4600
Drilling Depth(m) 180 Drill pipe diameter(mm) 76 89
Once-time advance length(m) 3.3 Drill pipe length(m) 1.5 2.0 3.0
Walking speed(Km/h) 2.5 Rig lifting force(T) 10
Climbing angles(Max.) 30 sopporting Power 29m3/min 23BAR AIR COMPRESSOR


ST 180 Crawler Mounted Drilling Rig Features



1. The engine uses Guangxi Yuchai  turbocharged engine;
2. Traveling device: the traveling motor is equipped with reducer, which has long service life;
3. Hydraulic oil pump; Parallel transmission design (patent) separate oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system, simple maintenance and low cost;
4. Power head unit; The gearbox is integrally cast, and dual motors provide power, with large torque, durability and low maintenance cost;
5. Drilling rig chassis; Professional excavator chassis, durable, large bearing weight, wide chain plate, less damage to hard pavement;
6. Lifting force; Patented composite boom with small volume, long stroke, double oil cylinder lifting and large lifting tonnage;
7. The lifting boom of each drilling rig is equipped with a stopper to protect the oil cylinder and ensure work safety;


ST 180 Crawler Mounted Drilling Rig Operation Attentions



When the drill bit touches the hard soil layer and the drilling speed is slow, it can be pressurized with the pressure rod to speed up. If the drill pipe is skewed, it can be adjusted with the hook on the pressure rod. A mud pit with width of 2m, length of 3M and depth of 1m shall be excavated around 5m away from the drilling machine for slurry mixing when the drilling machine drills into the sand layer. As soon as the thread is disengaged, make it separate immediately. When withdrawing the rod, pay attention to avoid the swing of the mother rod to avoid thread damage. At the same time, the staff shall tighten the steel wire rope. It is used for flushing soil during drilling. Avoid relative movement between external thread and internal thread and wear the thread. After the work of the drilling rig is completed, the rod shall be retracted. When the rod is retracted, pull the lifting wrench to make the drum roll and drive the drill pipe to rise through friction. When the screw head of the mother rod is exposed. When docking the drill pipe, the throttle of the diesel engine shall be small, and the drill pipe shall not swing left and right as far as possible to avoid premature damage of the drill pipe thread. Close the valve under the rotary table and engage the reverse gear to retract the lever.

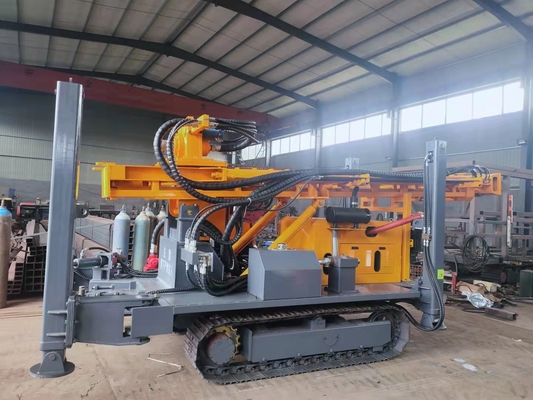

 High Speed Pneumatic Crawler Mounted Drill Rig Machine St 180 For Water Well Borehole Drilling 0

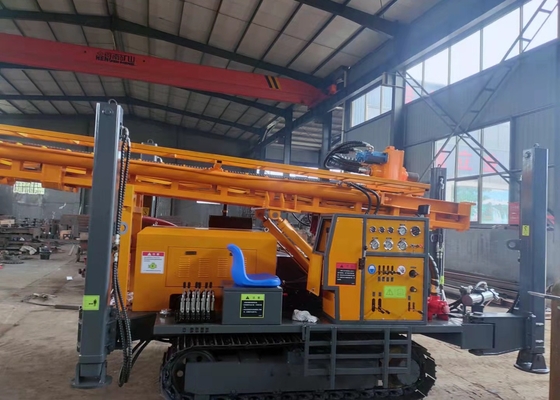

High Speed Pneumatic Crawler Mounted Drill Rig Machine St 180 For Water Well Borehole Drilling 1

High Speed Pneumatic Crawler Mounted Drill Rig Machine St 180 For Water Well Borehole Drilling 2

High Speed Pneumatic Crawler Mounted Drill Rig Machine St 180 For Water Well Borehole Drilling 3










Tag:

track mounted drilling machine,

hydraulic crawler drilling machine,

track mounted drill rig
