Coring Survey 15KW Soil Test Drilling Machine Full Hydraulic

Large Image : Coring Survey 15KW Soil Test Drilling Machine Full Hydraulic

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	GK200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Name:	Geological Drilling Rig Machine	Power Type:	Diesel
Voltage:	380V	Power(W):	15KW
Weight:	626KGS	Condition:	New
Equipment Size(L * B * H):	1730 * 860 * 1360 (mm)	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Warranty:	1 Year	Product Name:	Small Bottle Filling Machine,Chemical Oil Pallet Drum Filling Machine,Essential Olive Oil Vial Filling Machine For Laboratory
Highlight:	15kw soil test drilling machine , coring survey soil test drilling machine , 15kw soil testing drilling rig

Coring Drilling Rig Survey Drilling Rig Full Hydraulic Soil Test Drilling Machine

Brief introduction of drilling rig

Applications GK200 drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees, civil wells and earth temperature central air-conditioner

GK200 Hydraulic Portable 200m Water Well Drilling Machine

Drilling depth	200m
Open hole diameter	75-300mm
End hole diameter	75mm
Active drill rod	53/59*4200mm
Rod diameter	50,60mm
Drill angle	90°-75°
Matched power(diesel power)	15kw/2200r/min
Dimension	28009501700mm

Soil Test Drilling Machine Main Features

a. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque. b. The machine is equipped with national patent technology---taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance. c. For the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch. d. Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions. e. Additional ,XY-180 with five gears, and the highest speed can reach 1045r/min, improving drill efficiency

Soil Test Drilling Machine characteristics

1, The drilling machine has a hydraulic automatic feed mechanism, improve drilling efficiency,

reduce manual labor workers.

2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever,

easy to operate, safe and reliable.

3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

4 The handle centralized, easy to operate.

5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.

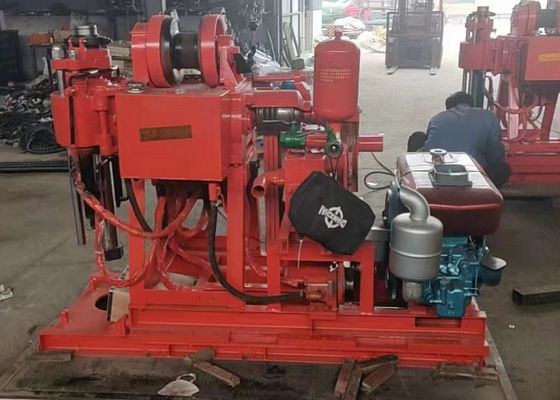

Coring Survey 15KW Soil Test Drilling Machine Full Hydraulic 0

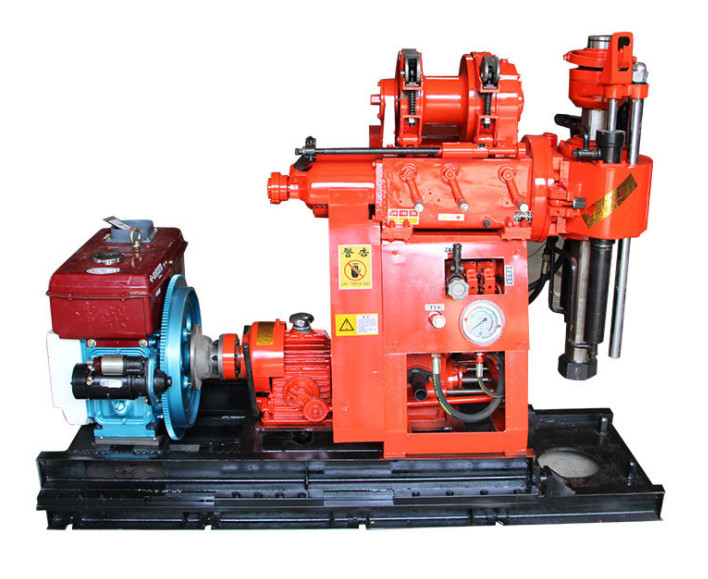

Coring Survey 15KW Soil Test Drilling Machine Full Hydraulic 1
