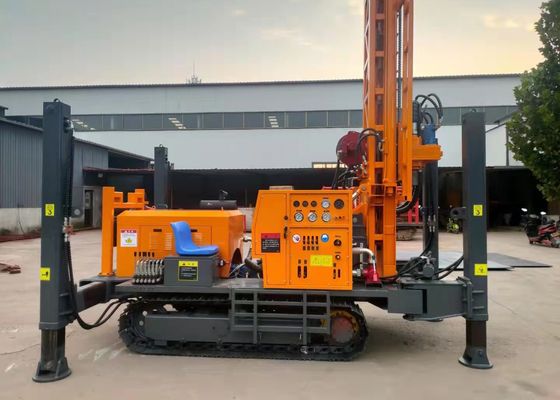

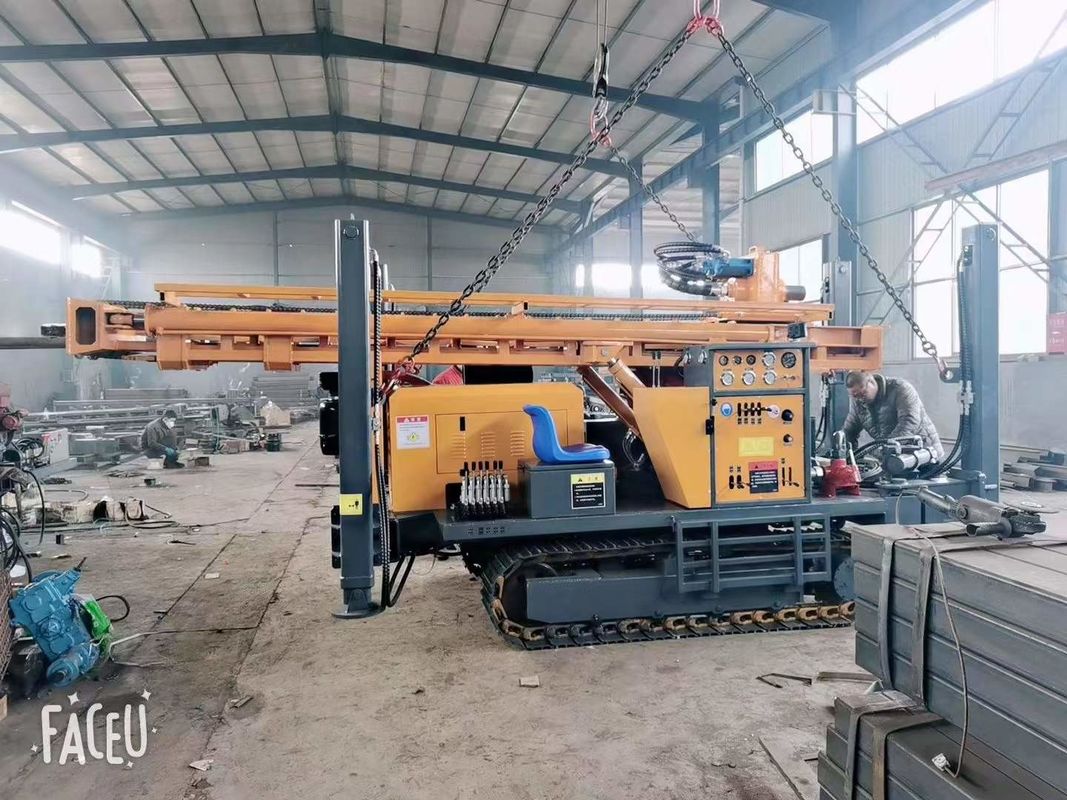

Diamond Core Diesel 200m Truck Mounted Water Drilling Rig

Diamond Core Diesel 200m Truck Mounted Water Drilling Rig
Diamond Core Diesel 200m Truck Mounted Water Drilling Rig
video play

Large Image :  Diamond Core Diesel 200m Truck Mounted Water Drilling Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST-200
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Naked
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 1000year
Contact Now
Detailed Product Description
Type: Crawler Mounted Drill Rig Power Type: Diesel
Driving Way: Hydraulic Driving Usage: Geological Core Drilling
Voltage: 380V Model Number: ST-260
Name: Well Drilling Equipment Air Pressure: 1.25-3.5Mpa
Weight Of The Rig: 4m×1.7m×2.2m Certification: ISO9001
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Highlight:

200m truck mounted water drilling rig

,

diesel truck mounted water drilling rig

,

200m truck mounted drilling machine

Rill Diamond Core Rotary Small Trailer Borehole Truck Mounted Machine Used 200m Soil Testing Water Well Drilling Rig





Introduction of 200 crawler type water well drilling rig:



ST200 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.



crawler type water well drilling rig parameters:

Weight of whole machine6
5.5T
Drilling caliber
140-254mm
Drilling depth
200m
One-time push length
3.3m
Walking speed
2.5km/h
Climbing ability



Max. 30
Power of main machine
76kw
Working pressure
1.7-2.5mpa
Air consumption
17-31m3/min
Diameter of drill rod
76, 89mm
Length of drill rod
1.5, 2.0, 3.0m
Lifting force
12T
Rotation speed
45-65rpm
Rotation torque
3200-4600N.m
Dimension
3800*1500*2200mm

Operating time characteristics of drilling equipment

1. Wear fast. Due to the processing, assembly and adjustment of new machine parts, the friction surface is rough, the contact area is small, and the surface pressure state is uneven, which speeds up the wear of the mating surface of the parts.
2. Poor lubrication. Because the fit clearance of newly assembled parts is small, and it is difficult to ensure the uniformity of fit clearance due to assembly and other reasons, the lubricant (fat) is not easy to form a uniform oil film on the friction surface, so as to reduce the lubrication performance and lead to abnormal early wear of parts.
3. Looseness occurs. Due to the influence of newly processed assembly parts, heat, deformation, rapid wear and other reasons, the original tightened parts can be easily loosened.
4. Leakage occurs. Due to the looseness, vibration and heating of the machine, leakage may occur on the sealing surface and coupling of the machine.
5. Operation error. Due to the lack of understanding of the structure and performance of the machine, misoperation is easy to lead to failure and even operation accidents.

Features:

1.High drilling efficiency, power provided by 42KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating



Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

Diamond Core Diesel 200m Truck Mounted Water Drilling Rig
Diamond Core Diesel 200m Truck Mounted Water Drilling RigDiamond Core Diesel 200m Truck Mounted Water Drilling RigDiamond Core Diesel 200m Truck Mounted Water Drilling RigDiamond Core Diesel 200m Truck Mounted Water Drilling RigDiamond Core Diesel 200m Truck Mounted Water Drilling RigDiamond Core Diesel 200m Truck Mounted Water Drilling RigDiamond Core Diesel 200m Truck Mounted Water Drilling Rig
