Customized ST260 Crawler Mounted Drill Rig Oem Depth And Hole Diameter

Large Image : Customized ST260 Crawler Mounted Drill Rig Oem Depth And Hole Diameter

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST 260

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	25000-30000 USD
Packaging Details:	Wooden case (bare)
Delivery Time:	5-8days
Payment Terms:	T/T, Western Union
Supply Ability:	100/month

Contact Now

Detailed Product Description

Product Name:	Customized ST 260 OEM Depth And Hole Diameter Crawler Mounted Water Well Drilling Rig	Drilling Diameter:	105-260mm
After-sales Service Provided:	Water Well Drilling Rig	Warranty:	1 Year
Power Type:	Diesel	Color:	Yellow
Weight:	6T	Rotary Head Storke:	3.4m-6.0m
Rated Power:	55-132KW	Optional Accessories:	70KW
Weight Of The Rig:	4m×1.7m×2.2m	Air Pressure:	16-55m³/min
Highlight:	260m crawler mounted drill rig , oem diameter crawler mounted drill rig , 260m crawler drill rig

Customized ST 260 OEM Depth and Hole Diameter Crawler Mounted Water Well Drilling Rig

ST 260 Crawler Mounted Water Well Drilling Rig Introduction

The pneumatic drilling machine is a kind of fast deep water well drilling equipment using high-pressure air as the power source. It is suitable for industrial and civil drilling, geothermal drilling and other purposes, especially for water intake engineering in mountainous rock strata

ST 260 Crawler Mounted Water Well Drilling Rig Tech Data

ST 260 Crawler Mounted Drill Rig	260m
Dia.hole	φ105-260mm
Advance Length one time	6.6m
Working pressure	1.7-3.0MPa
Air consumption	17-35m³/min
Length of rod	1.5m,2m,3m,6m
Dia. Of rod	φ76, φ89,φ102,φ114
Lifting power	24T
Rotation torque	8500-11000N.m
Rotation Speed	40-70r/min
Diesel Engine	Yuchai
Engine Power	85Kw/2200rpm
Travelling speed	0-2.5 Km/h
Climb capacity	30°
Weight	9000kgs
Dimension	5900x2000x2850mm
Application	Complicated geological conditions:Rock,Mud,Sand etc.
Drilling Way	Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling
Dth Hammer	4",5",6",8" Drill hammer or CIR110, 130, 150,170

ST 260 Pneumatic Drilling Rig Main Advantages

1. The crawler has strong carrying capacity, can bear 2.5 tons of weight, large climbing capacity, simple operation and high drilling efficiency.

2. The four supporting feet of the crawler chassis are hydraulic supporting feet, and each supporting foot is controlled separately, so that the whole crawler platform can be stably fixed on the ground.

3. The crawler platform and drilling tower are welded with square tubes. The design structure has high strength and good rigidity.

ST 260 Crawler Mounted Water Well Drilling Rig DTH hammer Selection

(1) It has good adaptability and can work normally under high and low compressor pressures.

(2) It has high drilling speed and service life.

(3) It can work under various complex rock strata (including aquifer).

(4) Remove the rock powder at the bottom of the hole.

(5) The utility model has the advantages of simple structure and convenient manufacture, use and maintenance.

(6) It has better energy recovery, that is, less energy consumption

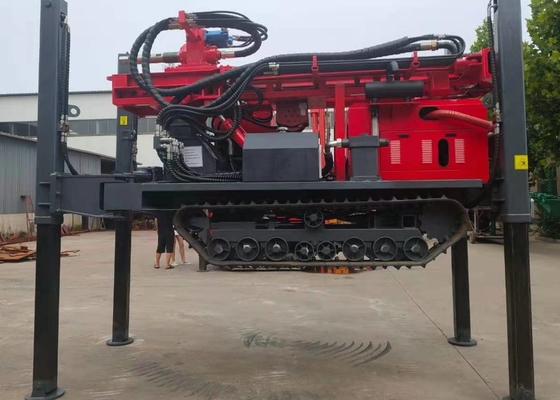

Customized ST260 Crawler Mounted Drill Rig Oem Depth And Hole Diameter 0

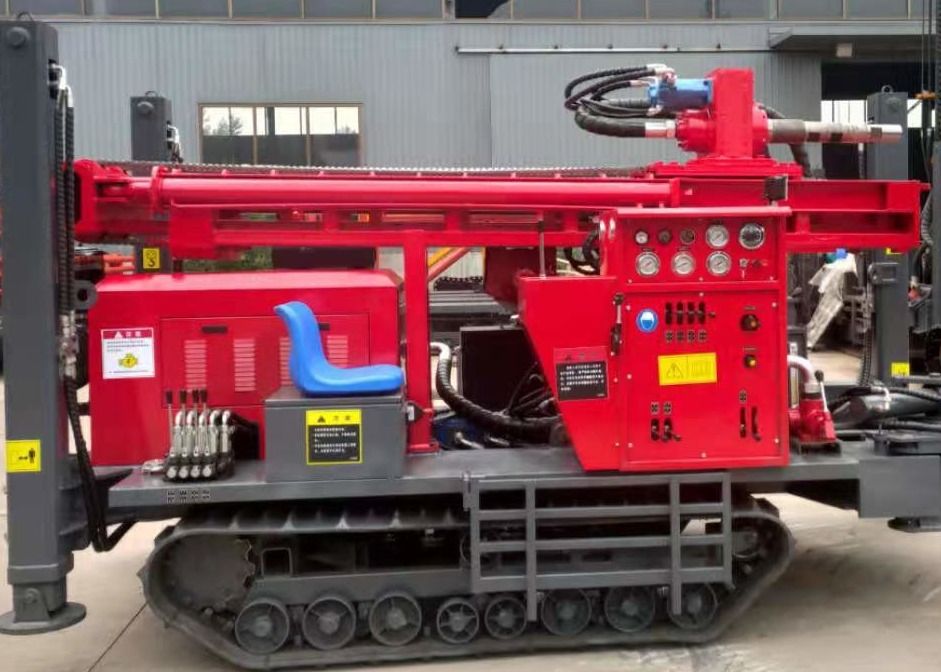

Customized ST260 Crawler Mounted Drill Rig Oem Depth And Hole Diameter 1
