Large St-200 Crawler Water Well Drilling Rig Pneumatic With Kaishan Air Compressor

Large St-200 Crawler Water Well Drilling Rig Pneumatic With Kaishan Air Compressor
Large St-200 Crawler Water Well Drilling Rig Pneumatic With Kaishan Air Compressor
video play

Large Image :  Large St-200 Crawler Water Well Drilling Rig Pneumatic With Kaishan Air Compressor

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: ST-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Product Name: Pneumatic Drilling Rig Model Number: Crawler Mounted Large Water Well Drilling Rig
Machine Type: Drilling Equipment Certification: ISO
Hole Diameter: Customized Drilling Depths: 200 Meters
Condition: New Weight: 8.9 T
Warranty: 12 Months Rotation Torque: 7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption: 16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min Color: Blue ,yellow ,red
Highlight:

200m crawler water well drilling rig

,

pneumatic crawler water well drilling rig

,

kaishan air compressor pneumatic drilling rig

Large St-200 Crawler Water Well Drilling Rig Pneumatic With Kaishan Air Compressor
Product Specifications
Attribute Value
Product Name Pneumatic Drilling Rig
Model Number Crawler Mounted Large Water Well Drilling Rig
Machine Type Drilling Equipment
Certification ISO
Hole Diameter Customized
Drilling Depths 200 meters
Condition New
Weight 8.9 T
Warranty 12 months
Rotation Torque 7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption 16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min
Color Blue, Yellow, Red
Product Overview
Large Water Well Drilling Machine with Kaishan Air Compressor, ST 200 Pneumatic Drilling Rig

The ST 200 Pneumatic Drilling Rig features a high leg stroke of 1.35 meters and tower height of 4.5 meters. With a maximum rotation speed of 85-170r/min, it significantly improves work efficiency as a versatile water/steam dual-purpose drill.

Technical Specifications
Drilling Rig Model ST 200
Condition New
Drilling Depth 200 Meters
Power Type Diesel
Origin China
Brand Name Shitan
Usage Water Well Drilling
Dimensions (L×W×H) 6400MM × 2250MM × 2700MM
Weight 5800KG
Certification ISO9000
Warranty 1 Year
Drilling Diameter 90-152mm
Rotary Speed 0-90rpm
DTH K40
Drilling Rods 76×2m + 76×3m
Air Consumption 13-20m3/min
Traveling Speed 0-2.5km/h
Key Features
  • Truck or crawler mounted rotary drilling rig with mechanical main transmission
  • Combination of hydraulic and mechanical operation systems
  • Supports mud flushing for positive circulation drilling
  • Capable of both pressurized and decompression drilling
  • Equipped with one main hoist and two auxiliary hoists
  • Includes four leveling hydraulic jacks to reduce labor intensity
  • Optional automatic rod unloader available
  • Lifting force capacity of 16T
Frequently Asked Questions
Q: What kind of drilling rigs do you offer?

A: We manufacture various drilling rigs including small hydraulic models, water well drills, core drills, engineering drills, and geological exploration rigs. We recommend the most suitable model based on your specific requirements.

Q: Where is your company located?

A: Our factory is located in Jinzhou, Shijiazhuang City, Hebei Province, China.

Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer with 20 years of experience and ISO certification, operating from a large modern drilling rig plant in Hebei, China.

Q: What is your delivery time?

A: Small hydraulic drilling rigs typically ship in 5-7 days, while large pneumatic water well drilling rigs take 7-15 days. Please contact our sales team for urgent orders.

Q: What is your warranty policy?

A: The entire machine comes with a 1-year warranty, excluding consumable spare parts.

Product Images

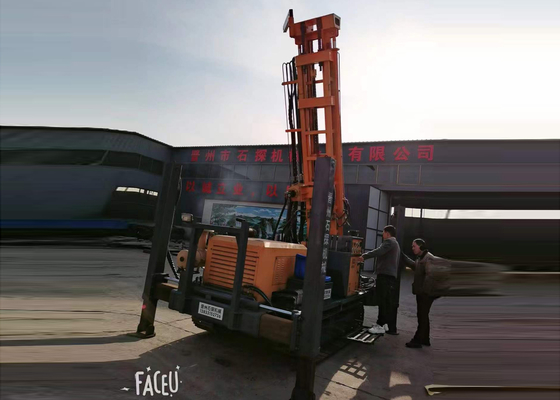

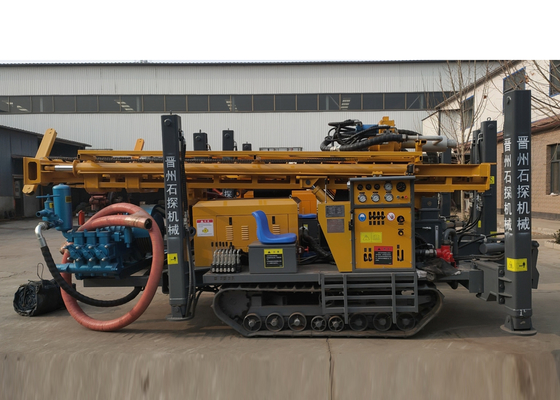

Large St-200 Crawler Water Well Drilling Rig Pneumatic With Kaishan Air Compressor 0 Large St-200 Crawler Water Well Drilling Rig Pneumatic With Kaishan Air Compressor 1
