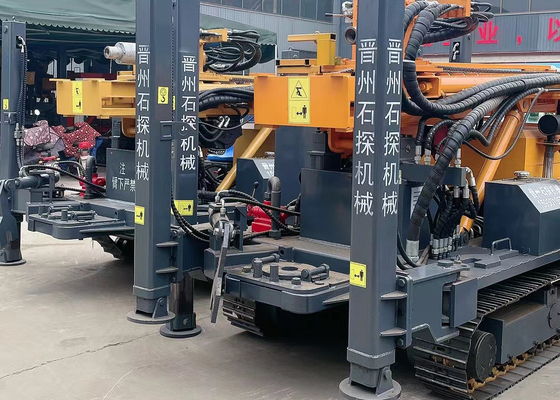

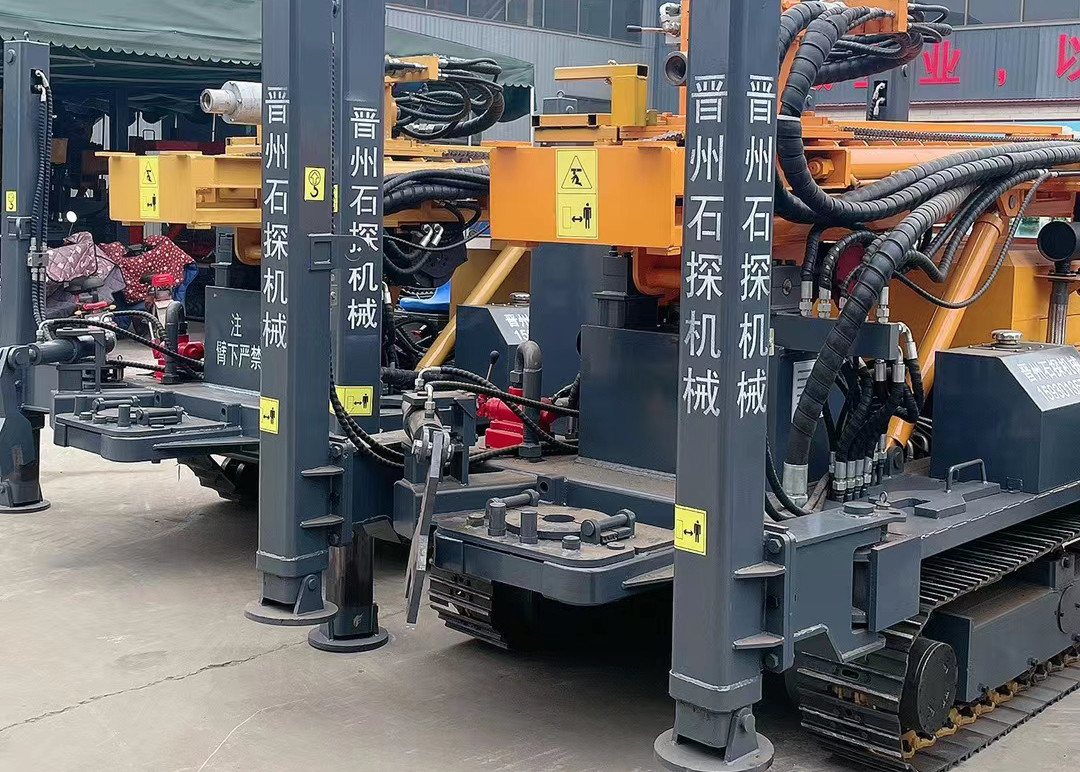

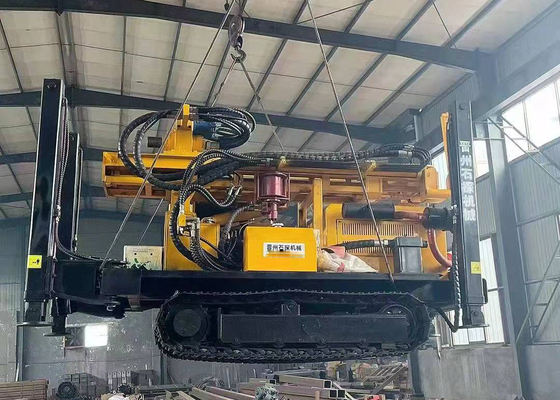

Borehole Crawler Drilling Rig Fast Speed Customized Steel ST350 Pneumatic Drilling Rig

Large Image : Borehole Crawler Drilling Rig Fast Speed Customized Steel ST350 Pneumatic Drilling Rig

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-350

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Pneumatic Drilling Rig	Model:	ST 350 Drilling Rig
Machine Type:	Drilling Equipment	Hole Diameter:	Customized
Drilling Depths:	350meters	Weight:	8.9 T
Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm	Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min
After Sale Service:	Video Support	Color:	Yellow,blue ,red
Highlight:	borehole crawler drilling rig , 350m crawler drilling rig , borehole pneumatic drilling rig

ST 350 Pneumatic Drilling Rig

Product Overview

The ST 350 water well drilling rig is designed for industrial and civil drilling applications, including geothermal drilling. Its compact structure, fast advancing speed, and mobility make it ideal for water intake in mountainous and rocky terrains, as well as for engineering geological surveys in construction, railway, hydropower, and bridge projects.

Key Specifications

Attribute	Value
Model	ST 350 Drilling Rig
Power Type	Diesel
Drilling Depth	350 meters
Drilling Diameter	152mm-305mm (Customizable)
Rotation Torque	7500Nm, 983 N.m, 4200N.m
Air Consumption	13-30 m³/min
Dimensions (L×W×H)	6400mm × 2250mm × 2700mm
Weight	8.9 Tons
Certification	ISO9000

Technical Advantages

The ST 350 effectively solves drilling challenges in various strata, combining the efficiency of air DTH hammer in hard rock layers with water drilling mud effectiveness in soil layers. Its versatility makes it suitable for geological exploration, core drilling, and complex formations, representing the future of water well drilling equipment.

Operational Guidelines

Operators must complete technical training and understand equipment principles before operation
Proper safety gear including helmets must be worn at all times
Equipment must be moved to safe distance and protected during blasting operations
Thorough inspection required after blasting operations
Working on slide frame prohibited during strong winds (>6) or freezing conditions

Product Images
