Groundwater Pneumatic Drilling Rig Large Industrial St 260m Deep

Large Image : Groundwater Pneumatic Drilling Rig Large Industrial St 260m Deep

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST 260

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	25000-30000 USD
Packaging Details:	Wooden case (bare)
Delivery Time:	5-8days
Payment Terms:	T/T, Western Union
Supply Ability:	1000/month

Contact Now

Detailed Product Description

Product Name:	Pneumatic Drilling Rig	Drilling Diameter:	105-260mm
After-sales Service Provided:	Water Well Drilling Rig	Warranty:	1 Year
Power Type:	Diesel	Color:	Yellow
Weight:	6T	Rotary Head Storke:	3.4m-6.0m
Rated Power:	55-132KW	Optional Accessories:	70KW
Weight Of The Rig:	4m×1.7m×2.2m	Air Pressure:	16-55m³/min
Highlight:	260m deep pneumatic drill rig , groundwater pneumatic drilling rig , 260m deep pneumatic drilling rig

Groundwater Pneumatic Drilling Rig Large Industrial St 260m Deep

Product Specifications

Attribute	Value
Product Name	Pneumatic Drilling Rig
Drilling diameter	105-260mm
After-sales service	Water Well Drilling Rig
Warranty	1 Year
Power type	Diesel
Color	Yellow
Weight	6T
Rotary Head Stroke	3.4m-6.0m
Rated Power	55-132KW
Optional accessories	70KW
Dimensions	4m×1.7m×2.2m
Air pressure	16-55m³/min

ST 260 Pneumatic Drilling Rig Overview

This high-performance drilling rig features a Yunnei 76KW diesel engine, RC40/40/20 high-flow triple hydraulic pump, and BM5-315 high-torque hydraulic motor for superior drilling capability.

Technical Specifications

Drilling Depth	260m
Hole Diameter	φ105-260mm
Advance Length per cycle	6.6m
Working pressure	1.7-3.0MPa
Air consumption	17-35m³/min
Rod Length Options	1.5m, 2m, 3m, 6m
Rod Diameter Options	φ76, φ89, φ102, φ114
Lifting power	24T
Rotation torque	8500-11000N.m
Rotation Speed	40-70r/min
Diesel Engine	Yuchai 85Kw/2200rpm
Travelling speed	0-2.5 Km/h
Climb capacity	30°
Weight	9000kgs
Dimensions	5900x2000x2850mm

Key Features

High-power engine for superior performance
Durable walking motor with gear box for extended lifespan
Parallel gearbox design with separate oil pump units for efficient power distribution
One-piece cast gearbox with dual motors for high torque and durability
Professional excavator chassis with wide chain plate for minimal road damage
Patented composite boom design with double cylinder lifting system
Safety stoppers on lifting boom for operator protection
Hydraulic oil pipes with protective jackets for extended service life

Applications

Our water well drilling rigs are designed for challenging geological conditions including rock, mud, and sand. Suitable for both top drive hydraulic rotary propulsion and DTH drilling methods, these rigs are ideal for construction, mining, and engineering applications. Available in various configurations to meet specific project requirements.

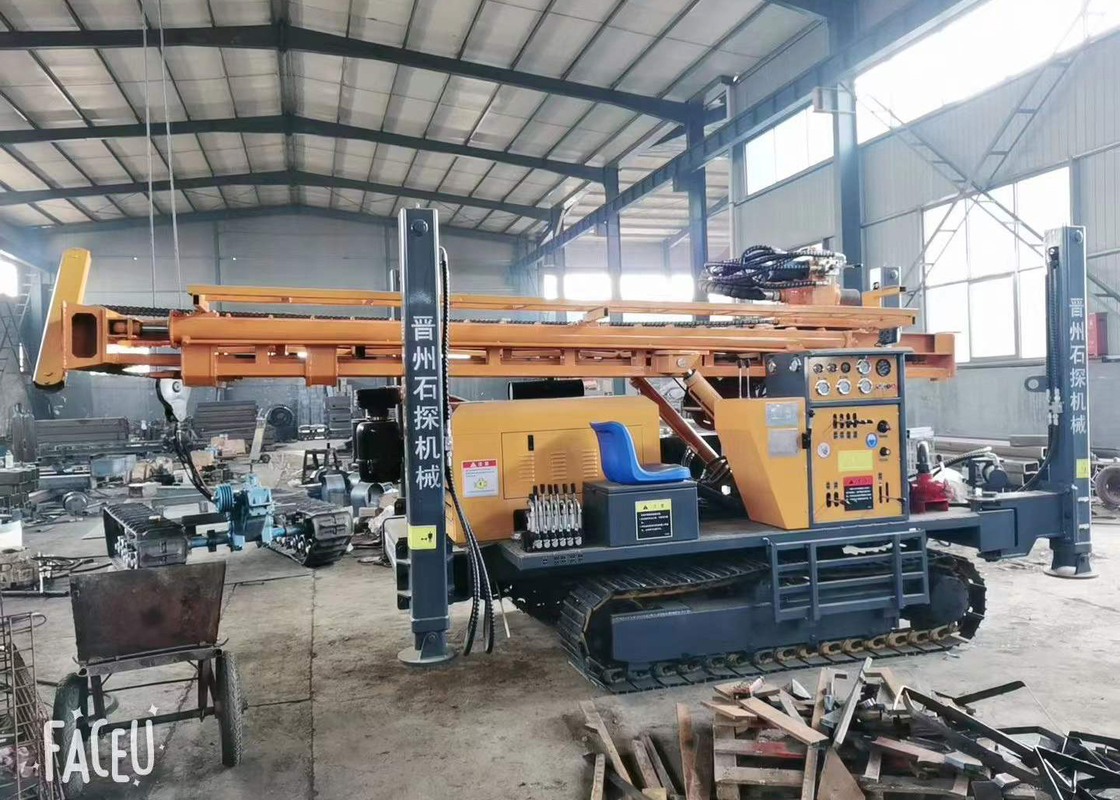

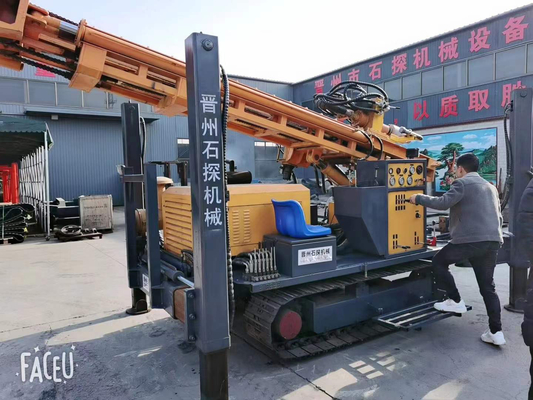

Product Images
