Farming Irrigation Water Well Drilling Rig,ST 30 Geological Drilling Machine

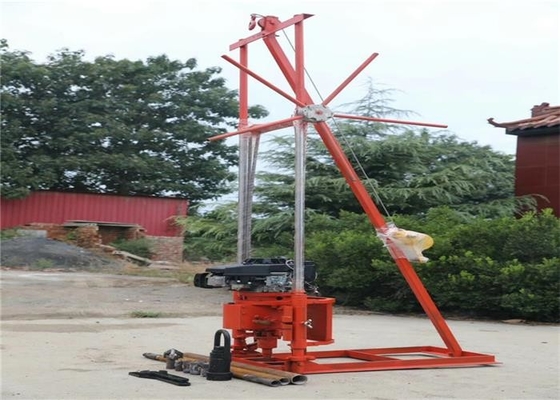

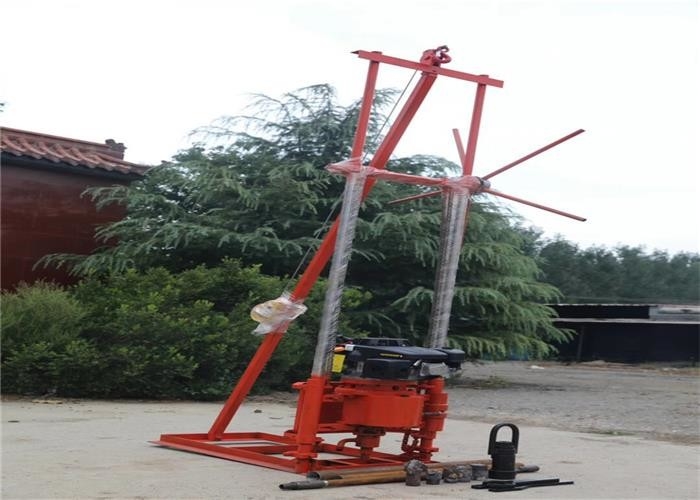

ST 30 Geological Drilling Rigs Machine Introduction
ST 30 hydraulic portable drilling rig is a small portable oil pressure feeding drilling machine, which is mainly used for general survey exploration, geophysical exploration, road and construction, blasting hole drilling and other drilling projects, shallow oil, natural gas and groundwater drilling, as well as embankment grouting, tunnel ventilation, drainage and other engineering drilling. It has a rated drilling depth of 30m, an allowable opening diameter of 89mm and a final hole diameter of 75mm.
ST 30 Geological Drilling Rigs Machine Technical Data
| Hole Diameter (mm) |
110
soil condition
|
91 |
75 |
60 |
46 |
| Drilling Depth(m) |
5~10 |
10~15 |
15~20 |
20~25 |
30 |
| Hole Diameter(mm) |
30 |
| output speed(r/min) |
200~570 |
| Torque |
130N·m |
| Motor |
model 1P75FA power:4.5KW speed:2000-3600r/min |
|
Size
|
600×650×2330mm |
|
Total Weight
|
95kg |
ST 30 Geological Drilling Rigs Machine Advantages:
1.Hydraulic cylinder,high efficiency.
2.Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.
3.Pressure gauge display the condition of the bottom of the drill hole.
4.Diesel engine with electric starter,convenient and reduce the labor itensity.
ST 30 Geological Drilling Rigs Machine Application:
It is a kind of light and multi-purpose micro-engineering rig which is suitable for geological survey, geophysical prospecting, advanced drilling, grouting, embedding and so on in industrial and civil construction, bridges, railways, highways, hydropower and other industries. Pieces of holes, playing blasting holes, check holes, small household wells and so on.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
