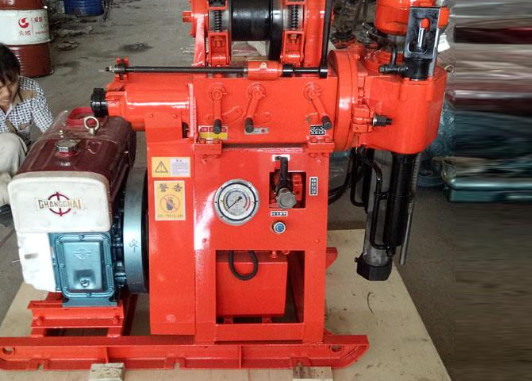

Fast Speed Gk 200 Geotech Drill Rig In Sample Collection

Large Image : Fast Speed Gk 200 Geotech Drill Rig In Sample Collection

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	GK 200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	GK Geological Drilling Rig Machine	Color:	Red Yellow
Feature:	High Drilling Efficiency	Usage:	Water Well,exploration
Application:	Water Well Drilling	Power Type:	Diesel
Drilling Depth:	200 Meters	Warranty:	1 Year
Voltage:	220V/380V	Length Of Drill Pipe(mm):	3m
Condition:	New	Hole Diameter:	200 Mm
Highlight:	200m engineering drilling rig , 220v engineering drilling rig , soil sample collecting engineering drilling rig

GK 200 Fast Speed Geotech Drill Rig for Sample Collection

Product Overview

The GK 200 Geological Drilling Rig Machine is a high-efficiency drilling solution featuring hydraulic feeding, large power capacity, and superior lifting force (2T). Designed for professional sample collection and water well drilling applications.

Key Specifications

Attribute	Value
Product Name	GK Geological Drilling Rig Machine
Color	Red Yellow
Power Type	Diesel
Drilling Depth	200 meters
Hole Diameter	200 mm
Drill Pipe Length	3m
Voltage	220V/380V
Warranty	1 Year

Technical Specifications

Maximum open hole caliber	300mm
End hole caliber	75mm
Drill rod caliber	60mm
Drilling angle	90°~75°
Drill weight (excluding power)	975kg
Unit dimensions	1433×697×1273mm
Spindle speed	64, 128, 287, 557r/min
Spindle stroke	450mm
Max single line hoisting capacity	2400kg

Key Features

Oil pressure feeding mechanism for precise control
Large rotary torque and opening diameter capability
Double guide rod system with active drill pipe
Hexagonal active drill pipe with upper ball clamping mechanism
Hole bottom pressure gauge for real-time monitoring
Centralized operation handle for user convenience

Applications

Ideal for various professional applications including:

Water well drilling and exploration
Railway, hydropower, and transportation projects
Bridge and dam foundation construction
Geological core drilling
Small grouting operations

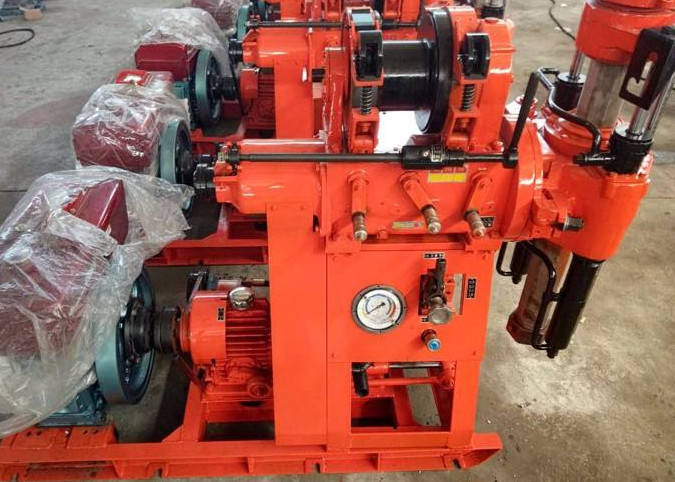

Product Gallery
