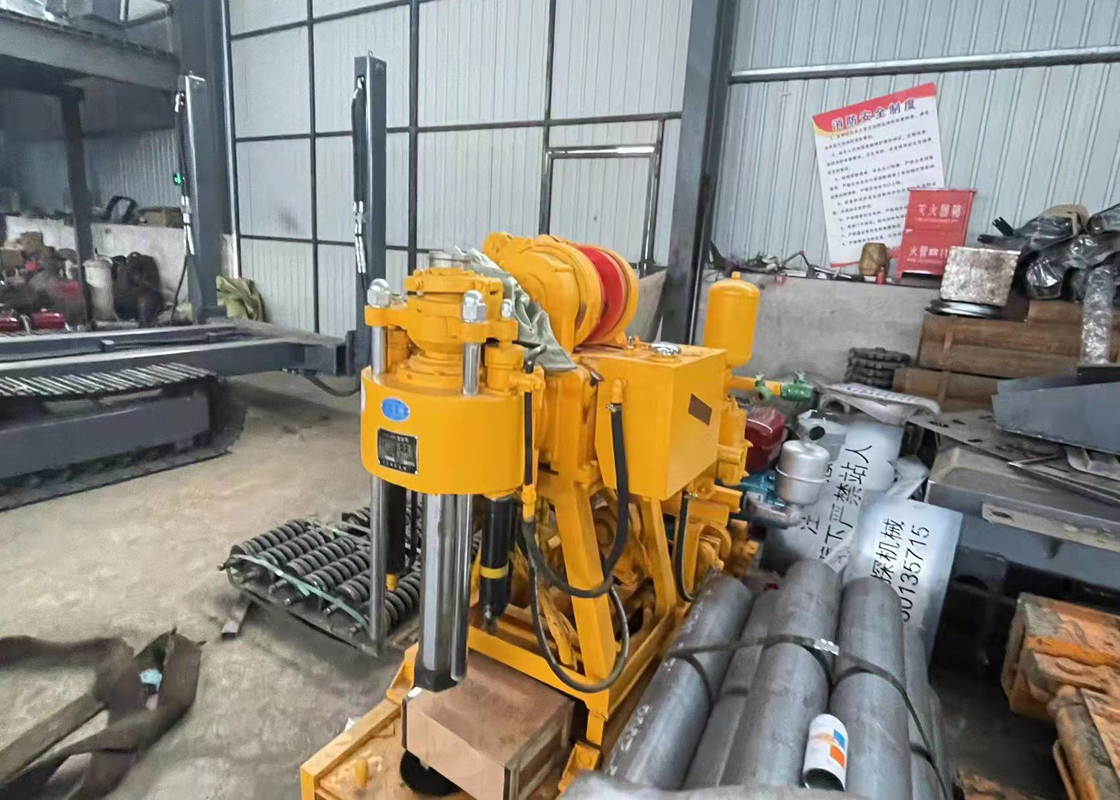

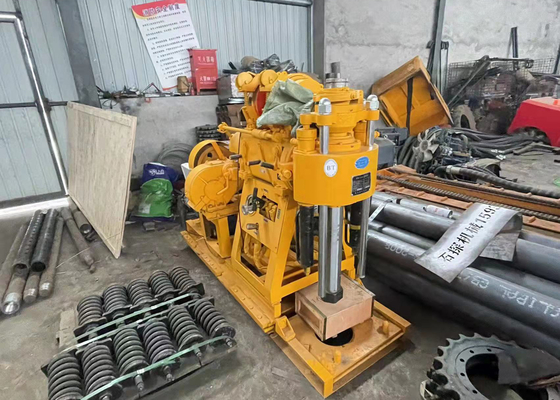

200m With Crawler Chassis For Multiple Usage In Mining Irrigation Engineering Drilling Rig
GK200 Brief introduction of drilling rig
GK200 Brief introduction of drilling rig It is suitable for core work projects in difficult terrain such as mountains, hills, rivers, and moving. It is suitable for engineering geological survey of railways, hydropower, transportation, bridges, dam foundations and other buildings; geological core drilling, physics
GK200 Hydraulic Portable 200m Water Well Drilling Machine
| Drilling depth |
200m |
| Open hole diameter |
75-300mm |
| End hole diameter |
75mm |
| Active drill rod |
53/59*4200mm |
| Rod diameter |
50,60mm |
| Drill angle |
90°-75° |
| Matched power(diesel power) |
15kw/2200r/min |
| Dimension |
2800*950*1700mm |
GK200 Engineering Drilling Rig Applications:
1. Drillings for the general exploration and investigation of solid mineral deposit, engineering geotectonic survey and concrete
structure inspection holes.
2.Diamond drill bit, alloy drill bit and steel roller drill bit and so on are available for drilling according to different
geological structures.
3.When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum
of depth may not exceed 110% of that drilled in each hole. The maximum allowable hole diameter is 150 mm.
Engineering Drilling Rig Features:
1.With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
2.The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without
shutdown, high efficiency, safe and reliable.
3. A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole.
4.Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
