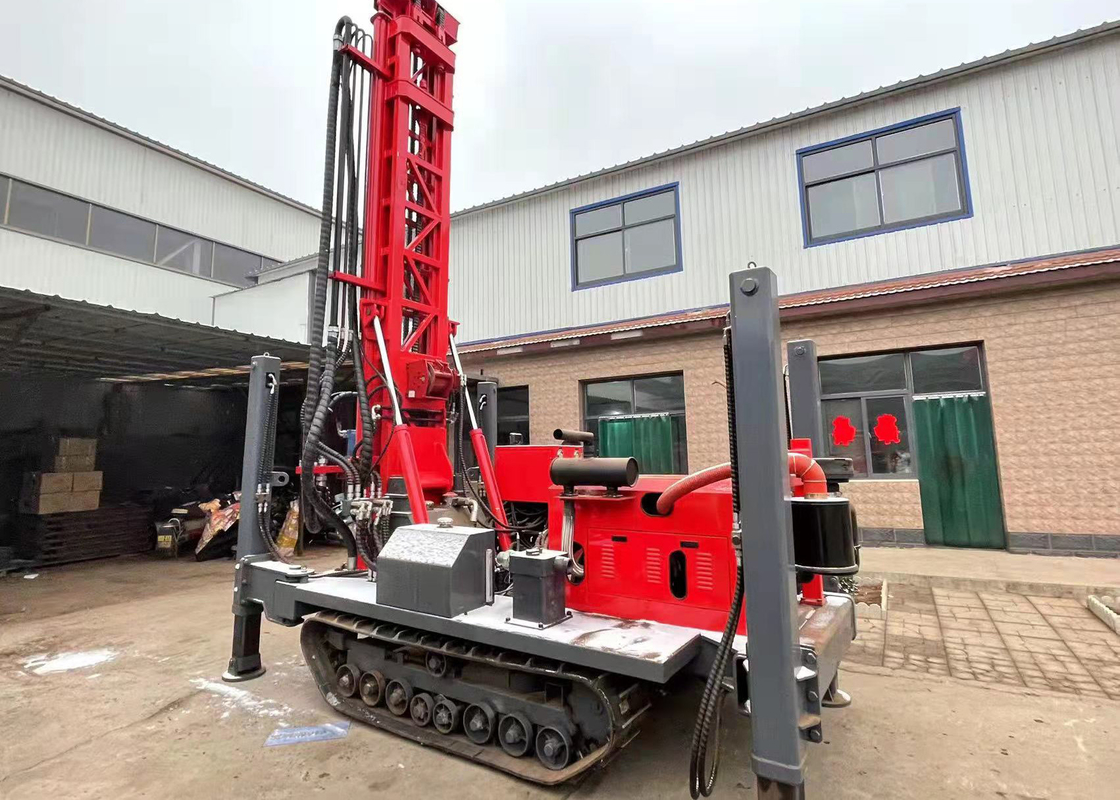

St 180 Borehole Heavy Drilling Machine Large Pneumatic

St 180 Borehole Heavy Drilling Machine Large Pneumatic
St 180 Borehole Heavy Drilling Machine Large Pneumatic
video play

Large Image :  St 180 Borehole Heavy Drilling Machine Large Pneumatic

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST 180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 50000 sets per year
Contact Now
Detailed Product Description
Product Name: Water Well Drilling Rig Color: Red Yellow
Feature: High Drilling Efficiency Usage: Water Well,exploration,soil Testing
Application: Water Well Drilling Power Type: Diesel
Drilling Depth: 180 Meters Warranty: 1 Year
Voltage: 220V/380V Length Of Drill Pipe(mm): 3m
Condition: New Drilling Depths: 180 Meters
Highlight:

180m borehole drilling equipment

,

large pneumatic borehole drilling equipment

,

180m depth water well drilling rig

ST 180 Borehole Heavy Drilling Machine Large Pneumatic
Product Specifications
Attribute Value
Product Name Water Well Drilling Rig
Color Red Yellow
Feature High Drilling Efficiency
Usage Water Well, exploration, soil testing
Application Water Well drilling
Power Type Diesel
Drilling depth 180 meters
Warranty 1 Year
Voltage 220V/380V
Length of drill pipe 3m
Condition New
Product Description

The ST180 Water Well Drilling Rig is a multifunctional hydraulic driller designed for high efficiency and energy savings. It is primarily used for digging water wells, monitoring wells, geothermal air-conditioner holes, and anchoring holes, particularly in groundwater exploitation projects.

Technical Specifications
Drilling Rig Name ST180 Drilling Machine
Drilling hole diameter 140-254mm
Drilling depth 180m
One-time advance length 3.3m
Walking speed 2.5km/h
Climbing angles (Max.) 30°
Equipped capacitor 55kw
Using air pressure 1.7-2.5mpa
Air consumption 17-31m³/min
Drill pipe length 1.5m, 2.0m, 3.0m
Drill pipe diameter 76mm, 89mm
Rig lifting force 12t
Swing speed 45-65rpm
Swing torque 3200-4600(N.m)
Dimension 3800*1500*2200mm
Weight 4500kg
Operation & Usage

This pneumatic water well drilling machine must be used with an air compressor and can be equipped with a mud pump and foam pump. Different drilling tools such as drill rods, hammers, and rock drill bits are required for operation.

Frequently Asked Questions
Q1: Are you factory or trade company?
A1: We are factory.
Q2: What the exactly address of your factory?
A2: Our company is located in Jinzhou, Shijiazhuang, Hebei, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your requirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T before shipment
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25 days.

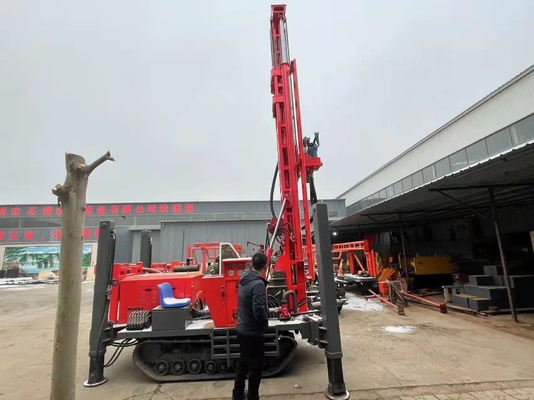

Product Images
St 180 Borehole Heavy Drilling Machine Large Pneumatic 0 St 180 Borehole Heavy Drilling Machine Large Pneumatic 1 St 180 Borehole Heavy Drilling Machine Large Pneumatic 2 St 180 Borehole Heavy Drilling Machine Large Pneumatic 3 St 180 Borehole Heavy Drilling Machine Large Pneumatic 4 St 180 Borehole Heavy Drilling Machine Large Pneumatic 5 St 180 Borehole Heavy Drilling Machine Large Pneumatic 6 St 180 Borehole Heavy Drilling Machine Large Pneumatic 7

Tag:

hydraulic water well drilling machine,

water borehole drilling equipment,

water well borehole drilling rig
