Small Household ST260 Pneumatic Drill Rigs In Water Well

Large Image : Small Household ST260 Pneumatic Drill Rigs In Water Well

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST260

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Wooden case (bare)
Delivery Time:	5-8days
Payment Terms:	L/C, D/P, D/P, T/T, Western Union
Supply Ability:	1000/month

Contact Now

Detailed Product Description

Drilling Depth:	260	Drilling Diameter:	105-260mm
After-sales Service Provided:	Water Well Drilling Rig	Warranty:	1 Year
Power Type:	Diesel	Color:	Yellow
Weight:	6T	Rotary Head Storke:	3.4m-6.0m
Rated Power:	55-132KW	Weight Of The Rig:	4m×1.7m×2.2m
Highlight:	260m pneumatic drill rigs , water well household pneumatic drill rigs , 260m pneumatic drilling rig

Small Household ST260 Pneumatic Drill Rigs In Water Well

Product Specifications

Attribute	Value
Drilling depth	260m
Drilling diameter	105-260mm
After-sales service	Water Well Drilling Rig
Warranty	1 Year
Power type	Diesel
Color	Yellow
Weight	6T
Rotary Head Stroke	3.4m-6.0m
Rated Power	55-132KW
Dimensions	4m×1.7m×2.2m

Product Overview

The ST260 Water Well Drilling Rig is a compact, high-efficiency pneumatic drilling solution designed for household and small-scale water well applications. Featuring full hydraulic control and top drive rotation, this rig delivers exceptional drilling performance in various geological conditions.

Key Features

Full hydraulic control system for precise operation
Top drive rotation mechanism for high drilling efficiency
Tractor-mounted or full ground chassis for excellent mobility
Suitable for various applications including hydrology wells, coalbed methane, and shallow shale gas exploration

Technical Parameters

Drilling Depth	260m
Hole Diameter	φ105-260mm
Advance Length per Cycle	6.6m
Working Pressure	1.7-3.0MPa
Air Consumption	17-35m³/min
Rod Length Options	1.5m, 2m, 3m, 6m
Rod Diameter Options	φ76, φ89, φ102, φ114
Lifting Power	24T
Rotation Torque	8500-11000N.m
Rotation Speed	40-70r/min
Diesel Engine	Yuchai
Engine Power	85Kw/2200rpm
Weight	9000kgs
Dimensions	5900x2000x2850mm

Performance Characteristics

Mature hydraulic top drive power head with large bearing capacity and excellent sealing
Adjustable telescopic drill collar for long casing construction
Optimized hydraulic matching technology for high system efficiency
Visualized pressurize/decompression feed system for precise drilling pressure adjustment
Four hydraulic supporting legs for rapid leveling without lifting
Swing-type centering device providing ample working space

Frequently Asked Questions

What kind of drilling rigs do you manufacture?

We specialize in small hydraulic drilling rigs, water well drilling rigs, core drilling rigs, and engineering/geological exploration drilling rigs. Our team will recommend the most suitable model based on your specific requirements.

Where is your company located?

Our manufacturing facility is located in Jinzhou, Shijiazhuang City, Hebei Province, China.

Are you a manufacturer or trading company?

We are a professional manufacturer with 20 years of experience and ISO certification, operating a modern drilling rig plant in Hebei, China.

What is your delivery time?

Small hydraulic drilling rigs typically ship in 5-7 days, while larger pneumatic water well drilling rigs require 7-15 days. Please contact our sales team for urgent orders.

What is your warranty policy?

The entire machine comes with a 1-year warranty (excluding consumable spare parts).

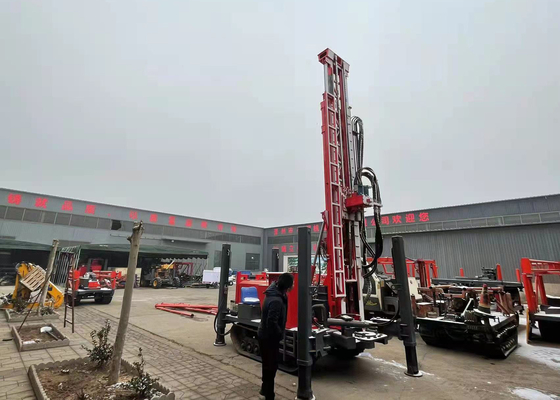

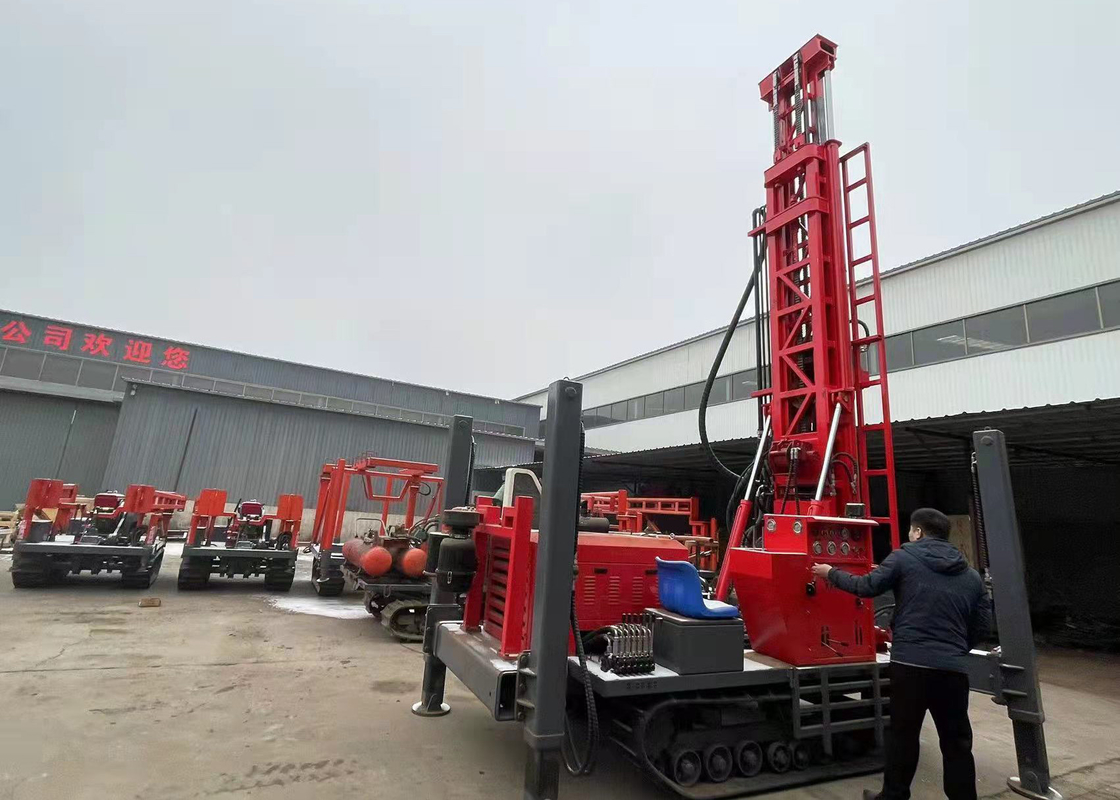

Product Images
