180m Deep St180 Pneumatic Drilling Rig Crawler Type Small Hydraulic For Water Well

Large Image : 180m Deep St180 Pneumatic Drilling Rig Crawler Type Small Hydraulic For Water Well

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST180

Payment & Shipping Terms:

Minimum Order Quantity:	1sets
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	L/C,D/A,T/T,Western Union

Contact Now

Detailed Product Description

Type:	Hydraulic Crawler Drilling Rig	Feature:	High Drilling Efficiency
Usage:	Water Well	Drilling Depth:	180
Drilling Angle:	90° ~75°	Voltage:	220V/380V
Product Name:	Water Well Drilling Rig,300m Borehole Drilling Machine /water Well Drilling Rig For Sale,200m Pneumatic Tractor Mounted Water Well Drilling Rig Machine Price	Engine:	Diesel Engine
After-sales Service Provided:	Video Technical Support,Engineers Available To Service Machinery Overseas	Air Consumption:	16-30m3/min
Highlight:	water well crawler pneumatic drilling rig , 180m deep pneumatic drilling rig , 180m deep pneumatic rig

180m Deep ST180 Pneumatic Drilling Rig Crawler Type Small Hydraulic Water Well Drilling Machine

Product Specifications

Type	Hydraulic crawler drilling rig
Feature	High Drilling Efficiency
Usage	Water Well
Drilling Depth	180m
Drilling Angle	90° ~75°
Voltage	220V/380V
Engine	Diesel engine
Air Consumption	16-30m³/min
After-sales Service	Video technical support, Engineers available to service machinery overseas

Product Overview

The ST180 Water Well Drilling Rig is a lightweight, high-efficiency, multifunctional drilling equipment featuring advanced hydraulic technology. Designed for water wells, irrigation systems, geothermal applications, and other borehole needs, it excels in mountainous terrain and rock layers.

The rig incorporates a hydraulic motor rotation system and large bore hydraulic cylinders to reduce labor requirements, minimize downtime, and enhance construction efficiency and project quality.

Technical Parameters

Model	ST-180
Working Wind Pressure (Mpa)	17-31
Weight	4,500kg
Hole Diameter (mm)	Φ76
Effective Drilling Depth (m)	180
Feeding Stroke (mm)	3,000
Drill Pipe Length (mm)	3,000
Maximum Hoist Capacity (N)	35,000
Climb Ability (°)	30
Walking Speed (km/h)	1-3
Rotating Speed (r/min)	0-96
Rotating Torque (N.m)	2,100

Key Features

Guangxi Yuchai 70Kw turbocharged engine for reliable power
Durable walking motor reducer box for extended service life
Patented parallel gearbox design with efficient hydraulic oil pump
Integrated casting gearbox power head with dual motor capability
Professional excavator chassis with high weight capacity
Patent-designed composite big arm with double cylinder lifting
Safety limiters on all drill hoist arms
Protective sleeves on all hydraulic tubing

Operational Advantages

Rotary engine with sliding shelves for automatic translation
Manual reversing valve controls two hydraulic motors for strong torque
Large stroke hydraulic supporting legs for easy transportation
Hydraulic leveling system for rapid setup
Multiple engine options available (Commins, Deutz, Benz, etc.)
Duplex operating valve structure with two-speed control

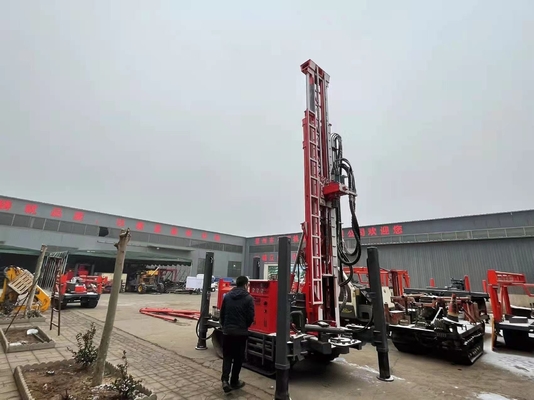

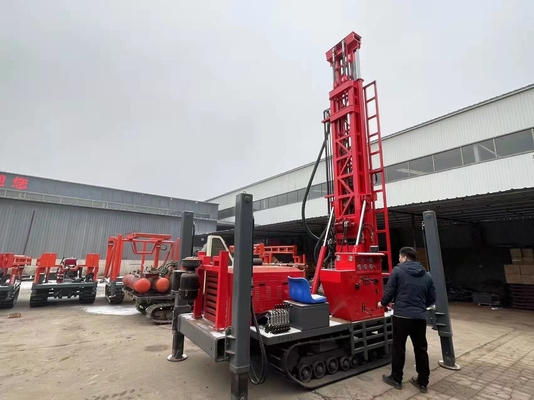

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
