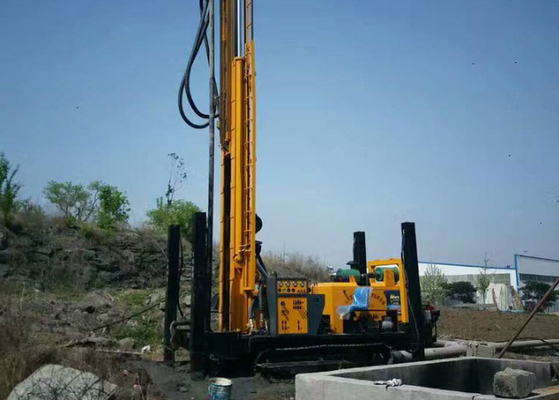

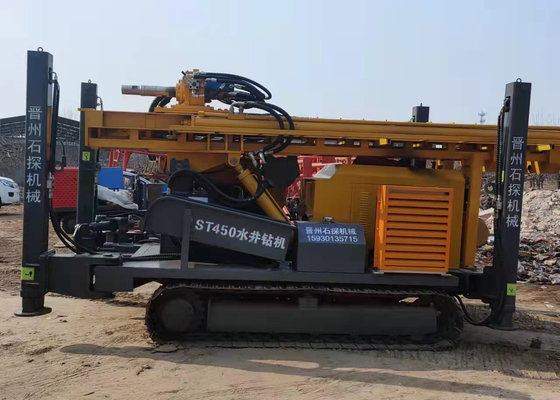

St350 Water Well Drilling Rig Crawler Type Full Hydraulic 350m Deep

St350 Water Well Drilling Rig Crawler Type Full Hydraulic 350m Deep
St350 Water Well Drilling Rig Crawler Type Full Hydraulic 350m Deep St350 Water Well Drilling Rig Crawler Type Full Hydraulic 350m Deep

Large Image :  St350 Water Well Drilling Rig Crawler Type Full Hydraulic 350m Deep

Product Details:
Place of Origin: China
Brand Name: SHITAN
Certification: ISO
Model Number: ST350
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: A detailed discussion
Packaging Details: Wooden case or naked
Delivery Time: 5-8days
Payment Terms: L/C, D/P, D/P, T/T, Western Union
Supply Ability: 100000/yes
Detailed Product Description
Type: Crawler Mounted Drill Rig Drilling Depth: 350M
Application: Drilling Well,hammer For Drills Air Pressure: 1.25-3.5Mpa
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
Weight: 9800KG Power: 92Kw
Color: Yellow Drilling Diameter: 75-325mm
High Light:

350m deep water well drilling rig

,

hydraulic crawler water well drilling rig

,

350m deep hydraulic well drilling rig

ST350 Crawler Type Full Hydraulic Drilling Rig Capable Of Drilling 350m Deep Water Well Drilling Rig





Machine introduction of water well drilling rig



ST350 Series Water Well Drilling Rig is a light, efficient and versatile drilling equipment powered by diesel engine which is from China famous brand. It is mainly suitable for drilling wells, agricultural irrigation wells and other uses, especially for water extraction in mountainous and rock formations engineering.

In addition,this series of drilling rigs using new hydraulic technology which is equipped with large-bore hydraulic cylinder advancement and high-torque hydraulic motor rotation.



Parameters of 350 water well drilling rig


Technical Parameters of ST300  water well drilling rig
type ST350
The weight 9.8T
Dimension

6m×2m×2.5m

The hole diameter

105-305mm

Drilling depth 350m
One-time advance length 6m
Walking speed 2.5KM/H
Climbing angles 30
Power 92KW
Using air pressure 1.7-3.3MPA
Air consumption 17-35
Drill pipe length 1.5m 2.0m 3.0m 6.0m
Drill pipe diameter 89mm,102mm,
Rig lifting force 20T
Swing speed 55-115rpm
Swing torque 6200-85000N.m



Drilling rig components


The main drilling method of the drilling rig is rotary table - mud positive circulation drilling; If equipped with appropriate drilling tools, it can also adapt to other drilling tools
It can be drilled in clay, sand layer, bedrock and other strata. At the initial stage of opening, the pressure mechanism can be used to pressurize the drilling tool to realize
Pressurized drilling is used to improve the efficiency of shallow hole drilling. With the increase of hole depth, when the weight of drilling tool exceeds the pressure that needs to be added to the drilling tool, it can be implemented
Decompression drilling.
The drilling rig is equipped with a main winch, an auxiliary winch and a tool winch. The main winch is used to lift drilling tools and lower wells
Tube, etc. The auxiliary winch is used to drive the impact sampler or other coring tools and sand lifting cylinder, and can also be used for well washing operation. Tool winch
It is mainly used to lift and move a single vertical root, and can also be used to lift other tools to reduce physical labor.
The load distribution of the front and rear axles of the whole machine is reasonable, with good driving and off-road performance. Each core component has enough space for operation and maintenance,
It can be safely and conveniently maintained by operators. The whole machine has good wind and sand resistance and seismic performance, and can adapt to - 20 ° C-45 ° C
Operate at ambient temperature.
The main power components and hydraulic components of the machine are from regular and reliable manufacturers, and all oil seals and bearings are standard parts.


Packing and shipping about water well drilling rig

Packaging: General export packing or customized packaging according to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: 7-15working days after deposit.
