Xy-1a Construction Drilling Rig Diesel Hydraulic Core Engineering

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

Xy-1a Construction Drilling Rig Diesel Hydraulic Core Engineering

Xy-1a Construction Drilling Rig Diesel Hydraulic Core Engineering
Xy-1a Construction Drilling Rig Diesel Hydraulic Core Engineering
video play

Large Image :  Xy-1a Construction Drilling Rig Diesel Hydraulic Core Engineering

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: One hundred units a month
Detailed Product Description
Product Name: XY-1A Diesel Hydraulic Core Construction Engineering Drilling Rig Power Type: Diesel / 13.3kw
Model Number: XY-1A Drill Depth: 150m
Usage: Water Well Color: Yellow,Yellow Or As Your Rquest
Application: Geological Exploration Drilling Angle: 90 ~75°
Drilling Diameter: Customized Dimensions: 1100*600*500mm, 600*650*2330mm,
Warranty: 12 Months After-sales Service Provided: Video Technical Support
High Light:

xy-1a construction drilling rig

,

hydraulic diesel construction drilling rig

,

engineering drilling rig xy-1a

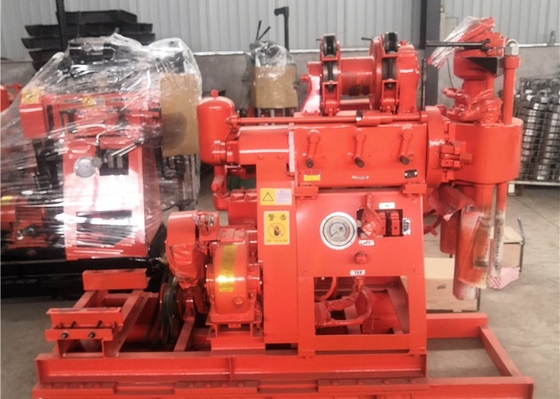

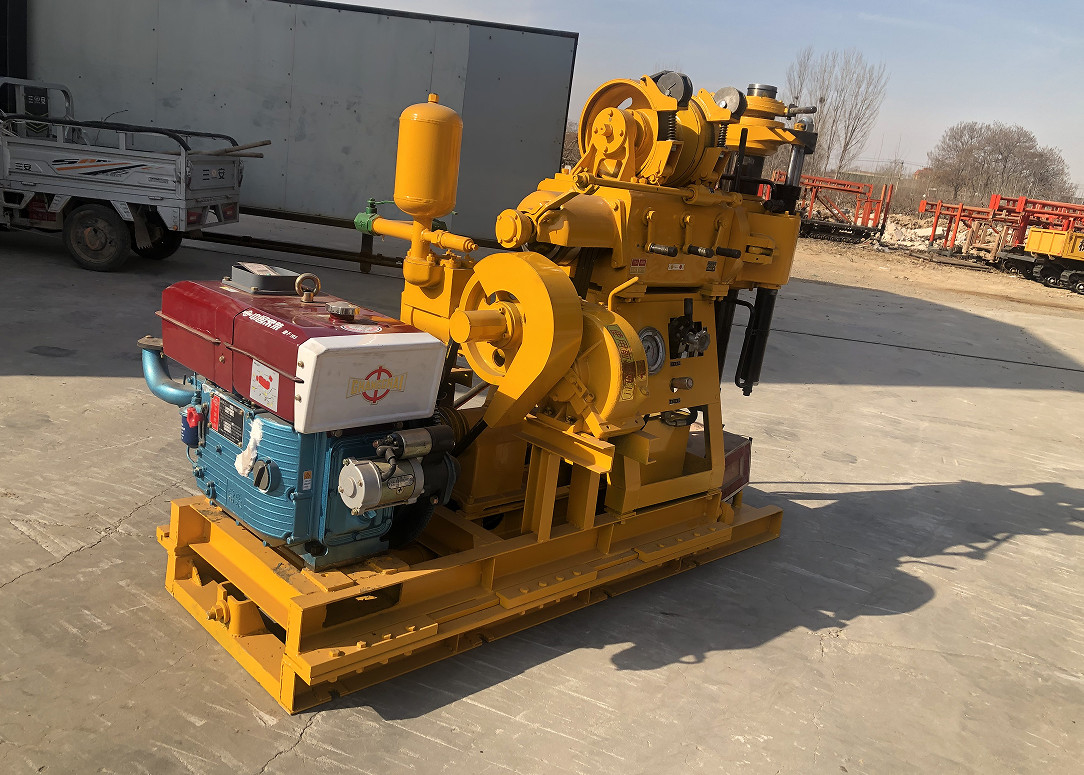

XY-1A Diesel Hydraulic Core Construction Engineering Drilling Rig





XY-1A  Engineering Drilling Rig Self Introduction



XY-1A Engineering Drilling Rig is mainly used for the general survey and engineering geological investigation of solid deposits, and various inspection holes of concrete structures



XY-1A Engineering Drilling Rig Technical ​Data



Drilling rig Drilling hole diameter mm 150
Drilling depth m 150
Drill pipe diameter mm 42
Borehole inclination ° 90°~75°
Rig dimension(L×B×H) mm 1640×1030×1440
Drill weight(except engine) kg 500

gyroscope
spindle speed(three block) r/min 142,285,570
spindle travel mm 450
max moving speed m/min 3
vertical max feed force KN 15
vertical max lift KN 25
windlass hoisting capacity(single speed rope) KN 10
drum speed r/min 55,110,220
drum circumferential velocity m/s 0.42,0.84,1.68
drum diameter mm 145
wire rope diameter mm 9.3
rope weight m 27
the diameter of the brake
mm 230
brake band width mm 50
water pump pump type horizontal single cylinder double acting
max displacement

L/min

95(77)
max allowable pressure
Mpa 1.2
working pressure Mpa 1.2
cylinder diameter mm 80
oil pump pump type gear pump
power KW 16.2
rated pressure Mpa 12.5
motor type YBC-12/125
displacement L/r 12
rated speed r/min 2000




XY-1A Engineering Drilling Rig​ Main Chrateristics



1 The oil pressure feeding mechanism can improve drilling efficiency and reduce the labor intensity.

2 The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability.

3 Hole pressure gauge indicates pressure which can be easy to grasp the situation inside the hole.

4 Handle concentration, easy operation.



How can a person change the drill pipe?



First, pinch one end of the locking handle with the cushion fork, pull a three meter drill pipe into the hole with the puller, remove the puller, close the closing box, pull down the operating handle of the drilling rig, and continue drilling. Is it easy?
