Rubber Crawler Mounted Drill Rig St200 Large For Industrial Drilling Works

Service Summary

Rubber Crawler Mounted ST200 Large Drilling Rig For Water Well Drilling and Industrial Drilling Works ST 200 Crawler Mounted Drill Rig Description They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for ...

Inquiry Now
Inquiry Now
Service Description

Rubber Crawler Mounted ST200 Large Drilling Rig For Water Well Drilling and Industrial Drilling Works





ST 200 Crawler Mounted Drill Rig Description



They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.



ST 200 Crawler Mounted Drill Rig Tech Parameter



ModelST 200
ConditionNew
TypeRotary Drilling Rig
Power TypeDiesel
OriginChina
Brand NameShitan
UsageWater Well Drilling
Dimension(L*W*H)6400MM*2250MM*2700MM
Weight5800KG
Certification
ISO9000
Warranty1 YEARS
Marketing TypeNew Product 2020
Drilling diameter90-152mm
Depth25M
Rotary speed0-90rpm
DTHK40
Drilling Rods76*2m+76*3m
Air consumption13-20m3/min
taavelling speed0-2.5km/h



ST 200 Crawler Mounted Drill Rig Advantages



The drilling machine adopts steel crawler chassis and has strong cross-country ability, Excellent mobility. The rig is equipped with large torque hydraulic motor and large bore hydraulic cylinder, especially suitable for water intake project in mountainous rock stratum. It has the advantages of large diameter, deep drilling, fast footage, flexibility and high efficiency.



How to run the casing after well water welling?



Before placing the well pipe, four steel pipes shall be used to make a well shaped device, and the steel wire rope shall be wound on the two steel pipes. If you want to go down quickly, it shall be wound twice. If you want to be stable, it shall be wound three times. Check whether the steel wire rope is knotted, bent, wound or burred. When placing the well pipe, the steel wire rope shall begin to bear each well pipe, Continuously superimposed weight load.





Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:

Pneumatic Drilling Rig / Air Drilling Rig(ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

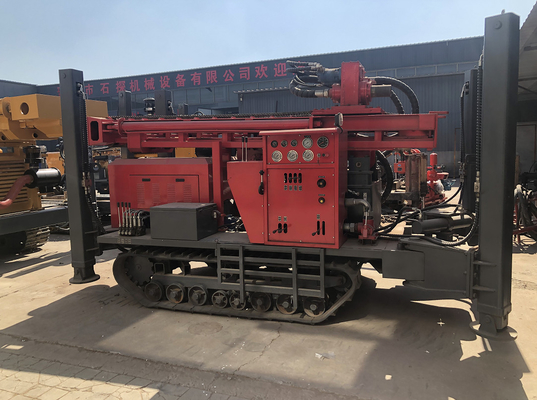

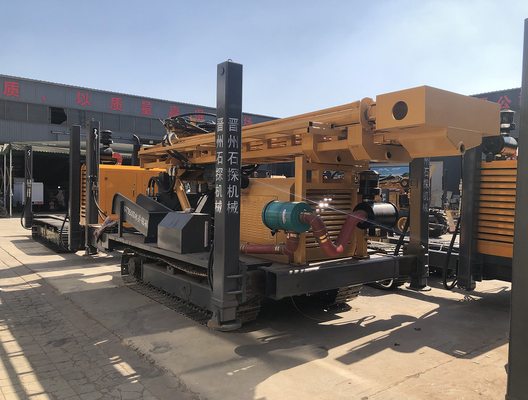

Rubber Crawler Mounted Drill Rig St200 Large For Industrial Drilling WorksRubber Crawler Mounted Drill Rig St200 Large For Industrial Drilling WorksRubber Crawler Mounted Drill Rig St200 Large For Industrial Drilling Works















Service Custom Attributes

Highlight

rubber crawler mounted drill rig

,

industrial works crawler mounted drill rig

,

200m crawler drill machine

Product Name:
Rubber Crawler Mounted ST200 Large Drilling Rig For Water Well Drilling And Industrial Drilling Works
Model Number:
Truck-mounted Drilling Rig,crawler Mounted Drilling Rigs
Machine Type:
Drilling Equipment
Certification:
ISO
Hole Diameter:
Customized
Drilling Depths:
200 Meters
Condition:
New
Weight:
8.9 T
Warranty:
12 Months
Rotation Torque:
7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption:
16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min
Air Compressor:
Kaishan Air Compressor
Mud Pump:
BW 250
