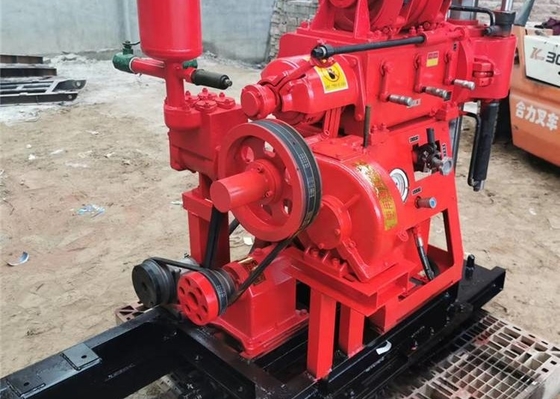

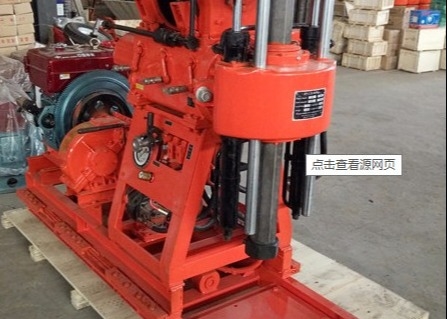

Multi Drilling Application Exploration Core Sample Collecting GK 200 Small Portable Engineering Drilling Rig





GK 200 Engineering Drilling Rig Introduction



The rig equipped with a ball on a cassette holding mechanism and a six driving drill pipe.double guide,the drilling rod can be replaced without shutdown ------------high efficient,convenient operation,safe and reliable



GK 200 Customized Engineering Drilling Rig Technical Data



Drill rig specification

Drilling depth

200m

Drilling Diameter

91mm,110mm,130mm,150mm,300mm

Drilling rod diameter

50mm

Drilling Angle

90°-75°

Dimensions(L×W×H)

1750×850×1300 (mm)

Weight

880kg/set

Swivel Head

Spindle Speed

115, 230, 505, 790, 1010 r/min

Spindle stroke

450mm

Spindle Dia.

Φ59mmx53mmx4350mm Kelly rod

Upward displacement speed of drilling vertical spindle

0.05m/s

Downward displacement speed of drilling vertical spindle

0.067m/s

Spindle pull-down max

15KN

Spindle lifting capacity max

25KN

Vertical maximum output torque

1.5KN.m

Hoist

Max. Lifting capacity(single rope)

20KN.m

Lifting rotating speed

20; 40; 90; 168r/min

Hoisting drum linear velocity (two levels)

0.17; 0.35; 0.73; 1.5m/s

Drum Diameter

140mm

Wire rope diameter

9.3mm

Wire rope capability

40m



GK 200 Customized Engineering Drilling Rig Features



 It has hydraulic feeding structure, drilling efficiency and reduce workers' labor intensity. The drilling rig is equipped with upper ball clamp clamping mechanism and hexagonal active drill pipe, which can reverse the rod without stopping, with high working efficiency, convenient and reliable operation. It is equipped with a hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole.The handle is centralized and easy to operate.The drilling rig has the advantages of compact structure, small volume, light weight, strong decomposition and easy relocation. The loading form is trailer type, crawler type and disassembly. It is suitable for working in plain or mountainous areas.



Method of installing core tube:



Buckle the lifter into the groove of the variable diameter joint, move the right handle of the winch to take the pad fork, take out the perforated pipe, install the core tube, lift the drilling tool to the top of the borehole, move the left handle of the winch continuously, and lower the drilling tool into the borehole at a uniform speed. When the groove of the variable diameter joint is close to the inlet, use the pad fork to block and remove the lifter.
