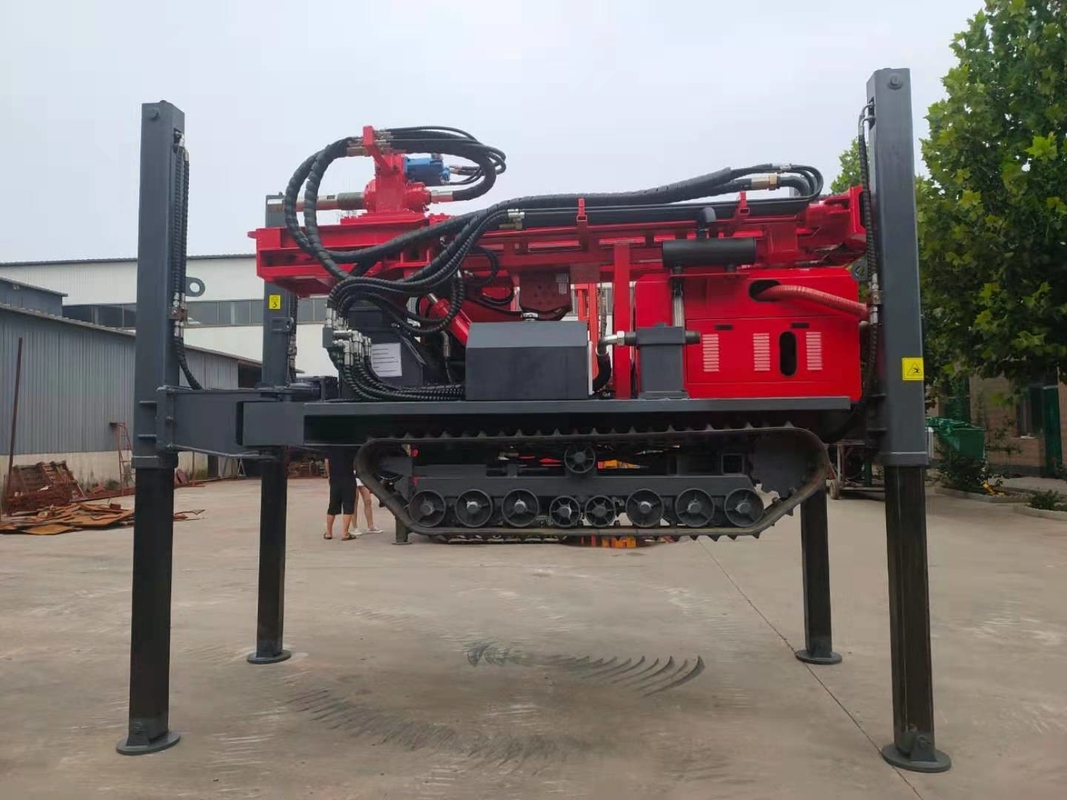

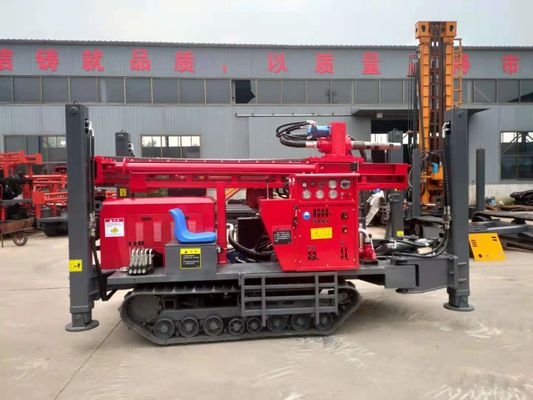

92kw 305mm Blasthole Crawler Mounted Drill Rig St350 For Water Well Drilling

Large Image : 92kw 305mm Blasthole Crawler Mounted Drill Rig St350 For Water Well Drilling

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST350

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Marketable
Packaging Details:	Wooden case or naked
Delivery Time:	7 days after payment
Payment Terms:	T/T, Western Union
Supply Ability:	10000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST350 Crawler Mounted Drill Rig	Application:	Drilling Well,hammer For Drills
Air Pressure:	1.25-3.5Mpa	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Warranty:	1 Year	Weight:	9800KG
Power:	92Kw	Usage:	Water Well
Hole Diameter:	140-305mm	Drill Rod Length:	1.5-6
Drilling Depth:	350M	Rod Length:	6M
Highlight:	blasthole crawler mounted drill rig , 350m crawler mounted drill rig , 350m crawler drill rig

92kw 305mm Blasthole Drilling ST350 Large Water Well Drilling Equipment Crawler Mounted Drill Rig

ST 350 High Speed Crawler Mounted Drill Rig Description

ST 350 drilling rig can drill work on different Geological formations, drilling hole diameter is larger, the max. hole depth of up to 350 meters. Unique deep hole axial compression adjustable system to Adjust impetus, deep hole drilling reduces the rotation resistance. Have two-stage telescopic /shrink carriage, use 6 m drill pipe, reducing the times of change drill pipe.

ST 350 Crawler Mounted Drill Rig Tech Information

ST350 water well drilling rig Crawler Mounted Drill Rig
Product Name	ST350
The weight	9.8T
Dimension	6m×2m×2.5m
The hole diameter	105-305mm
Drilling depth	350m
One-time advance length	6m
Walking speed	2.5KM/H
Climbing angles	30
Power	92KW
Using air pressure	1.7-3.3MPA
Air consumption	17-35
Drill pipe length	1.5m 2.0m 3.0m 6.0m
Drill pipe diameter	89mm,102mm,
Rig lifting force	20T
Swing speed	55-115rpm
Swing torque	6200-85000N.m

ST 350 Crawler Mounted Drilling Rig Characteristics

1, it is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well, agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratum water sourcing project.
2, This machine can drill in different stratum, The maximum bore diameter can be 350mm.
3, This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.
4,Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.

5,This machine adopts excavator crawler chassis and make the machine a high off-road performance, It also can be mounted on a truck to make it more maneuverability.
6, Two gears rotation and feeding speed makes it work in soil and rock layers.

What can we do for you?We support long term business partnership with high quality products and service!

Jinzhou City Shitan Machinery is a professional drilling rig factory in North China ,we can do OEM service uopn your exact demand depth and hole diameters with high quality and competitive price.Our main products are Pneumatic Borewell Machine, water well drilling rig,core drill rig,drilling bits,geological drillig machine,drilling mud pump ,soil test drilling machine,track transporter ect.
We have developed a whole-process and all-round after-sales service system, including equipment installation and debugging, maintenance, testing, operation training and spare parts supply.
