Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 | Product Name: | Engineering Drilling Rig |
|---|---|---|---|
| Hole Diameter: | Customized | Drilling Depth: | 50 Meters |
| Voltage: | 380v | Application: | Soil Testing Drilling Machine,Water Well Drilling ,Geological Exploration |
| OEM: | Acceptable | Power Type: | Diesel |
| Condition: | New | Warranty: | 1 Year |
| Weight: | 145kg | Diameter: | Customized |
| High Light: | customized exploration drilling rig,less depth exploration drilling rig,50m depth engineering drilling rig |
||

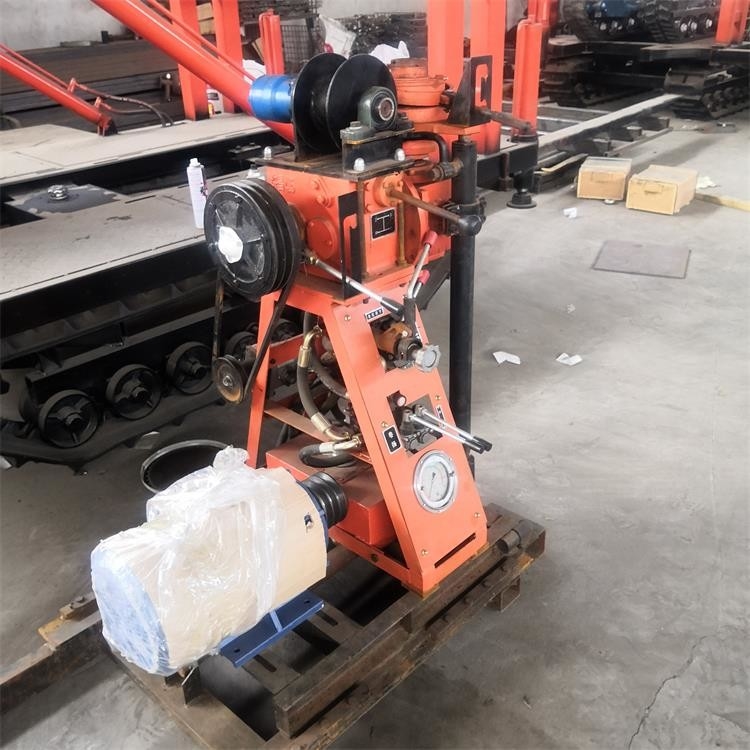

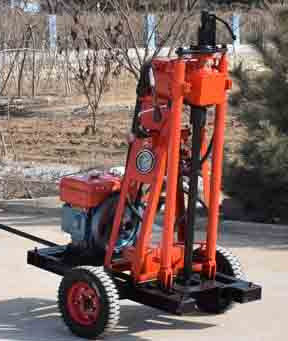

St 50 OEM Soil Testing With Wheels Drilling Equipment,Engineering Drilling Rig
ST 50 Engineering Drilling Rigs Description
ST 50 Engineering Drilling rig is a high, medium and low speed rig with hydraulic feed. Compared with other similar products, it has the advantages of light weight, simple structure, fast drilling speed, large diameter of coring sample, etc.
ST 50 Engineering Drilling Rig Technical Information
| Max Open hole Diameter: | 75-108mm |
| End hole Diameter | 56-75mm |
| Main drill pipe | 50/1000mm |
| Max Depth: | 50m |
| Diesel engine | 8hp/5.8kw Diesel engine 2200r/min |
| Drilling pipe length: | 1000mm |
| Drilling angle | 90° |
| Drilling pipe diameter: | 42mm |
| Vertical shaft | |
| Vertical shaft Speed | 285 570r/min |
| Vertical shaft Stroke | 1000mm |
| Lifting power | 300kgs |
| Additional pressure | 200kg |
| Mud pump | |
| Model | BW-50 |
| Flow | 50L/min |
| Max Pressure | 1.2MPA |
| Reciprocal time | 63times/min |
| Input-water pipe diameter | 55mm*2.5m |
| Output- high pressure water pipe diameter | 20mm*10m |
| Drilling machine overall dimension: | 1400*600*1600mm |
| Weight | 240kgs |
ST 50 Engineering Drilling Rigs Advantages:
It is a portable hydraulic drill in China at present. It is especially suitable for coring operations in special difficult terrain such as mountains, hills and rivers, and for engineering geological survey of buildings such as railways, hydropower, transportation, bridges and dam foundations; Geological core drilling and physical survey; Drilling of small grouting holes and blasting holes; Small well drilling.
How can we start drilling?
Fixed rig, fixed hoist, wire rope on the winch with u-shaped ring connection, start the engine, to start the hoist, wire rope around the drum, the tower pieces in vertical shaft hole Wire rope into within tower sheave, u-shaped ring wire rope end through the rig up and down round connection is good, according to hoist the right handle makes derrick rose slowly down,Erect tower rod, duplicate rod, four corner frame take out tower from vertical shaft hole and put well
