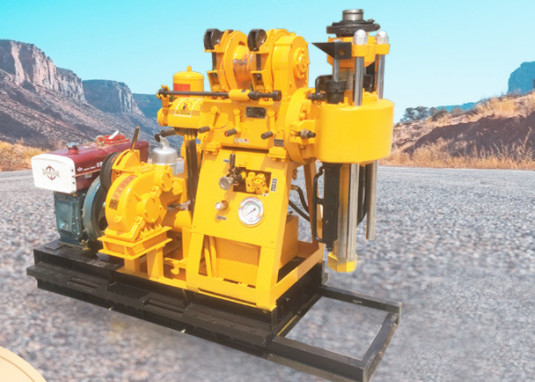

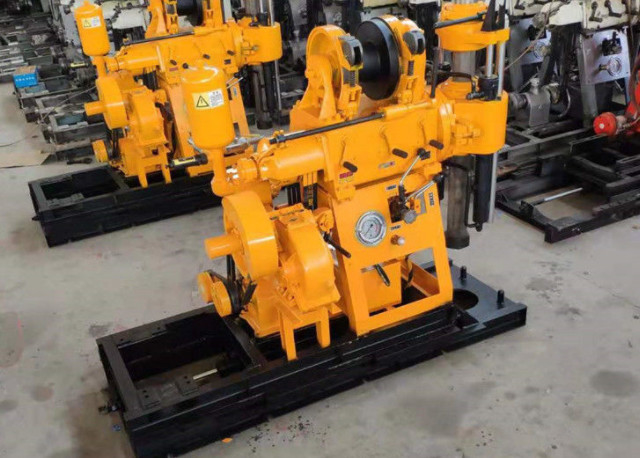

380v Diesel Engine Multi Engineering GK 200 Geological Drilling Rig
GK 200 Geological Drilling Rig Introduction
Gk-200-drilling machine is widely used and hydraulic feeding with large power, large lifting force (2T) and high transmission torque.
The drilling rig is a portable shallow hole drilling rig with oil pressure feed. It is suitable for general survey exploration, geophysical exploration, road and building exploration and small water well drilling.
GK 200 Geological Drilling Rig Data
|
Drilling depth
|
200m
|
|
Drilling Diameter
|
91mm,110mm,130mm,150mm,300mm
|
|
Drilling rod diameter
|
50mm
|
|
Drilling Angle
|
90°-75°
|
|
Dimensions(L×W×H)
|
1750×850×1300 (mm)
|
|
Weight
|
880kg/set
|
|
Swivel Head
|
|
Spindle Speed
|
115, 230, 505, 790, 1010 r/min
|
|
Spindle stroke
|
450mm
|
|
Spindle Dia.
|
Φ59mmx53mmx4350mm Kelly rod
|
|
Upward displacement speed of drilling vertical spindle
|
0.05m/s
|
|
Downward displacement speed of drilling vertical spindle
|
0.067m/s
|
|
Spindle pull-down max
|
15KN
|
|
Spindle lifting capacity max
|
25KN
|
|
Vertical maximum output torque
|
1.5KN.m
|
|
Hoist
|
|
Max. Lifting capacity(single rope)
|
20KN.m
|
|
Lifting rotating speed
|
20; 40; 90; 168r/min
|
|
Hoisting drum linear velocity (two levels)
|
0.17; 0.35; 0.73; 1.5m/s
|
|
Drum Diameter
|
140mm
|
|
Wire rope diameter
|
9.3mm
|
|
Wire rope capability
|
40m
|
GK 200 Geological Drilling Rig Features
1) hydraulic feeding structure, drilling efficiency and reduce workers' labor intensity.
(2) upper ball clamp clamping mechanism and hexagonal active drill pipe
(3) a hole bottom pressure gauge to indicate the pressure
(4) the handle is centralized and easy to operate.
(5) compact structure, small volume, light weight, strong decomposition and easy relocation.
FAQ GK 200 Geological Drilling Rig
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
The maintenance of well drilling rig
1. the bolts and nuts of water and gas pipelines and various accessories of the drilling rig are firm at any time
2. . Always check the lubricating oil condition of the wind motor
3. . When the working face is immersed in water, a large-diameter drill head shall be used to insert the drill pipe when opening the hole, so that the drill pipe is 1-2 meters above the water surface to prevent mud and rock slag from falling into the hole
