Detailed Product Description
Product Name: XY-1 A Geological Drilling Rig Power Type: Diesel / 13.3kw
Model Number: XY-1A Drill Depth: 150m
Usage: Water Well Color: Yellow,Yellow Or As Your Rquest
Application: Geological Exploration Drilling Angle: 90 ~75°
Drilling Diameter: Customized Dimensions: 1100*600*500mm, 600*650*2330mm,
Warranty: 12 Months After-sales Service Provided: Video Technical Support
High Light:

150 meters exploration drilling rig

,

civil lightweight exploration drilling rig

,

150 meters geological drilling rig

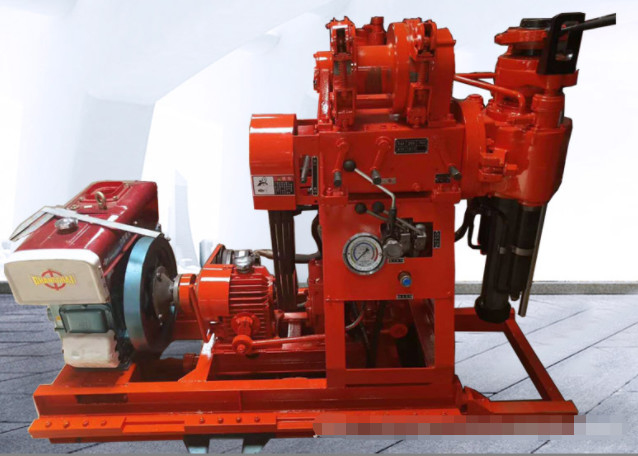

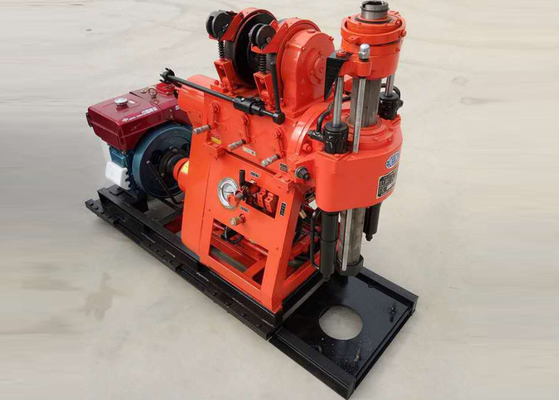

 150 Meters Lightweight Geological Drilling Rig Machine





XY-1A Engineering Drilling Rig Machine Introduction



Small drill rig widely used in drilling family wells, drilling industry wells and drilling survey geological sampling, SPT service etc. Drilling dia. will from 50-200mm or larger according to clients requirement.



XY-1A Engineering Drilling Rig Machine Parameter



Xy -1 A Drilling rig Drilling hole diameter mm 150
Drilling depth m 150
Drill pipe diameter mm 42
Borehole inclination ° 90°~75°
Rig dimension(L×B×H) mm 1640×1030×1440
Drill weight(except engine) kg 500

gyroscope
spindle speed(three block) r/min 142,285,570
spindle travel mm 450
max moving speed m/min 3
vertical max feed force KN 15
vertical max lift KN 25
windlass hoisting capacity(single speed rope) KN 10
drum speed r/min 55,110,220
drum circumferential velocity m/s 0.42,0.84,1.68
drum diameter mm 145
wire rope diameter mm 9.3
rope weight m 27
the diameter of the brake
mm 230
brake band width mm 50
water pump pump type horizontal single cylinder double acting
max displacement

L/min

95(77)
max allowable pressure
Mpa 1.2
working pressure Mpa 1.2
cylinder diameter mm 80
oil pump pump type gear pump
power KW 16.2
rated pressure Mpa 12.5
motor type YBC-12/125
displacement L/r 12
rated speed r/min 2000




XY-1A Engineering Drilling Rig Machine Advantage



1.When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum of depth my not exceed 110% of that drilled in each hole.The maximum allowable hole diameter is 150mm.

2.With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.

3.The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without shutdown, high efficiency, safe and reliable.

4.A hole bottom pressure gauge is mounted indicating the pressure in order to control the staus inside the hole 5.Compact structure, small volume, lightweight, high detachablity, easy transportation and suitable for the operations in plains or mountain areas.



 Installation of Coring Tubes



Buckle the lifter into the groove of the variable diameter joint, move the right handle of the winch to take the pad fork, take out the perforated pipe, install the core tube, lift the drilling tool to the top of the borehole, move the left handle of the winch continuously, and lower the drilling tool into the borehole at a uniform speed. When the groove of the variable diameter joint is close to the inlet, use the pad fork to block and remove the lifter.



What is the best time to do soil sampling?



Soil samples can be taken any time throughout the year. It is important though to sample approximately the same time of the year. Late summer, or early fall, is a good time for most crops. This allows time for lime recommended to react and change the pH before the crop is planted.
