500 Meters Depth Geological Drilling Equipment Xy-2b Engineering Hard Rock

500 Meters Depth Geological Drilling Equipment Xy-2b Engineering Hard Rock
500 Meters Depth Geological Drilling Equipment Xy-2b Engineering Hard Rock
video play

Large Image :  500 Meters Depth Geological Drilling Equipment Xy-2b Engineering Hard Rock

Product Details:
Place of Origin: China
Brand Name: Shitan
Certification: ISO
Model Number: XY-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: XY-2B Engineering Hard Rock Geological Drilling Rig Machine Condition: New
Type: Rotary Drilling Rig Voltage: 220V
Model: XY-2 Warranty: 1 Year
Brand Name: Shitan Drilling Diameter: Customized
Drilling Depth: 400 Meters Application: Water Well Drilling ,exploration ,soil Testing ,core Drilling
OEM: Acceptable Material: Steel
High Light:

500 meters depth geological drilling equipment

,

xy-2b geological drilling equipment

,

engineering hard rock geological drilling rig

XY-2B Engineering Hard Rock Geological Drilling Rig Machine With 500 Meters Drilling Depth





XY-2B Geological Drilling Rig Machine Description:



XY-2 Geological Drilling Rig Machine for the general exploration and investigation of solid mineral deposit, engineering geotectonic survey and concrete structure inspection holes.



XY-2B Geological Drilling Rig Machine Tech Parameter:



Drill Swivel Head

Drilling depth



Max.100~530m

Spindle speed



60 105 165 228 235 405 638 880 r/min

Hole diameter



Max.600m Spindle stroke 550kmm
Drill rod diameter 42mm Spindle pull-down Max.50KN
Angle range 0°~360° Spindle lifting capacity Max. 37KN
Oil pump Water pump
Model YBC-20/125 Model Gear oil pump
Rated pressure 8Mpa Working pressure Max. 10Mpa
Flow speed 20ml/r
Rated speed 150r/min
Hoist Power(diesel)
Max. lifting capacity 212kgs Model(diesel engine ZS1115
Hoisting drum revolution 20.39.85.170r/m Rated power 18.5KW
Drum diameter 140mm Rated speed 1800 r/min
WEIGHT AROUND 1200kgs
SIZE 2330x1050x1620mm



XY-2 Geological Drilling Rig Machine Features:



1. Diesel engine and electric motor as power.(convenient for places of insufficient of electricity)
2. Integrative Drilling Tower:
Tower is supported by two high strength oil cylinder, hydraulic controlling the rise and fall of the tower. The operation is extremely convenient, saving time and labor effort,creating maximum benefit for the user.
3. Crawler mobile base :
The chassis used crawler type achieve rapid turnarounds, very convenient for movement.

4. Long stroke hydraulic supporting leg can be used for transportation, loading and unloading of the drill automatically without the help of the lifting equipment. The hydraulic leg can rapidly make the drill level in the coordination with the universal level instrument.
5. electric-start diesel engine:
It greatly reduces the labor intensity of operators, especially more efficient in the cold season when the diesel engine start is difficult, showing its great advantage.



The specific steps of soil sampling method are as follows:



1. Distribution: samples shall be taken according to the soil type and the distribution of crop varieties, and according to the different soil fertility. The sampling points are distributed in zigzag or snake shape, which should be as uniform and random as possible.

2. Determine the sampling position and depth: the sampling position and depth shall be determined according to the thickness of the cultivated layer. Generally, the sampling depth is 0-20cm

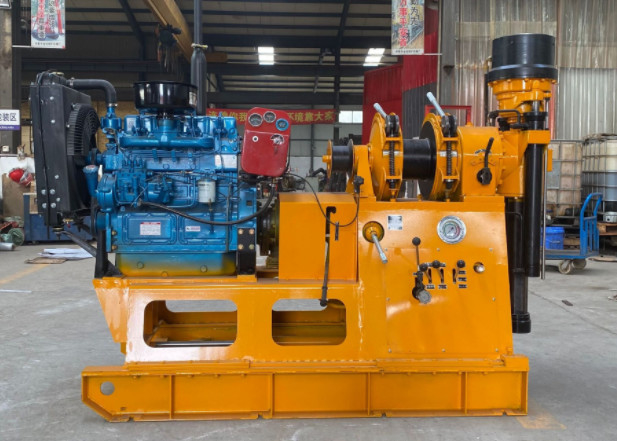

500 Meters Depth Geological Drilling Equipment Xy-2b Engineering Hard Rock 0

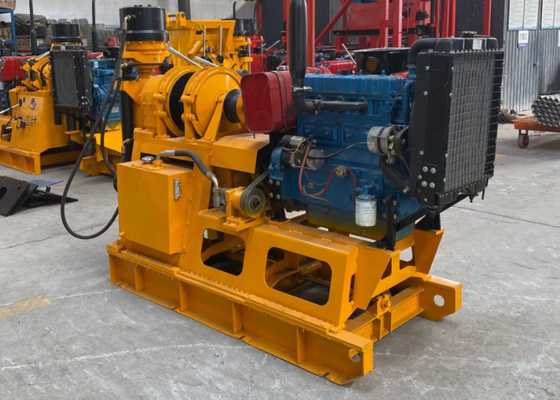

500 Meters Depth Geological Drilling Equipment Xy-2b Engineering Hard Rock 1

500 Meters Depth Geological Drilling Equipment Xy-2b Engineering Hard Rock 2
