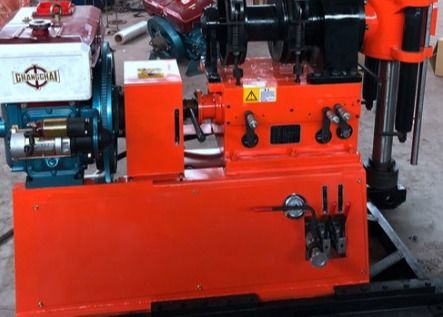

Gy 200 Engineering Drilling Rig High Speed Efficiency 300 Meters Depth

GY 200 High Speed Drilling Efficiency 300 meters Depth Engineering Drilling Rig

GY 200 Engineering Drilling Rig Product Description:

Portable Rotary GY 200 Engineering Drilling Rig for the general exploration and investigation of solid mineral deposit, engineering geotectonic survey and concrete structure inspection holes.

GY 200 Engineering Drilling Rig Product Parameter:

GY 200 Engineering Product Features:

1. Diesel engine and electric motor as power.(convenient for places of insufficient of electricity)
2. Integrative Drilling Tower:
Tower is supported by two high strength oil cylinder, hydraulic controlling the rise and fall of the tower. The operation is extremely convenient, saving time and labor effort,creating maximum benefit for the user.
3. Crawler mobile base :
The chassis used crawler type achieve rapid turnarounds, very convenient for movement.

4. Long stroke hydraulic supporting leg can be used for transportation, loading and unloading of the drill automatically without the help of the lifting equipment. The hydraulic leg can rapidly make the drill level in the coordination with the universal level instrument.
5. electric-start diesel engine:
It greatly reduces the labor intensity of operators, especially more efficient in the cold season when the diesel engine start is difficult, showing its great advantage.
6. The machine is equipped with a complete set of independent BW - 160 mud pump, with high pump flow rate and pressure, convenient maintenance, convenient to buy spare and accessory parts all around.

How to Start drilling:

Push on the clutch handle and reducer handle, the mud pump starts to supply water, press the hydraulic right handle and rotate the left handle pressure regulating valve to start drilling. When the vertical shaft of the rotator falls to the bottom, pull down the clutch handle to cut off the power. Lift the support ring, lift the right hydraulic handle up to the up position, press the left hydraulic handle, lift the vertical shaft to the highest position, press the support ring, push up the clutch handle, press the right hydraulic handle down to the down position, start drilling again, operate repeatedly according to the above operation mode until the maximum drilling depth of the active drill pipe is reached, and then replace and install the drill pipe.
