Dth Hammer Pneumatic Drilling Rig Large Hole Diameter Deep Water

Large Image : Dth Hammer Pneumatic Drilling Rig Large Hole Diameter Deep Water

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	50000 sets per year

Contact Now

Detailed Product Description

Product Name:	DTH Hammer ST 180 Large Hole Diameter Deep Pneumatic Drilling Rig	Color:	Red Yellow
Feature:	High Drilling Efficiency	Usage:	Water Well,blast Borehole
Application:	Water Well Drilling	Power Type:	Diesel
Drilling Depth:	180 Meters	Warranty:	1 Year
Voltage:	220V/380V	Length Of Drill Pipe(mm):	3m
Condition:	New	Drilling Depths:	180 Meters
Highlight:	dth hammer pneumatic drilling rig , large hole diameter pneumatic drilling rig , oem pneumatic drill rigs

DTH Hammer Pneumatic Drilling Rig Large Hole Diameter Deep Water

Product Specifications

Attribute	Value
Product Name	DTH Hammer ST 180 Large Hole Diameter Deep Pneumatic Drilling Rig
Color	Red Yellow
Feature	High Drilling Efficiency
Usage	Water Well, blast borehole
Application	Water Well drilling
Power Type	Diesel
Drilling Depth	180 meters
Warranty	1 Year
Voltage	220V/380V
Length of drill pipe	3m
Condition	New

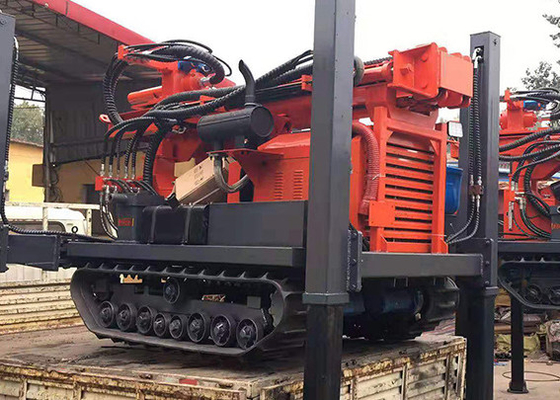

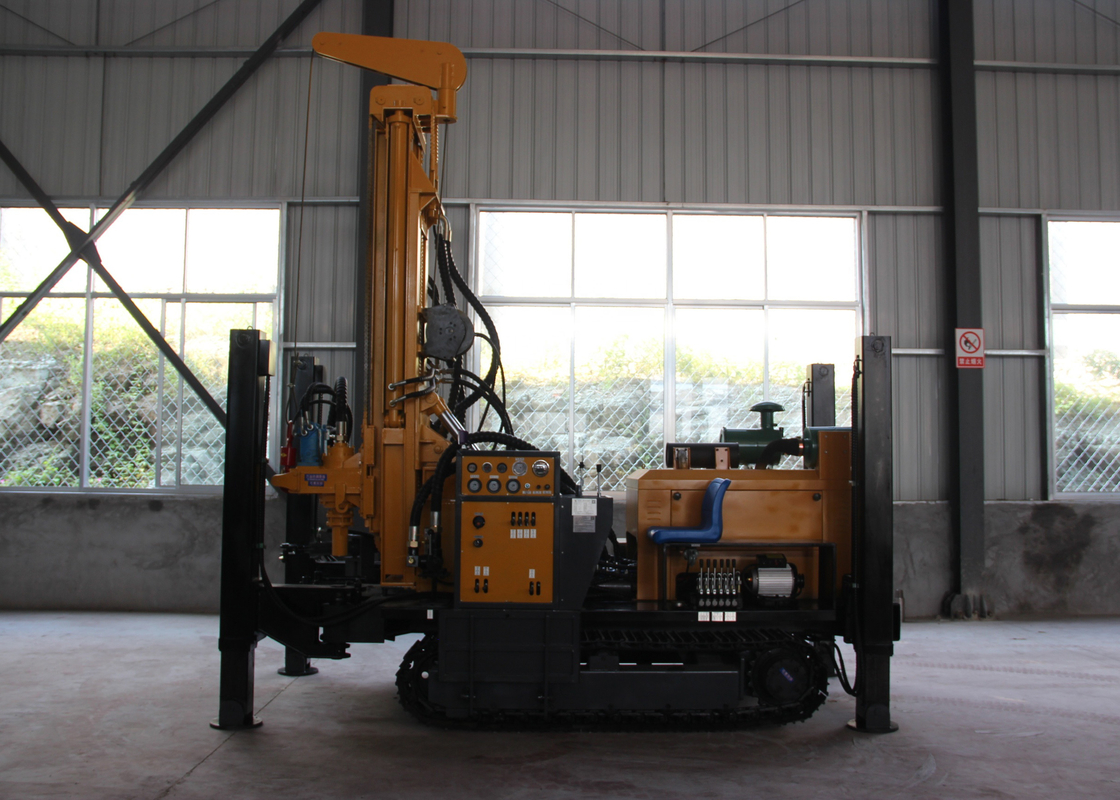

ST 180 Pneumatic Drilling Rig Introduction

The ST 180 drilling rig is capable of drilling up to 180m with a drilling diameter of 105-180mm. It features a lifting force of 16t, tower height of 3M, and total machine weight of 4.5t. The rubber track design provides advantages including low noise, no road damage, minimal vibration, and high speed operation.

Technical Specifications

Drilling Rig Model	ST-180	Air consumption(m³/min)	17-31
Rig Weight(T)	4.5	Equipped capacitor(Kw)	55
Dimensions(mm)	380015502350	Swing speed(rpm)	45-65
The hole diameter(mm)	140-254	Swing torque(N.m)	3200-4600
Drilling Depth(m)	180	Drill pipe diameter(mm)	76 89
Stroke	3.3	Drill pipe length(m)	1.5 2.0 3.0
Walking speed(Km/h)	2.5	Rig lifting force(T)	10
Climbing angles(Max.)	30	Supporting Power	29m3/min 23BAR AIR COMPRESSOR
Air compressor (Mpa)	1.7-2.5

Key Features

The pneumatic impact principle ensures fast drilling footage
Equipped with rubber steel wire crawler for easy movement without damaging urban roads
High hydraulic outrigger facilitates vehicle loading/unloading, reduces hoisting costs, and maintains drilling rig stability
High-power diesel engine provides strong power to effectively meet work requirements

FAQ & Service

What kind of drilling rig do you have?

We manufacture small hydraulic drilling rigs, water well drilling rigs, core drilling rigs, engineering drilling rigs, and geological exploration drilling rigs. We recommend suitable models based on your specific requirements.

Where is your company located?

Our factory is located in Jinzhou, Shijiazhuang City, Hebei Province, China.

Are you a manufacturer or trading company?

We are a professional manufacturer with 20 years of experience and ISO certification, operating a large modern drilling rig plant in Hebei, China.

What is your delivery time?

Small hydraulic drilling rigs typically take 5-7 days, while larger models require 7-15 days. Please contact our sales team in advance for urgent orders.
