Two Hundred Meters Bore Rig Machine 220v Geological Coring

Large Image : Two Hundred Meters Bore Rig Machine 220v Geological Coring

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	GK 200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Two Hundred Meters Depth 220V Soil Sampling Investigation Core Drilling Rig	Color:	Red Yellow Blue
Feature:	High Drilling Efficiency	Usage:	Water Well,exploration
Application:	Water Well Drilling	Power Type:	Diesel
Drilling Depth:	200 Meters	Warranty:	1 Year
Voltage:	220V/380V	Length Of Drill Pipe(mm):	3m
Condition:	New	Depths:	200 Meters
Highlight:	220v soil sample drilling machine , two hundred meters core drill rig , geological core soil sample drilling machine

Two Hundred Meters Bore Rig Machine 220V Geological Coring

Product Specifications

Attribute	Value
Product Name	Two Hundred Meters Depth 220V Soil Sampling Investigation Core Drilling Rig
Color	Red Yellow Blue
Feature	High Drilling Efficiency
Usage	Water Well, Exploration
Application	Water Well Drilling
Power Type	Diesel
Drilling Depth	200 meters
Warranty	1 Year
Voltage	220V/380V
Length of Drill Pipe	3m
Condition	New

Product Overview

The GK 200 Core Drilling Rig is designed for geotectonic survey, geological core drilling, and small hole drillings for grout, blast and water well applications in railway, water conservancy, bridge, dam foundation and other construction projects.

Technical Specifications

Drilling Depth	200m
Maximum Open Hole Caliber	300mm
End Hole Caliber	75mm
Drill Rod Caliber	60mm
Drilling Angle	90°~75°
Drill Weight (Excluding Power)	975kg
Unit Dimensions	1433×697×1273mm
Spindle Speed	64, 128, 287, 557r/min
Spindle Stroke	450mm
Max Single Line Hoisting Capacity	2400kg
Single Line Lifting Speed	0.41, 0.82, 1.64m/s
Steel Wire Rope Caliber	13mm (35m)
Mud Pump Type	Horizontal Single Urn Twin-action
Displacement	170/150L/min (diesel or electromotor)
Diesel Engine	ZS1115 16.2kw 2200r/min
Electric Motor	Y160M-4 11kw 1440r/min

Key Features

Hydraulic feeding structure improves drilling efficiency and reduces labor intensity
Upper ball clamp clamping mechanism and hexagonal active drill pipe allow rod reversal without shutdown
Hole bottom pressure gauge indicates pressure for better hole situation monitoring
Centralized handle for easy operation
Base-mounted oil cylinder facilitates back-and-forth movement for drilling tool handling
Compact structure with small volume, light weight, and strong decomposition for easy relocation
Available in trailer type, crawler type, and disassembly configurations for various terrains

Direct Replacement of Drill Pipe

Install locking handles at both ends of the added drill pipe, connect the lifter to the locking handle, lift the drill pipe to the top of the drill hole, connect with the reducer joint, remove the pad fork, lower the drill pipe into the drill hole at uniform speed, block with fork when near inlet, remove elevator and continue drilling.

Exploration Drilling Process

Drilling involves sinking a drill string into the ground while injecting special mud to bring rock fragments and gas samples to the surface. Multiple boreholes are drilled to delineate potential deposits.

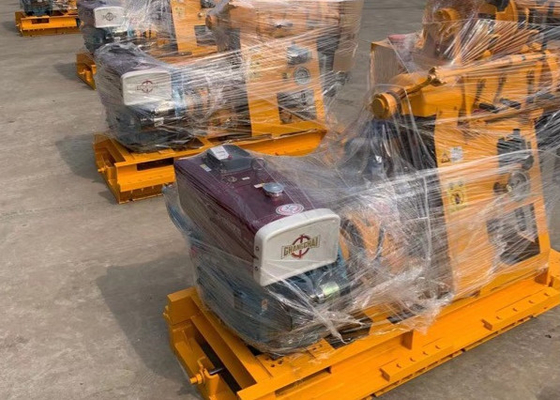

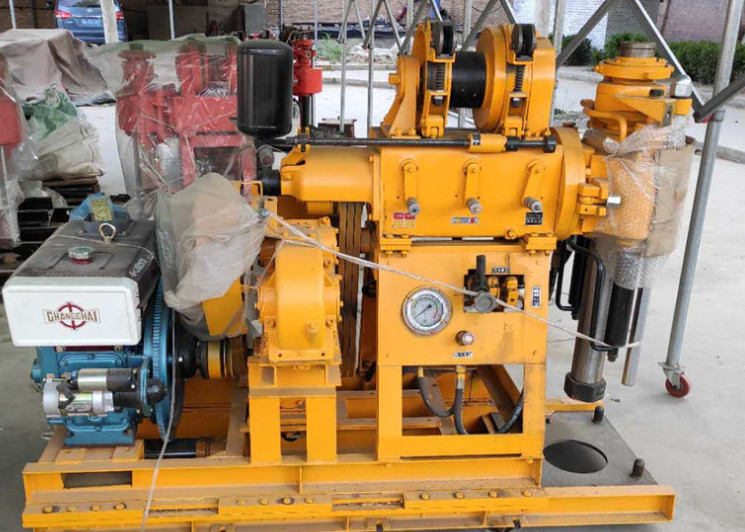

Product Images
