Two Hundred Meters Borehole Pneumatic Drilling Rig Equipment For Deep Hole Blasting

Large Image : Two Hundred Meters Borehole Pneumatic Drilling Rig Equipment For Deep Hole Blasting

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 200 Water Well Pneumatic Drilling Rig	Model Number:	Truck-mounted Drilling Rig.crawler Mounted Drilling Rig
Machine Type:	Drilling Equipment	Hole Diameter:	Customized
Drilling Depths:	200 Meters	Weight:	8.9 T
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min	Color:	Blue ,yellow,red
Place Or Origin:	Hebei,China	After Sale Service:	Video Support
Highlight:	dth pneumatic drilling equipment , deep hole blasting pneumatic drilling equipment , 380v pneumatic water well drilling

ST 200 Water Well Pneumatic Drilling Rig

Product Specifications

Model Number	Truck-mounted drilling rig, crawler mounted drilling rig
Machine Type	Drilling Equipment
Hole Diameter	Customized
Drilling Depths	200 meters
Weight	8.9 T
Warranty	12 months
Rotation Torque	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min
Color Options	Blue, yellow, red
Place of Origin	Hebei, China
After Sale Service	Video Support

Product Description

The ST 200 large pneumatic drilling rig features an expanded pitch and lifting-arm hydraulic cylinder, making it ideal for water intake in mountainous and rocky strata. This versatile equipment can be used with air compressors, mud pumps, or foam pumps, and requires various drilling tools including drill rods, hammers, and rock drill bits.

Technical Parameters

Model	ST 200
Condition	New
Type	Rotary Drilling Rig
Power Type	Diesel
Brand Name	Shitan
Usage	Water Well Drilling
Dimensions (L×W×H)	6400MM × 2250MM × 2700MM
Weight	5800KG
Drilling Diameter	90-152mm
Depth	25M
Rotary Speed	0-90rpm
DTH	K40
Drilling Rods	76×2m + 76×3m
Air Consumption	13-20m3/min
Traveling Speed	0-2.5km/h

Key Features

Compatible with both air compressors and mud pumps for different stratums
DTH Hammer tools designed for hard layers
Crawler mounted base with four hydraulic high standing legs for easy transportation and rugged terrain operation
Full hydraulic and top drive technology for labor-saving, efficient operation
Integrated diesel engine that can also be used to heat water

Construction Technology for Dewatering Wells

Well point measurement and positioning → hole digging and casing embedding → drilling rig in place → drilling → hoisting well pipe → back-filling filter material (coarse sand or gravel) between well pipe and hole wall → hole washing → drainage pump installation → trial pumping → normal operation → dewatering completion → pipe pulling → well sealing.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are the factory with our own patent, capable of designing and manufacturing products.

How long is your delivery time?

Standard delivery is 7-10 days for in-stock items, or 15-20 days for custom orders, depending on quantity.

What is your payment method?

30% deposit via T/T, with 70% balance payment before delivery.

What drilling depths are available?

Our water well drilling rigs cover depths from 100m to 600m.

How long could your air compressor be used?

Typically more than 10 years with proper maintenance.

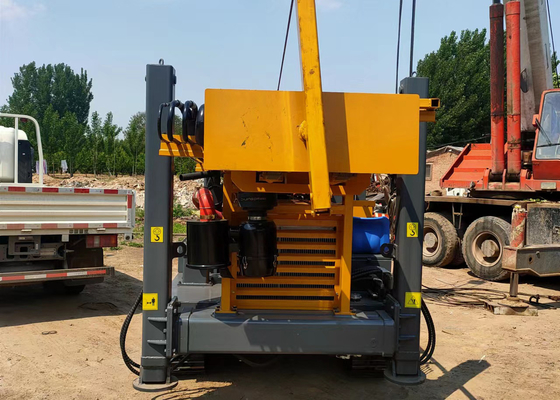

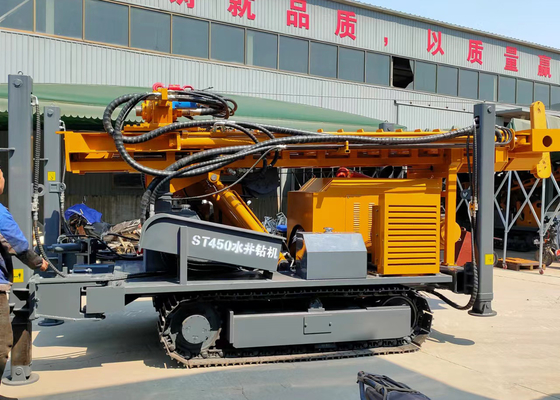

Product Images
