Geothermal Pneumatic Drilling Rig Crawler Mounted Water Borehole ST180

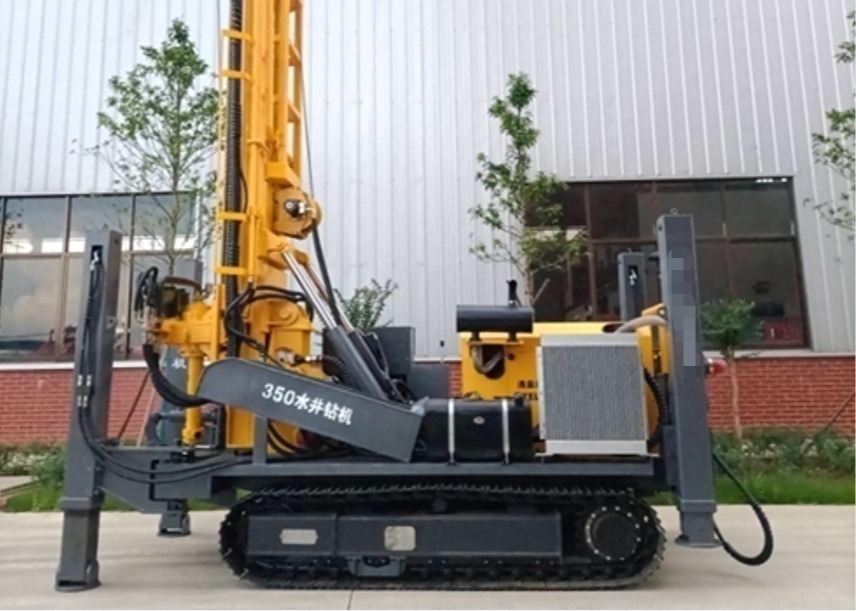

Large Image : Geothermal Pneumatic Drilling Rig Crawler Mounted Water Borehole ST180

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	50000 sets per year

Contact Now

Detailed Product Description

Product Name:	180 Meters Crawler Mounted Blasting Water Borehole Pneumatic Drilling Rig	Color:	Red Yellow
Feature:	High Drilling Efficiency	Usage:	Water Well,exploration,soil Testing
Application:	Water Well Drilling	Power Type:	Diesel Engine
Drilling Depth:	180 Meters	Warranty:	1 Year
Voltage:	220V/380V	Length Of Drill Pipe(mm):	3m
Condition:	New	Drilling Depths:	180 Meters
Highlight:	geothermal pneumatic drilling rig , crawler mounted pneumatic drilling rig , 380v pneumatic rig

180 Meters Crawler Mounted Blasting Water Borehole Pneumatic Drilling Rig

Product Specifications

Attribute	Value
Color	Red Yellow
Feature	High Drilling Efficiency
Usage	Water Well, Exploration, Soil Testing
Application	Water Well Drilling
Power Type	Diesel Engine
Drilling Depth	180 meters
Warranty	1 Year
Voltage	220V/380V
Length of Drill Pipe	3m
Condition	New

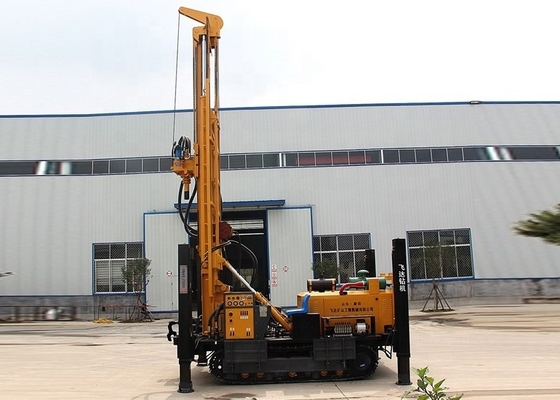

ST180 Water Borehole Pneumatic Drilling Rig

The ST180 is a new, highly-effective, energy-saving multifunctional hydraulic drill specialized for water well drilling, monitoring wells, geothermal air-conditioning holes, and hydropower cofferdam grouting holes. Equipped with hydraulic motor rotation, high-power propulsion, lifting cylinders, and a down-hole impacter with high blast pressure, this rig delivers exceptional drilling performance with low energy consumption.

Technical Specifications

Parameter	Value
Drilling Depth	180 Meters
Chassis	Rubber Track
Drilling Diameter	130-254 mm
Model	ST 180
One-time Advance Length	3.6 m
Walking Speed	2.5 km/h
Gradeability	30°
Engine Brand	Yunnei
Main Motor Power	42 kW
Working Pressure	1.45-2.5 MPa
Air Consumption	17-31 m³/min
Drill Pipe Diameter	76/89 mm
Drill Pipe Length	1.5/2.0/3.0 m
Lifting Force	12 t
Rotating Speed	40-65 rpm
Rotary Torque	3500-3800 N.m
Dimensions	3500 × 1700 × 2250 mm
Machine Weight	4.5 t

Key Features

Powerful Engine: Equipped with a 55Kw turbocharged diesel engine for reliable performance
Durable Walking System: Gearbox-equipped walking motor ensures long service life
Efficient Hydraulic System: Parallel gearbox design with separate pump provides optimal power distribution
High Torque Power Head: Cast gearbox with dual motors delivers exceptional torque and durability
Robust Chassis: Professional rubber track system with wide chain plates prevents road damage
Enhanced Lifting Capacity: Patented compound arm design with double cylinders provides superior lifting force
Safety Features: Integrated cylinder limiters and protective jackets for hydraulic oil tubes

Primary Applications

This drilling rig is specifically designed for challenging terrains including hilly and mountainous rocky areas. Its high-power diesel engine and centralized operating controls provide excellent maneuverability and efficiency. Key operational benefits include:

Hydraulic outrigger system for stable loading/unloading operations
Advanced hydraulic feeding system for fast penetration rates
Steel crawler chassis for superior mobility on complex job sites
Large torque output for high drilling efficiency in tough conditions

Water Table Location Guidance

The most accurate method for determining water table depth is measuring the water level in a shallow well. When wells aren't available, surface geophysical methods using electric or acoustic probes can be employed, depending on site accessibility.
