Borehole Watering Steel Crawler Pneumatic Drilling Machine Rig For Hard Rocks

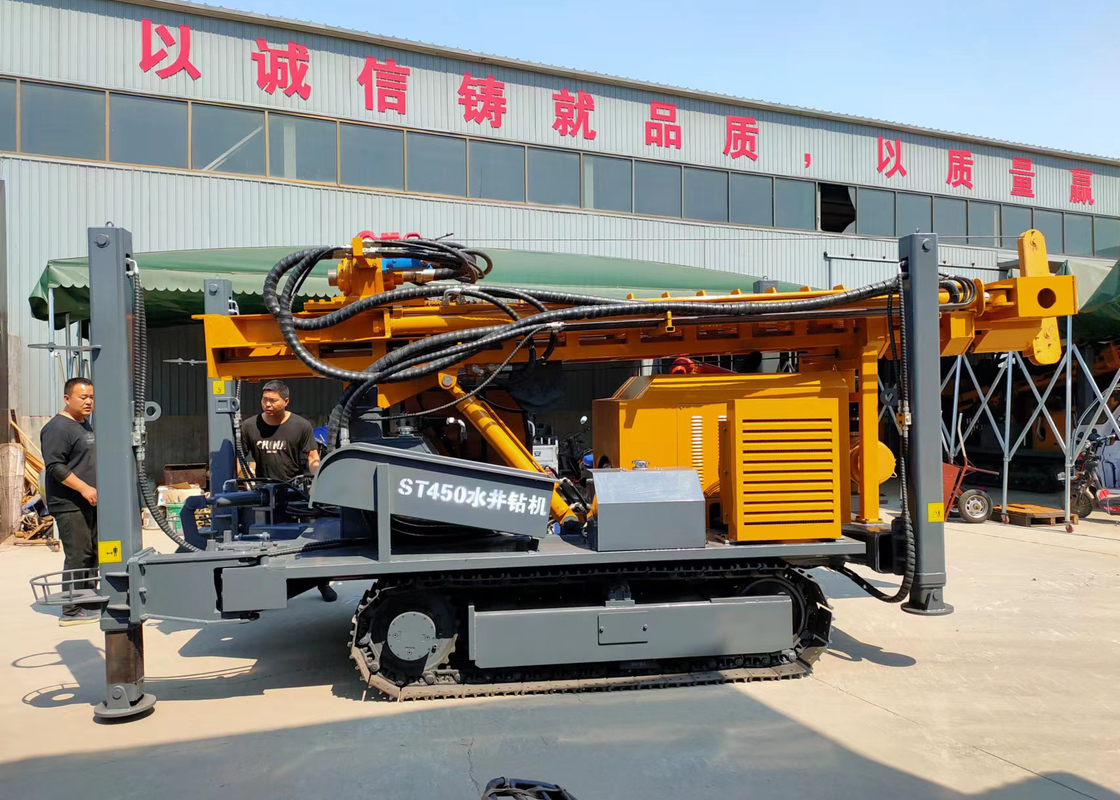

Large Image : Borehole Watering Steel Crawler Pneumatic Drilling Machine Rig For Hard Rocks

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST 350

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Wooden case (bare)
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Product Name:	Large Pneumatic 350 Meters Borehole Watering Steel Crawler Drilling Rig Machine	Drilling Depth:	350 M
Drilling Diameter:	105-300mm	Warranty:	1 Year
Power Type:	Diesel	Color:	Yellow
Weight:	7T	Rotary Head Storke:	3.4m-6.0m
Rated Power:	55-132KW	Optional Accessories:	90KW
Weight Of The Rig:	4m×1.7m×2.2m	Air Pressure:	16-55m³/min
Highlight:	borehole watering pneumatic drilling machine , crawler hard rocks pneumatic drilling machine , 380v pneumatic bore machine

Borehole Watering Steel Crawler Pneumatic Drilling Machine Rig For Hard Rocks

Product Specifications

Attribute	Value
Product Name	Large Pneumatic 350 Meters Borehole Watering Steel Crawler Drilling Rig Machine
Drilling depth	350 m
Drilling diameter	105-300mm
Warranty	1 Year
Power type	Diesel
Color	Yellow
Weight	7T
Rotary Head Stroke	3.4m-6.0m
Rated Power	55-132KW
Optional accessories	90KW
Weight of the rig	4m×1.7m×2.2m
Air pressure	16-55m³/min

ST 350 Pneumatic Drilling Rig Introduction

The ST300 drilling rig offers exceptional flexibility for challenging terrain and is suitable for various applications including hydrology wells, coalbed methane exploration, shallow shale gas layers, geothermal projects, and coal-mine gas exploitation. With a drilling depth of 350 meters and hole diameter of 325mm, this rig can be customized with either wheels or crawlers.

Technical Parameters

Parameter	Specification
Model	ST 350 Drilling Rig
Drilling depth	350m
Hole diameter	φ140 - 325mm
Advance Length one time	6.6m
Working pressure	1.7-3.3MPa
Air consumption	17-35m³/min
Length of rod	1.5m, 2m, 3m, 6m
Diameter of rod	φ89, φ102, φ114
Lifting power	24T
Rotation torque	6200-85000N.m
Rotation Speed	55-115r/min
Diesel Engine	Yuchai
Engine Power	92Kw/2200rpm
Travelling speed	0-2.5 Km/h
Climb capacity	30°
Weight	9000kgs
Dimension	5900x2000x2850mm
Application	Complicated geological conditions: Rock, Mud, Sand etc.
Drilling Way	Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Driling
DTH Hammer	4",5",6",8",10" Drill hammer or CIR110, 130, 150,170

Key Advantages

The ST 350 drilling rig incorporates advanced hydraulic technology featuring high torque hydraulic motor rotation and large bore drill hydraulic propulsion. Powered by a multi-cylinder engine with two-stage air filtration and specialized intake air compressor, this system extends engine life. The unique pump design simplifies maintenance while reducing costs. The centralized hydraulic control console ensures easy operation.

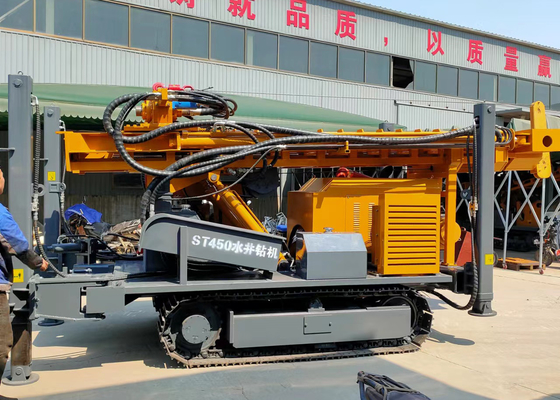

Product Images

Frequently Asked Questions

Are you manufacturer?

We are a professional manufacturer with 20 years of experience.

What is your delivery time?

5-7 days or 7-15 days depending on order quantity.

What about the shipment?

We typically ship from Xingang port in Tianjin. Goods are packed in bundles (3*3, 4*4 etc) with black painting and thread protectors.

Do you accept sample orders?

Yes, we welcome sample orders to test our product quality.

Does your drill pipe have rust prevention?

Yes, all drill pipes are treated with rust prevention paint or anti-corrosive oil before shipping, with thread surfaces nitrided.

Do you provide after-sale service and warranty?

We offer full warranty service and respond to any issues within 24 hours.

What is your minimum order quantity?

Minimum order is one piece - we accept small orders.
