72kw Pneumatic Drilling Rig Commercial Industrial Rock Drilling

Large Image : 72kw Pneumatic Drilling Rig Commercial Industrial Rock Drilling

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	72kw Water Pneumatic Drilling Rig	Model Number:	ST 200
Machine Type:	Drilling Equipment	Certification:	ISO
Hole Diameter:	Customized	Drilling Depths:	200 Meters
Condition:	New	Weight:	8.9 T
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min
Highlight:	72kw pneumatic drilling rig , rock blasting pneumatic drilling rig , 380v pneumatic rock drill machine

72kw Pneumatic Drilling Rig Commercial Industrial Rock Drilling

Product Specifications

Attribute	Value
Product Name	72kw Water Pneumatic Drilling Rig
Model Number	ST 200
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized
Drilling Depths	200 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation torque	7500Nm, 983 N.m, 4200N.m, 3400mm
Air consumption	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min

ST 200 Pneumatic Water Well Drilling Rig

High-performance drilling machine designed for large borehole blasting operations with exceptional durability and efficiency.

Key Features

Multiple positive speed stages with 14-500r/min speed range
Output torque range of 13428-250N.m
2 reverse speeds for accident handling
Dual oil pump system for efficient operation
Advanced structure with easy maintenance access

Technical Specifications

Drilling Depth	200m
Hole Diameter	φ140-200mm
Advance Length per cycle	6.6m
Working pressure	1.7-3.0MPa
Air consumption	17-35m³/min
Rod Length options	1.5m, 2m, 3m, 6m
Rod Diameter options	φ76, φ89, φ102, φ114
Lifting power	24T
Rotation torque	8500-11000N.m
Rotation Speed	40-70r/min
Engine	Yuchai Diesel
Engine Power	85Kw/2200rpm
Traveling speed	0-2.5 Km/h
Climb capacity	30°
Weight	9000kgs
Dimensions	5900x2000x2850mm

Operational Advantages

Fast drilling: Complete wells in 1 day, significantly reducing construction periods
Exceptional durability: 10+ years of reliable service guaranteed
Deep drilling capability: Capacity up to 1600 meter depth
Fuel efficiency: Saves 20-30% diesel consumption compared to conventional rigs

Operation Guidelines

Engage clutch or rotate working wheel gently and evenly
Stop work wheel before changing speed or transfer handles
Never press both handlebars simultaneously when using lift
Monitor oil pressure gauges and adjust hole bottom pressure gradually
Use oil pressure system for fast lifting only under original load conditions

Following these guidelines ensures optimal performance and longevity of your drilling rig.

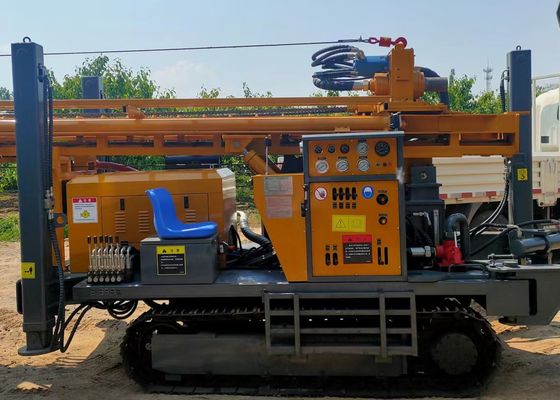

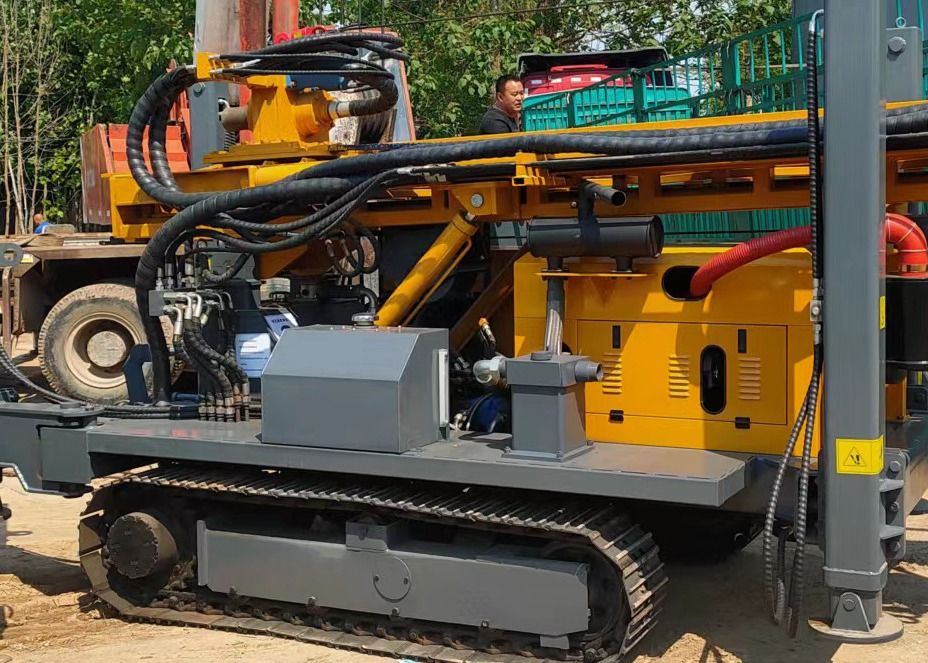

Product Images

Tag:

380v pneumatic drilling rig,

pneumatic drilling rig 200m,

percussive pneumatic drilling machine
