Deep Borehole Pneumatic Earth Drilling Equipment 200 Meters With Kaishan Air Compressor And Mud Pump

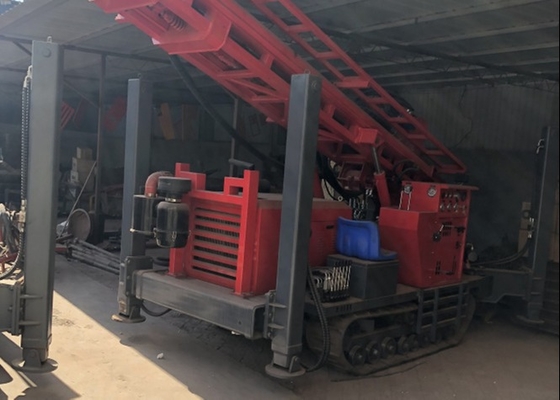

Large Image : Deep Borehole Pneumatic Earth Drilling Equipment 200 Meters With Kaishan Air Compressor And Mud Pump

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Deep Borehole Pneumatic Drilling Rig 200 Meters With Kaishan Air Compressor And Mud Pump	Model Number:	ST 200
Machine Type:	Drilling Equipment	Certification:	ISO
Hole Diameter:	Customized	Drilling Depths:	200 Meters
Place Of Origin:	Hebei,China	Weight:	8.9 T
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min	Color:	Yellow,Red And Blue
Highlight:	pneumatic earth drilling equipment , 200 meters pneumatic drilling rig , 380v pneumatic drilling equipment

Deep Borehole Pneumatic Earth Drilling Equipment 200 Meters

Product Specifications

Model Number	ST 200
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized
Drilling Depths	200 meters
Place of Origin	Hebei, China
Weight	8.9 T
Warranty	12 months
Rotation Torque	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min
Color Options	Yellow, Red and Blue

Product Overview

The ST 200 Pneumatic Drilling Rig is designed for drilling wells, irrigation wells, ground source heating pump wells, and other borehole applications. It excels in mountain and rock formation projects and can operate in various geological layers.

Technical Specifications

Condition	New
Drilling Capacity	200 Meters
Power Type	Diesel
Brand	Shitan
Usage	Water Well Drilling
Dimensions (L×W×H)	6400MM × 2250MM × 2700MM
Weight	5800KG
Drilling Diameter	90-152mm
Depth	25M
Rotary Speed	0-90rpm
DTH	K40
Drilling Rods	76×2m + 76×3m
Air Consumption	13-20m3/min
Traveling Speed	0-2.5km/h

Key Features

Lightweight yet powerful design for efficient drilling operations
Versatile application for wells, geothermal systems, and air holes
Capable of drilling in various formations with diameters up to 245mm
Advanced hydraulic technology with high torque hydraulic motor rotation
Branded multi-cylinder engine with two-stage air filtration
Unique pump design for easy maintenance and reduced costs
Centralized hydraulic control console for simplified operation

Operational Guidelines

Conduct preliminary drilling to sample and create a profile structure diagram
Design well pipes and filters based on geological structure
Ensure proper backfilling with siliceous sandy pebble filter material
Maintain well pipe verticality and proper overlap connections
Use appropriate filter screen specifications (25 mesh, double layered)

Weather Considerations

The drilling project requires proper drainage and should avoid rainy seasons. Excavation slopes should be determined by soil properties (typically 1:1.5 ratio). For wells with shaft wall water inflow, proper filter layer arrangement is essential. Winter operations must limit frozen soil in backfill to under 15%.
