Blast Rocky Structure Diamond Drill Rig 300mm Diameter

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

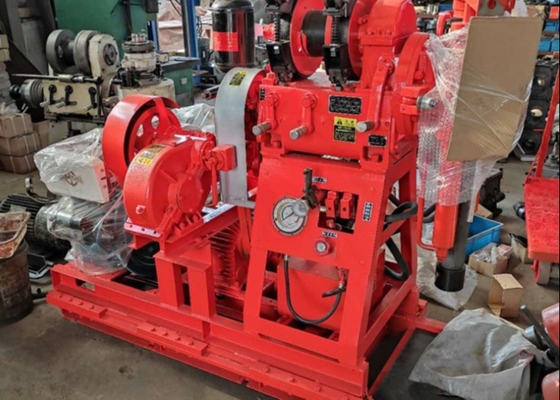

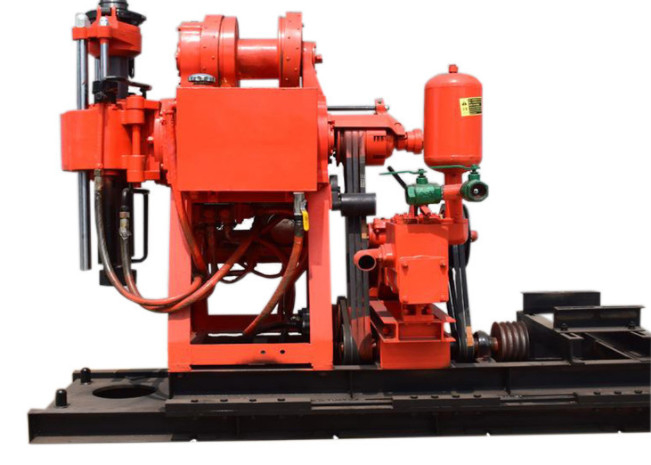

Blast Rocky Structure Diamond Drill Rig 300mm Diameter

Blast Rocky Structure Diamond Drill Rig 300mm Diameter
Blast Rocky Structure Diamond Drill Rig 300mm Diameter
video play

Large Image :  Blast Rocky Structure Diamond Drill Rig 300mm Diameter

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK 200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: Engineering Drilling Rig GK200 Color: Red Yellow,blue
Feature: High Drilling Efficiency Usage: Water Well,exploration
Application: Water Well Drilling Power Type: Diesel
Drilling Depth: 200 Meters Warranty: 1 Year
Voltage: 220V/380V Length Of Drill Pipe(mm): 3m
Condition: New Hole Diameter: 200 Mm
High Light:

300mm diameter diamond drill rig

,

blast rocky structure diamond drill rig

,

300mm diameter core drill rig

GK 200 Diamond Core Drilling Rig





GK 200 Diamond Core Drilling Rig Machine Introduction



Gk200 drilling rig is widely used and hydraulic feeding , which has the characteristics of large power, large lifting force (2T) and high transmission torque.. It is suitable for drilling water well,geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings. According to different strata, it drills by choosing different bits, such as, diamond composite films and alloy.

GK 200 Diamond Core Drilling Rig Information



Drilling Depth
200m
Maximum open hole diameter 300mm
End hole diameter 75mm
Drill rod diameter 60mm
Drilling angle 90°~75°
Drill weight (No include power) 975kg
Unity machine dimensions 1433×697×1273m
Spindle
spindle speed 64 128 287 557r/min
Spindle stroke 450mm
Winch
Max.single line hoisting capacity 2400kg
Single line lifting speed 0.41,0.82,1.64m/s
steel wire rope caliber 13m(35m)
Mud pump
Type Horizontal single urn twin-action
Displacement
170/150L/min(diesel or electromotor)
Diesle engine ZS1115 16.2kw 2200r/min
Electric motor Y160M—4 11kw 1440r/min



GK 200 Diamond Core Drilling Rig Machine Advantages



1.With oil pressure feeding mechanism,.
2.Large rotary torque and large opening diameter.
3.Large active drill pipe and double guide rod are adopted,.
4.The drilling rig is equipped with an upper ball clamping mechanism and a hexagonal active drill pipe,
5.It is equipped with a hole bottom pressure gauge to indicate the pressure, so as to master the situation in the hole.
6.Handle centralized operation

GK 200 Diamond Core Drilling Rig Machine Application



Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.

With hydro-automatic feeding device, and high drilling efficiency.

Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.

Close levers, convenient to operate, safe and reliable operations.

Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.

Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas



The five main types of wells are digging, driving, drilling, drilling and jetting (Flushing).



Most digging and drilling equipment is available, or because drilling is considered too expensive, the front hole is built-in. Modern wells are usually lined with concrete tiles and have a large diameter, providing a large opening for the aquifer. This allows them to get water from very fine materials such as sand, silt or clay. The wells are shallow and there is no continuous casing, which makes them polluted by nearby pollution sources.

Drive wells are made by driving small diameter pipes into shallow water, sand or gravel containing sand. The construction of these wells is relatively simple and economical, but they can only dig shallow water and are as easy to be polluted as digging wells.

The drilled well consists of a large auger. The depth of boreholes is usually about 50 to 70 feet. They are usually made of soft materials, such as sand, silt, clay and soft rock.

Use percussive or rotary drilling machines to construct drilling. These wells can be more than 1000 feet deep. Wells that penetrate less hard and firm land require casing and screens to prevent the inflow of sediment, which can lead to well collapse.

Force high-pressure water into underground drilling jet or flushing wells. This construction method can only be used for soft soil foundation.



Blast Rocky Structure Diamond Drill Rig 300mm Diameter 0

Blast Rocky Structure Diamond Drill Rig 300mm Diameter 1



Blast Rocky Structure Diamond Drill Rig 300mm Diameter 2

Blast Rocky Structure Diamond Drill Rig 300mm Diameter 3
