Air And Mud Pump Pneumatic Water Well Drilling Rig 260 Meters For Borehole

Large Image : Air And Mud Pump Pneumatic Water Well Drilling Rig 260 Meters For Borehole

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST 260

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	25000-30000 USD
Packaging Details:	Wooden case (bare)
Delivery Time:	5-8days
Payment Terms:	T/T, Western Union
Supply Ability:	1000/month

Contact Now

Detailed Product Description

Product Name:	Pneumatic Drilling Rig ST 260	Drilling Diameter:	105-260mm
After-sales Service Provided:	Water Well Drilling Rig	Warranty:	1 Year
Power Type:	Diesel	Color:	Yellow
Weight:	6T	Rotary Head Storke:	3.4m-6.0m
Rated Power:	55-132KW	Optional Accessories:	70KW
Weight Of The Rig:	4m×1.7m×2.2m	Air Pressure:	16-55m³/min
Highlight:	mud pump pneumatic water well drilling , 260 meters pneumatic water well drilling , 380v pneumatic drilling machine

Pneumatic Drilling Rig ST 260 - 260 Meter Water Well Drilling Equipment

Product Name

Pneumatic Drilling Rig ST 260

Drilling Diameter

105-260mm

Power Type

Diesel

Weight

Warranty

1 Year

Rated Power

55-132KW

ST 260 Pneumatic Drilling Rig Overview

The ST 260 is a lightweight, efficient, and versatile drilling rig designed for water wells, irrigation systems, geothermal applications, and other borehole drilling needs. Engineered to perform in challenging mountain and rock formations, this rig can drill holes up to 260mm in diameter with exceptional precision and reliability.

Technical Specifications

Drill Hole Diameter	φ105-260mm
Advance Length per Cycle	6.6m
Working Pressure	1.7-3.0MPa
Air Consumption	17-35m³/min
Lifting Power	24T
Rotation Torque	8500-11000N.m
Diesel Engine	Yuchai 85Kw/2200rpm
Dimensions	5900x2000x2850mm

Key Features

High-power engine: Delivers consistent performance in demanding conditions
Durable walking mechanism: Gearbox-equipped motor for extended service life
Advanced hydraulic system: Parallel gearbox design with separate oil pump units for efficient power distribution
Robust power head: Cast gearbox with dual motors providing high torque output
Professional excavator chassis: Wide chain plates minimize road damage while providing stability
Safety features: Protective jackets on hydraulic pipes and boom stoppers for operator protection

Applications

The ST 260 drilling rig is engineered for complex geological conditions including rock, mud, and sand formations. Its versatile design supports multiple drilling methods including top drive hydraulic rotary, DTH drilling, and mud pump drilling operations.

Operational Guidelines

1. Always clean the hole bottom and remove residue before changing drilling tools. Lift tools gradually when the force is optimal.

2. Monitor casing follow-up and hole conditions continuously during operation. Never force the drill bit during extraction.

3. For rock slag accumulation, apply air pressure to clean the hole before reactivating the DTH hammer and lifting the central drilling tool.

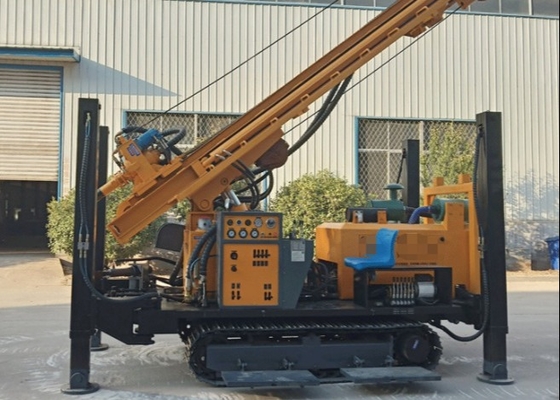

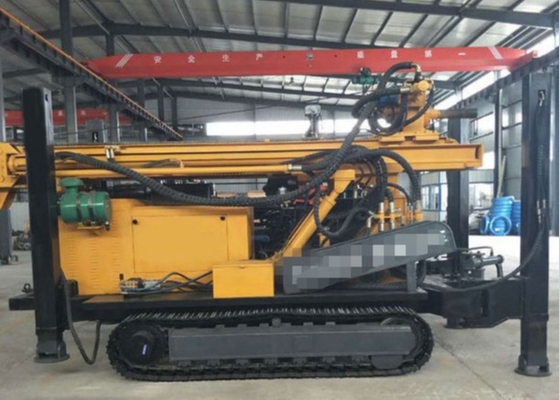

Product Images
