OEM Customized Geotech Drill Rig With 30 Meters Depth ST 30

Large Image : OEM Customized Geotech Drill Rig With 30 Meters Depth ST 30

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO9001
Model Number:	ST 30

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	1500 USD
Packaging Details:	Standard Export Package
Delivery Time:	7 days
Payment Terms:	T/T, Western Union
Supply Ability:	5000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 30 Geological Core Drilling Machine	Drilling Depth:	30 Meters
Hole Diameter:	Customized	Weight:	500kg
Voltage:	380v	Certification:	ISO9001
Power Type:	Diesel	Condition:	New
Warranty:	1 Year	Application:	DTH Drilling ,,borewell Machine ,Water Well Drilling ,Geological Exploration,
After-sale Service:	Video Support	Packing:	Wooden Box
Highlight:	customized core drill rig , 30 meters depth core drill rig , 30 meters depth core drilling machine

ST 30 Geological Core Drilling Machine

Product Specifications

Attribute	Value
Product Name	ST 30 Geological Core Drilling Machine
Drilling Depth	30 Meters
Hole Diameter	Customized
Weight	500kg
Voltage	380v
Certification	ISO9001
Power Type	Diesel
Condition	New
Warranty	1 Year
Application	DTH drilling, borewell machine, Water Well Drilling, Geological Exploration
After-sale Service	Video Support
Packing	Wooden Box

Product Introduction

The ST 30 is a small portable oil pressure feeding drilling machine, primarily used for general survey exploration, geophysical exploration, road and construction projects, blasting hole drilling, shallow oil and natural gas drilling, groundwater drilling, as well as embankment grouting, tunnel ventilation, and drainage engineering drilling.

Technical Specifications

Hole Diameter (mm)	110 (soil condition)	91	75	60	46
Drilling Depth (m)	5~10	10~15	15~20	20~25	30
Output Speed (r/min)	200~570
Torque	130N*m
Motor	Model 1P75FA, Power: 4.5KW, Speed: 2000-3600r/min
Size	600×650×2330mm
Total Weight	95kg

Key Advantages

Hydraulic cylinder for high efficiency operation
Wheel walking mechanism for convenient transport and level adjustment
Pressure gauge displays drill hole bottom conditions
Diesel engine with electric starter reduces labor intensity

Applications

This lightweight, multi-purpose micro-engineering rig is suitable for geological surveys, geophysical prospecting, advanced drilling, grouting, and embedding in various industries including industrial and civil construction, bridges, railways, highways, and hydropower projects. It can also be used for blasting holes, check holes, and small household wells.

Soil Sampling Method

Samples should be taken according to soil type and crop variety distribution, with sampling points arranged in a zigzag or snake pattern for uniform coverage. Sampling depth is typically 0-20cm, determined by cultivated layer thickness. Late summer or early fall is the optimal sampling time for most crops.

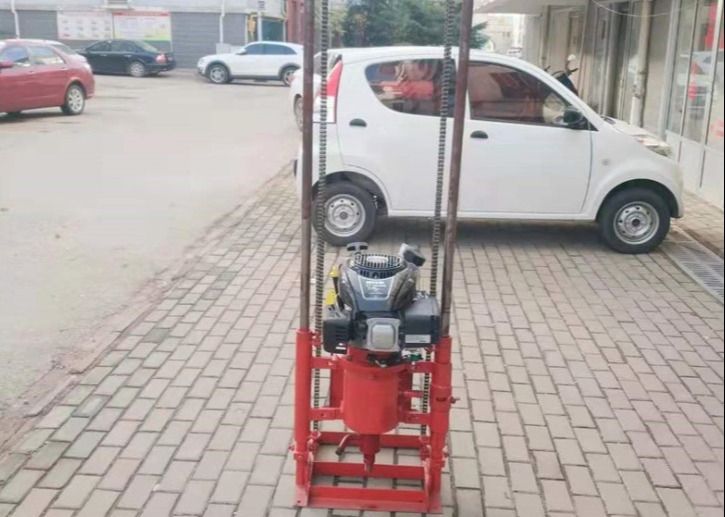

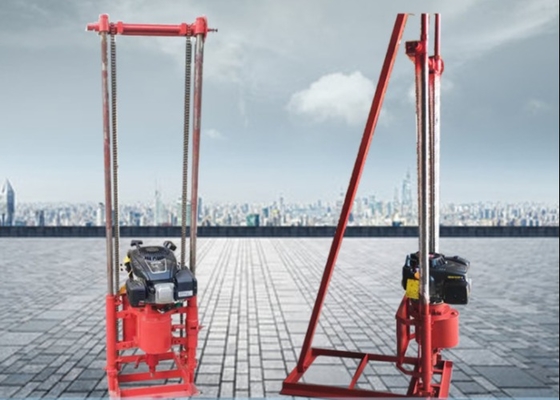

Product Images
