150 Meters Small Borewell Machine For Soil Testing Sample Collection

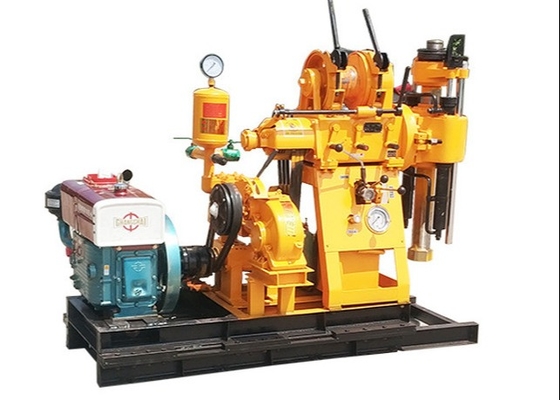

Large Image : 150 Meters Small Borewell Machine For Soil Testing Sample Collection

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	XY-1A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Name:	Customized 150 Meters Investigation Engineering Soil Test Drilling Machinery	Type:	Rotary Drilling Rig
Power Type:	Diesel	Usage:	Water Well Drilling Rig,geological Exploration
Voltage:	380V	Power(W):	15KW
Weight:	1200KGS	Certification:	ISO9001
Other Name:	Drill Rig	Drill Rod Diameter:	42, 50mm
Condition:	New	After-sales Service Provided:	Video Technical Support
Highlight:	customized soil test drilling machine , 150 meters soil test drilling machine , investigation engineering soil testing drill rigs

Customized 150 Meters Small Borewell Machine For Soil Testing Sample Collection

Product Specifications

Name	Customized 150 Meters Investigation Engineering Soil Test Drilling Machinery
Type	Rotary Drilling Rig
Power Type	Diesel
Usage	Water well drilling rig, geological exploration
Voltage	380V
Power	15KW
Weight	1200KGS
Certification	ISO9001
Drill rod diameter	42, 50mm
Condition	New
After-sales service	Video technical support

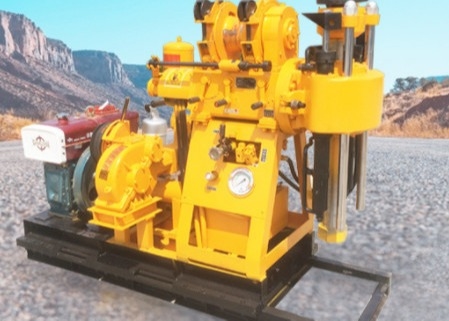

XY-1A Soil Test Drilling Machine Introduction

The XY-1A drilling rig is widely used for water well drilling, geological exploration and prospecting, geothermal wells, blast-hole drilling, and irrigation projects. With a maximum drilling depth of 150 meters and hole diameter of 150mm, this machine is ideal for engineering geological exploration of industrial and civil buildings, railways, hydropower projects, transportation infrastructure, bridges, and dam foundations.

Technical Parameters

Component	Specification	Component	Specification
Drilling depth	Max. 150m	Spindle speed	1010, 790, 470, 295, 140 (r/min)
Hole diameter	Max. 150mm	Spindle stroke	450mm
Drill rod diameter	42, 50mm	Spindle pull-down	Max. 15KN
Angle range	90-75°	Spindle lifting capacity	Max. 25KN
Oil Pump
Model	YBC-12/125	Model	Horizontal reciprocating single-acting piston pump
Rated pressure	12.5Mpa	Working pressure	Max. 1.25Mpa
Flow speed	8ml/r
Rated speed	1500r/min
Hoist & Power
Max. lifting capacity	15KN	Model (diesel engine)	1105
Hoisting drum revolution	121, 76, 36 (r/min)	Rated power	18KW
Drum diameter	140mm	Rated speed	2200r/m
Weight	Approx. 600KG	Size	1620×970×1560mm

Key Features

Compact spindle drilling machine ideal for shallow hole core drilling with diamond or tungsten carbide bits
Hydraulic feeding mechanism reduces physical labor intensity
Ball clamp clamping mechanism enables rod reversing without stopping
Flexible positioning options with movable machine or gyrator
Lightweight design (600kg) with strong decomposability for easy transportation
Suitable for various geological conditions (grade 2-9 sandy clay and weathered bedrock)
Multiple bit options available (alloy, steel particle, diamond) for different formations
Ideal for geological survey, geophysical exploration, foundation testing, and blast-hole drilling

Our Service

24/7 online support with quick response to inquiries
Professional product introduction with detailed pictures and working videos
Comprehensive technical support via various communication channels

Soil Sampling Method

The XY-1A drilling rig creates excavation holes for soil density measurement. The hole is filled with uniform sand of known dry density, and the volume is calculated by dividing the mass of sand by its dry density.
