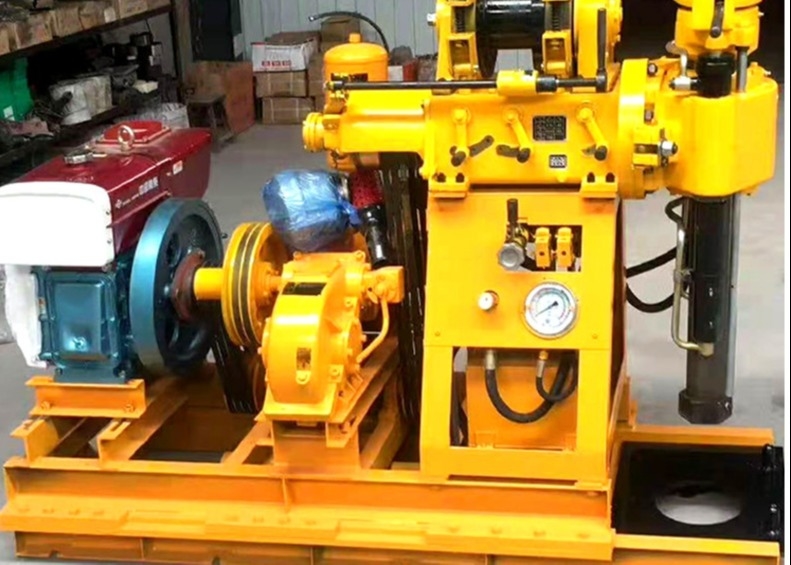

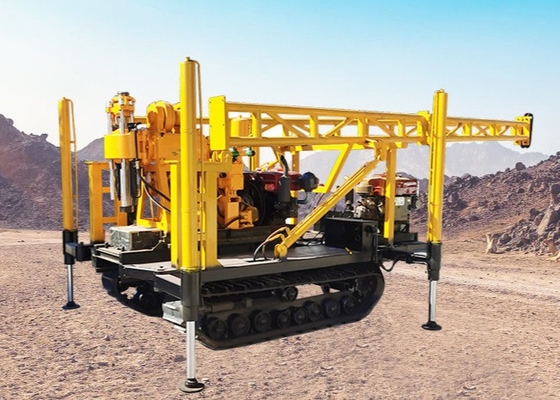

200 Meters Soil Testing Boring Machine High Speed Efficiency Flexible Movement

200 Meters Soil Testing Boring Machine High Speed Efficiency Flexible Movement
200 Meters Soil Testing Boring Machine High Speed Efficiency Flexible Movement
video play

Large Image :  200 Meters Soil Testing Boring Machine High Speed Efficiency Flexible Movement

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: GK-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: 200 Meters High Speed Efficiency Flexiable Movement Soil Testing Drilling Machine Hole Diameter: Customized
Drilling Depth: 200 Meters Voltage: 380v
Rated Boring Diameter: 200m Certification: ISO9001
Power Type: Diesel Condition: New
Warranty: 1 Year Weight: 500kg
Diameter: Customized Application: Water Well Drilling ,Geological Exploration
High Light:

200 meters soil testing boring machine

,

flexible movement soil testing boring machine

,

high speed soil test drilling machine

200 Meters High Speed Efficiency Flexiable Movement Soil Testing Drilling Machine





GK 200 Soil Testing Drilling Machine Introduction



GK 200 is widely utilized and featured in high power and hoisting load(2T), large torque transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min. It is suited for the geotectonic survey, geological core drilling, small hole drillings for grout, blast and water well in railway, water coservancy, bridge, dam foundation and other constructions.



GK 200 Soil Testing Drilling Machine Parameter:



Rated drilling depth 200m
Rated boring diameter 200mm
Vertical shaft rotation speed (4 shifts) 118, 236, 505, 1010.r/min
Vertical shaft max. output torque 1500N*m
Max. hositing weight single line) 17KN
Drilling rod diameter 42mm
Drilling dip angle 90~75°
Drill outside diameter (L*B*H) 1433*697*1273mm
Drill weight 500kg
max. boring diameter 300mm



GK 200 Soil Testing Drilling Machine Feature:



1. With hydraulic automaatic feeding device, elevated drilling efficiency.

2. Large torque and drilling diameter.

3. With a spherial jaw holding mechanism and the rod replacement without breakdwn, high efficiency.

4. Compact structure, small volume, lightweight, high detachability, easy transportation

5. Adoping large drive pipe, double guide rod, increase the stability.



FAQ OF GK 200 Soil Testing Drilling Machine



Q1. What is the advantage about your company?

A1. Our company has professional team and professional production line.

Q2. Why should I choose your products?

A2. Our products are high quality and low price.

Q3. The logo and the color can be customized?

A3. Yes, we welcome you to sample custom.

Q4. Any other good service your company can provide?

A4. Yes,we can provide good after-sale and fast delivery.



Specific steps of soil sampling method



1. Distribution: samples shall be taken according to the soil type and the distribution of crop varieties, and according to the different soil fertility. The sampling points are distributed in zigzag or snake shape, which should be as uniform and random as possible.

2. Determine the sampling position and depth: the sampling position and depth shall be determined according to the thickness of the cultivated layer. Generally, the sampling depth is 0-20cm



GK 200 drilling rig  Delivery and Packing



200 Meters Soil Testing Boring Machine High Speed Efficiency Flexible Movement 0

200 Meters Soil Testing Boring Machine High Speed Efficiency Flexible Movement 1200 Meters Soil Testing Boring Machine High Speed Efficiency Flexible Movement 2
