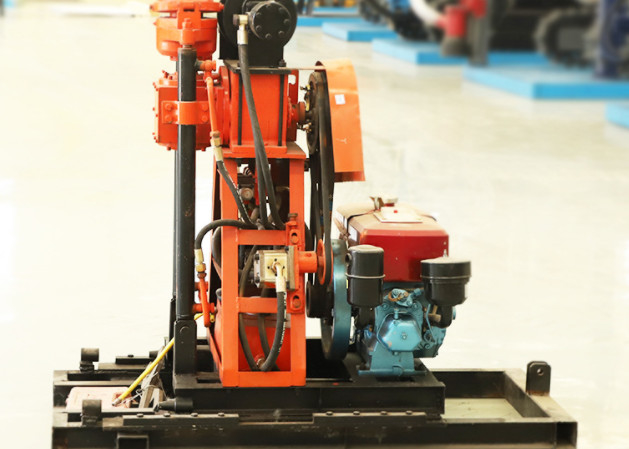

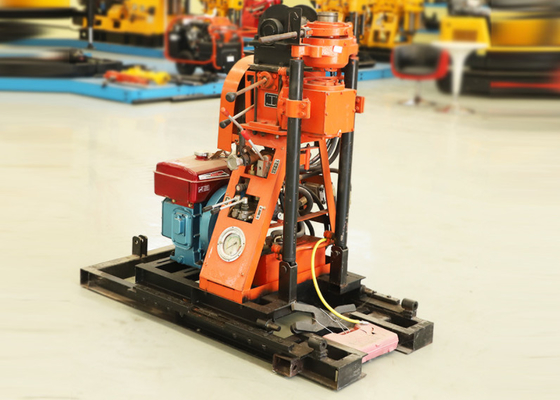

Farmhouse Lightweight Small Water Well Drilling Rigs Fifty Meters Depth

Farmhouse Lightweight Small Water Well Drilling Rigs Fifty Meters Depth
Farmhouse Lightweight Small Water Well Drilling Rigs Fifty Meters Depth Farmhouse Lightweight Small Water Well Drilling Rigs Fifty Meters Depth

Large Image :  Farmhouse Lightweight Small Water Well Drilling Rigs Fifty Meters Depth

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: ST 50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 3 days
Payment Terms: T/T, Western Union
Supply Ability: 5000 sets per year
Detailed Product Description
Product Name: ST 50 Water Well Drilling Rig Hole Diameter: Customized
Drilling Depth: 50 Meters Voltage: 380v
Application: Soil Testing Drilling Machine,Water Well Drilling ,Geological Exploration OEM: Acceptable
Certification: ISO9001 Power Type: Diesel
Condition: New Warranty: 1 Year
Weight: 145kg Diameter: Customized
High Light:

farmhouse small water well drilling rigs

,

lightweight small water well drilling rigs

,

fifty meters water well drilling machine

ST 50  Lightweight Diesel Engine Water Well Drilling Rig





ST 50 Water Well Drilling Machine​ Introduction



It  is 50 meters drilling depth,mainly used for geothermal drilling, farm irrigation, house yard, gardens and water well drilling, drilling diameter is 50mm , It also can be used in small building piling, like farmhouse or factory and so on



ST 50 Water Well Drilling Machine​ Technical Data



Drilling Rig Model ST50 drilling rig
Drilling depth (m) The max. 50 meter
Hole size diameter 73-108mm
Drill pipe diameter 42mm
Vertical spindle speed 70-650
Reverse rotation speed 50-130
Power 5.7KW
Outsize 1180×680×1600mm

Weight

(including Gasoline engine )

208kg



ST 50 Water Well Drilling Machine Advantages:



1.Equipped with diesel engine or single-phase and three-phase electric power.
2, Wide usage range: the dimension is less than 1 square meters, height can be controlled within 2.6 meters, weight is about 100kg, so that can be outdoor operations, but also for indoor use.
3, Can borehole with spiral drill pipe and drag bit , use core barrel for sampling, water circulation drill for water wells.

The machine has the advantages of small dimension, weight is 100 kg, easy to carry and to operate in the narrow space, it is best mini exploration and drilling operators assistant! the rigs has design with Reasonable structure, simple, easy to handle, easy to use, recommended diameter of 120 mm or less, depth of about 80 meters. total height of less than 2.6 meters, can work in the room. can be drill 10 to 20m in soft formation.



ST 50 Water Well Drilling Machine Main Applications



The rig is suitable for geological drilling in complex terrains such as mountains, hills, and rivers, engineering geological survey of buildings, and drilling of blast holes. In order to meet the needs of different users, the rig can be equipped with one of the three powers of diesel engine, gasoline engine or motor.



Four aspects of rural water wells



1, Select appropriate well type

The well types of water source wells are divided into deep wells, large wells, counterpart pumping wells, foreign wells, and small-diameter tube wells. In areas with abundant deep groundwater, it is appropriate to drill deep wells. In areas with abundant shallow groundwater, it is appropriate to drill large wells, counterpart pumping or small-diameter tube wells.

2, Reasonable well layout

The location and layout of wells shall be reasonably arranged according to the local actual hydro geological conditions. If there is no hydro geological data, refer to the existing water source wells around as the basis for the layout of wells. In areas where shallow groundwater is not abundant, shallow wells should not be drilled blindly; In areas with abundant shallow groundwater, it is suitable for farmers to build their own shallow wells, but the well hole layout should not be too dense to avoid the interaction between adjacent water source wells.

3, Configure appropriate water pump

After the well is completed, measure the water level of the water outlet well and the corresponding water output according to the drainage condition of the drilling machine, and then determine the total head of the water pump according to the height difference from the ground to the dynamic water level and the irrigation method you adopt, and the required working head of the water pump. The flow of the water pump shall not exceed the water flow through the well. The corresponding water pump shall be purchased on the premise of the above two items.



Farmhouse Lightweight Small Water Well Drilling Rigs Fifty Meters Depth 0Farmhouse Lightweight Small Water Well Drilling Rigs Fifty Meters Depth 1

Farmhouse Lightweight Small Water Well Drilling Rigs Fifty Meters Depth 2
