Small Hydraulic Water Pump Soil Test SPT Soil Test Drilling Machine
GK200 Brief introduction of drilling rig
GK200 Core drilling rig is suited for the applications of general exploration and investigation, geophysical prospecting. Road and construction survey, blast holes and other drilling operations.
With hydraulic automatic feeding device. Elevated drilling efficiency.
The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
Centralized handle, easy operation, safe and reliable.

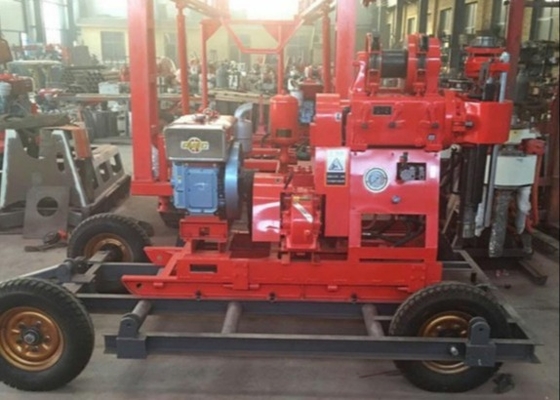

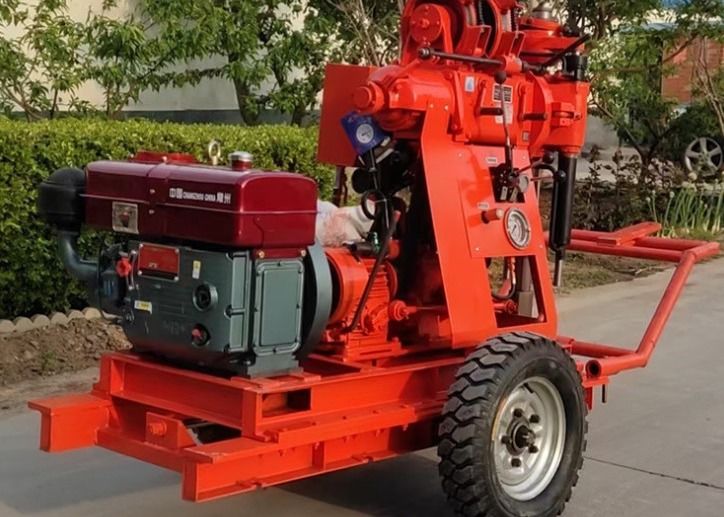

The drilling machine,pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
GK200 Hydraulic Portable 200m Water Well Drilling Machine
| Drilling depth |
200m |
| Open hole diameter |
75-300mm |
| End hole diameter |
75mm |
| Active drill rod |
53/59*4200mm |
| Rod diameter |
50,60mm |
| Drill angle |
90°-75° |
| Matched power(diesel power) |
15kw/2200r/min |
| Dimension |
2800*950*1700mm |
Engineering Drilling Rig Features:
1.With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
2.The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without
shutdown, high efficiency, safe and reliable.
3. A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole.
4.Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains
Engineering Drilling Rig structure
1.1.1 The rig is suitable for survey and prospecting, geophysical exploration, roads and buildings and other exploration and play blasthole drilling bits projects.
1.1.2 Drilling bits can be chosen according to different strata .
1.2 Rig Features
1.2.1 hydraulic automatic feed mechanism, improve drilling efficiency, reduce manual labor workers.
1.2.2. Ball holding mechanism instead of using the chuck, can implement non-stop down the lever, easy to operate, safe and reliable.
1.2.3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.
1.2.4 The handle centralized, easy to operate.
1.2.5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.
Engineering Drilling Rig advantage
It is especially suitable for construction in the environment of large cutting in mountainous terrain or in forest areas. The installation of drilling rig only needs 4 × 4m or even smaller flat site. There is no need to build temporary transportation roads, solve the massive excavation of earth and ShiTan or cutting down more trees during leveling machine, reduce the damage to vegetation and environment, and reduce the amount of compensation for temporarily leased land for drilling, so as to protect the construction site and surrounding environment to the greatest extent.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
