300 Meters Mining Drilling Equipment For Soil Testing Samples

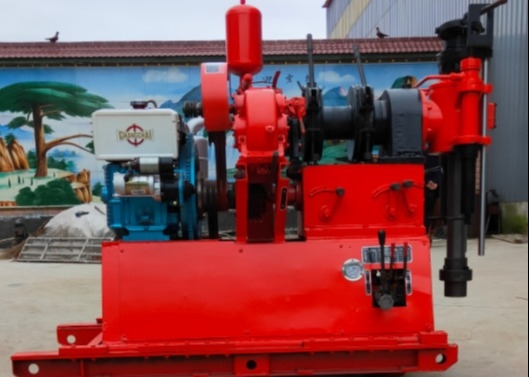

Large Image : 300 Meters Mining Drilling Equipment For Soil Testing Samples

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO9001
Model Number:	GY-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7 days
Payment Terms:	T/T, Western Union
Supply Ability:	5000 sets per year

Contact Now

Detailed Product Description

Product Name:	GY200 Soil Test Drilling Rig	Drilling Depth:	300 Meters
Hole Diameter:	Customized	Weight:	500kg
Voltage:	380v	Rated Boring Diameter:	200m
Certification:	ISO9001	Power Type:	Diesel
Condition:	New	Warranty:	1 Year
Highlight:	300 meters soil test drilling machine , survey soil test drilling machine , 300 meters soil testing drill rigs

GY200 Soil Test Drilling Rig - 300 Meters Mining Drilling Equipment

Product Specifications

Attribute	Value
Product Name	GY200 Soil Test Drilling Rig
Drilling Depth	300 Meters
Hole Diameter	Customized
Weight	500kg
Voltage	380v
Rated Boring Diameter	200m
Certification	ISO9001
Power Type	Diesel
Condition	New
Warranty	1 Year

Product Overview

The GY200 is a portable multi-purpose engineering survey and construction drilling rig, suitable for geological exploration of industrial, civil buildings, railways, bridges, and hydropower projects, as well as the construction of small-diameter foundation pile holes.

Technical Specifications

Parameter	Value
Borehole diameter	75,91,110,130,150,300mm
Drilling depth	0-300m
Drill pipe diameter	42,50,60mm
Angle range	0°-360°
Size(LWH)	18607801480mm
Weight(without power unit)	900kg
Spindle speed(8-speed)	53,92,145,200,250,435,668,947 r/Min
Spindle stroke	500mm
Upward max speed of spindle(no load)	0.05m/s
Downward max speed of spindle(no load)	0.067m/s
Max feeding force of spindle	36KN
Max lifting force of spindle	49KN
Max output torque of spindle	2500N.m

Key Features

Automatic oil pressure feeding mechanism improves drilling efficiency and reduces physical labor
Ball clamping mechanism replaces traditional chuck
Equipped with hole bottom pressure gauge for precise pressure monitoring
Centralized handle design for easy operation
Compact structure with drilling rig, water pump and diesel engine on single base
Lightweight with strong decomposability for easy movement in various terrains
Suitable for general survey, geophysical exploration, and construction projects
Multiple bit options for different formations (alloy, steel sand, steel particle)
Capable of drilling sandy clay and bedrock of grade 2-9

Core Drilling Principle

The drilling rig operates by using power from the drill to drive the drill pipe and bit, obtaining deep core samples. Different rig types are available for various depths and strata.

Operation Guidelines

Installation: Prepare rock drilling cavern with appropriate dimensions (2.6-2.8m height for horizontal holes, 2.5m width for vertical/inclined holes). Install air/water pipelines and lighting. Securely erect columns with proper padding.

Pre-Operation Check: Verify all connections for leaks, check oil levels, ensure all fasteners are tight, and confirm column stability.

Drilling Procedure: Start motor, apply proper propulsion force, engage impactor, maintain proper air/water mixture. For continuous operation, reverse motor to disconnect/connect drill pipes as needed.

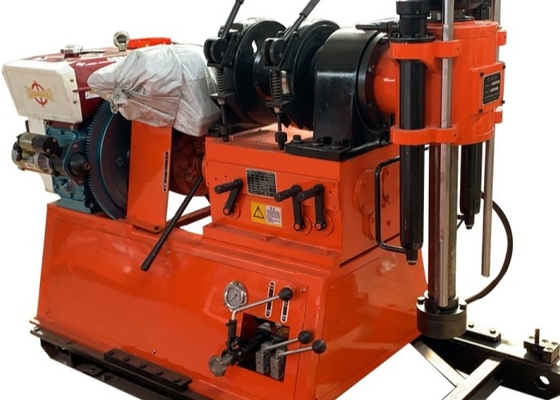

Product Images
