| Certification: | ISO9001 | Product Name: | 380v Diesel Engine Multi Engineering Geological Drilling Rig |
|---|---|---|---|
| Hole Diameter: | Customized | Drilling Depth: | 200 Meters |
| Voltage: | 380v | Rated Boring Diameter: | 200m |
| Power Type: | Diesel | Condition: | New |
| Warranty: | 1 Year | Weight: | 500kg |
| Diameter: | Customized | Application: | Water Well Drilling ,Geological Exploration |
| High Light: | 380v water well drilling rig,multi purpose water well drilling rig,diesel small water well drilling equipment |
||
380v Diesel Engine Multi Drilling Purpose Water Well Drilling Rig Machine With 200 Meters

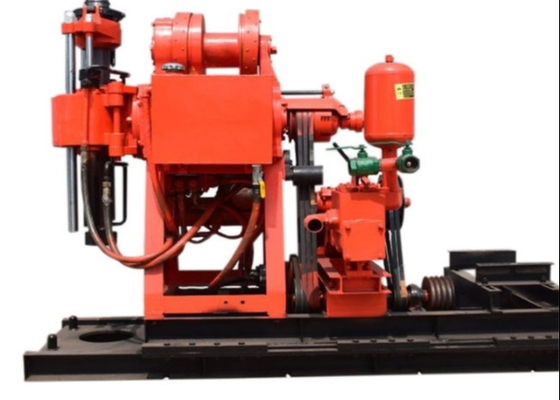

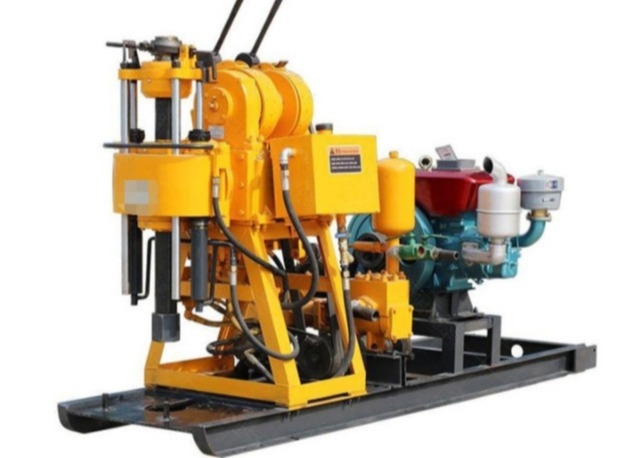

GK 200 Water Well Drilling Rig Profile
The drilling rig is a portable shallow hole drilling rig with oil pressure feed. It is suitable for general survey exploration, geophysical exploration, road and building exploration and small water well drilling.Its drilling depth is 200 meters,hole diameter is 295mm.
GK 200 Water Well Drilling Rig Tech Data
|
Drilling depths |
200m |
|
Drilling hole Diameter |
91mm,110mm,130mm,150mm,300mm |
|
Drilling rod diameter |
50mm |
|
Drilling Angle |
90°-75° |
|
Dimensions(L×W×H) |
1750×850×1300 (mm) |
|
Weight |
880kg/set |
|
Swivel Head |
|
|
Spindle Speed |
115, 230, 505, 790, 1010 r/min |
|
Spindle stroke |
450mm |
|
Spindle Dia. |
Φ59mmx53mmx4350mm Kelly rod |
|
Upward displacement speed of drilling vertical spindle |
0.05m/s |
|
Downward displacement speed of drilling vertical spindle |
0.067m/s |
|
Spindle pull-down max |
15KN |
|
Spindle lifting capacity max |
25KN |
|
Vertical maximum output torque |
1.5KN.m |
|
Max. Lifting capacity(single rope) |
20KN.m |
|
Lifting rotating speed |
20; 40; 90; 168r/min |
|
Hoisting drum linear velocity (two levels) |
0.17; 0.35; 0.73; 1.5m/s |
|
Drum Diameter |
140mm |
|
Wire rope diameter |
9.3mm |
|
Wire rope capability |
40m |
GK 200 Water Well Drilling Rig Features
1) hydraulic feeding structure, drilling efficiency and reduce workers' labor intensity.
Well drilling rig main attentions
1. the bolts and nuts of water and gas pipelines and various accessories of the drilling rig are firm at any time
2. . Always check the lubricating oil condition of the wind motor
3. . When the working face is immersed in water, a large-diameter drill head shall be used to insert the drill pipe when opening the hole, so that the drill pipe is 1-2 meters above the water surface to prevent mud and rock slag from falling into the hole
How do you drill a hard rock?
Drilling into hard rock is performed based on the principle of rotary percussive drilling. Top hammers are used for this purpose. Air is the flushing medium usually used to flush drill cuttings from the borehole. A dust exhaust collects the drilling dust expelled.
