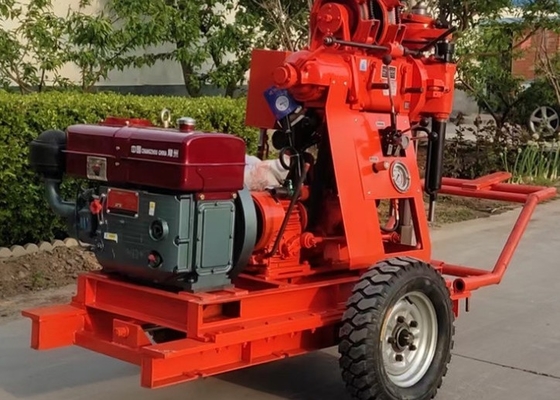

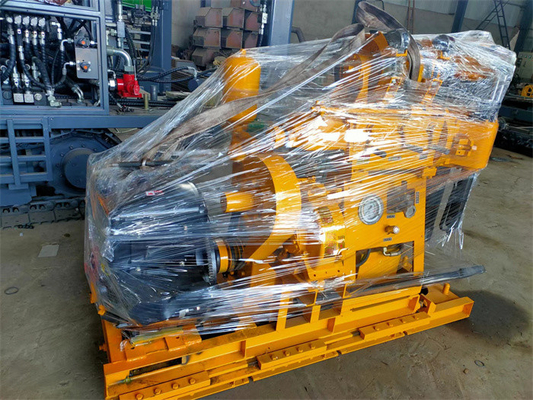

GK 200 Exploration Engineering Drilling Rig
Drilling Rig Introduction
The rig equipped with a ball on a cassette holding mechanism and a six driving drill pipe.double guide,the drilling rod can be replaced without shutdown -high efficient,convenient operation,safe and reliable
Drilling Rig Technical Data
|
Drill rig specification
|
|
Drilling depth
|
200m
|
|
Drilling Diameter
|
91mm,110mm,130mm,150mm,300mm
|
|
Drilling rod diameter
|
50mm
|
|
Drilling Angle
|
90°-75°
|
|
Dimensions(L×W×H)
|
1750×850×1300 (mm)
|
|
Weight
|
880kg/set
|
|
Swivel Head
|
|
Spindle Speed
|
115, 230, 505, 790, 1010 r/min
|
|
Spindle stroke
|
450mm
|
|
Spindle Dia.
|
Φ59mmx53mmx4350mm Kelly rod
|
|
Upward displacement speed of drilling vertical spindle
|
0.05m/s
|
|
Downward displacement speed of drilling vertical spindle
|
0.067m/s
|
|
Spindle pull-down max
|
15KN
|
|
Spindle lifting capacity max
|
25KN
|
|
Vertical maximum output torque
|
1.5KN.m
|
|
Hoist
|
|
Max. Lifting capacity(single rope)
|
20KN.m
|
|
Lifting rotating speed
|
20; 40; 90; 168r/min
|
|
Hoisting drum linear velocity (two levels)
|
0.17; 0.35; 0.73; 1.5m/s
|
|
Drum Diameter
|
140mm
|
|
Wire rope diameter
|
9.3mm
|
|
Wire rope capability
|
40m
|
GK 200 Customized Engineering Drilling Rig Features
It has hydraulic feeding structure, drilling efficiency and reduce workers' labor intensity. The drilling rig is equipped with upper ball clamp clamping mechanism and hexagonal active drill pipe, which can reverse the rod without stopping, with high working efficiency, convenient and reliable operation. It is equipped with a hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole.The handle is centralized and easy to operate.The drilling rig has the advantages of compact structure, small volume, light weight, strong decomposition and easy relocation. The loading form is trailer type, crawler type and disassembly. It is suitable for working in plain or mountainous areas.
Method of installing core tube:
Buckle the lifter into the groove of the variable diameter joint, move the right handle of the winch to take the pad fork, take out the perforated pipe, install the core tube, lift the drilling tool to the top of the borehole, move the left handle of the winch continuously, and lower the drilling tool into the borehole at a uniform speed. When the groove of the variable diameter joint is close to the inlet, use the pad fork to block and remove the lifter.
