Crawler Type Water Borehole Drilling Machine Farming Underground 200m Depth

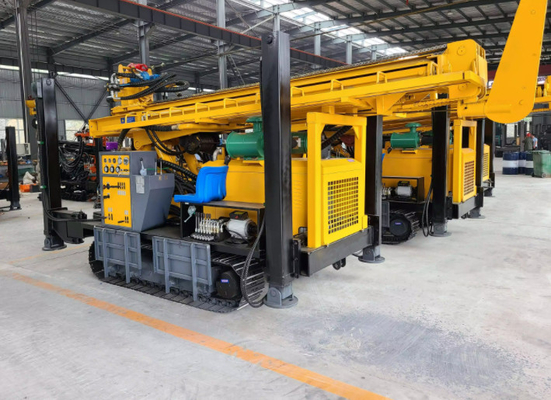

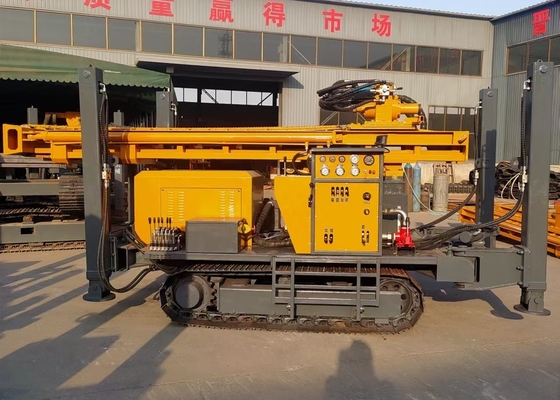

Large Image : Crawler Type Water Borehole Drilling Machine Farming Underground 200m Depth

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Large Pneumatic Water Well Drilling Rig	Model Number:	ST 200
Machine Type:	Drilling Equipment	Certification:	ISO
Hole Diameter:	Customized	Drilling Depths:	200 Meters
Condition:	New	Weight:	8.9 T
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min	After-sale Service:	Video Support
Highlight:	crawler type borehole drilling rig , 200m depth water borehole drilling machine , 200m depth water borehole drilling machine

ST 200 Pneumatic Water Well Drilling Rig

Product Specifications

Model Number	ST 200
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized
Drilling Depths	200 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation Torque	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min
After-sale Service	Video support

Product Description

The ST 200 pneumatic drilling rig is specifically designed for water intake in mountainous and rocky strata. This versatile drilling equipment works in conjunction with an air compressor and can be enhanced with additional mud pumps and foam pumps for various drilling applications.

Technical Details

Type: Water Well Drilling Rig
Power Type: Diesel
Dimensions: 6400MM × 2250MM × 2700MM
Weight: 5800KG
Drilling Diameter: 90-152mm
Depth Capacity: 25M
Rotary Speed: 0-90rpm
DTH: K40
Drilling Rods: 76×2m + 76×3m
Air Consumption: 13-20m3/min
Traveling Speed: 0-2.5km/h

Key Features

Lightweight yet powerful design for efficient operation
Multifunctional capabilities for various drilling applications
Compact structure with fast advancing capability
Highly mobile and flexible for diverse terrain
Ideal for industrial, civil, and geothermal drilling
Exceptionally suitable for mountainous and rocky strata

Installation & Maintenance

Our drilling rig comes with comprehensive installation support for complex machinery setup. After installation, we conduct thorough machine inspections, operational testing, and provide detailed installation and operation data reports to ensure optimal performance.

Advanced Drilling Techniques

Pebble Layer Drilling: Our specialized diamond drilling tools combined with vegetable gum washing fluid offer superior performance in hard formations with small rotary resistance, high efficiency, and excellent coring quality.

Quicksand Formation Handling: We recommend increasing drilling fluid viscosity and bentonite content (minimum 10%) with added sealants for effective wall building. Proper displacement reduction and thick mud application ensure smooth equipment operation in challenging conditions.
