Easy Movement Electric Water Well Drilling Machine St 50

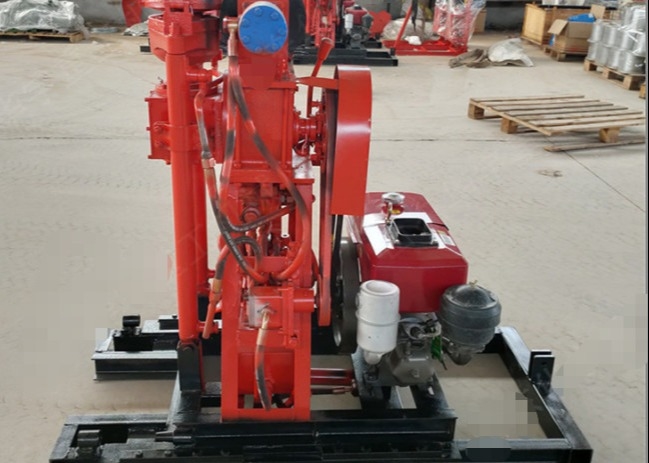

Large Image : Easy Movement Electric Water Well Drilling Machine St 50

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO9001
Model Number:	ST 50

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	3 days
Payment Terms:	T/T, Western Union
Supply Ability:	20000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 50 Engineering Drilling Rig	Hole Diameter:	Customized
Drilling Depth:	50 Meters	Voltage:	380v
Application:	Soil Testing Drilling Machine,Water Well Drilling ,Geological Exploration	OEM:	Acceptable
Certification:	ISO9001	Power Type:	Diesel
Condition:	New	Warranty:	1 Year
Weight:	145kg	Diameter:	Customized
Highlight:	easy movement geological drilling rig , geo survey geological drilling rig , wheels mounted exploration drilling rig

ST 50 Engineering Drilling Rig

Easy Movement Geo-Survey Wheels Mounted Engineering Drilling Rig ST 50

Attribute	Value
Product Name	ST 50 Engineering Drilling Rig
Hole Diameter	Customized
Drilling Depth	50 Meters
Voltage	380v
Application	Soil Testing Drilling Machine, Water Well Drilling, Geological Exploration
OEM	Acceptable
Certification	ISO9001
Power Type	Diesel
Condition	New
Warranty	1 Year
Weight	145kg

Product Description

The ST 50 Engineering Drilling Rig is designed for 50 meters depth with 75mm hole diameter capability. Compared with similar products, it offers advantages including light weight, simple structure, fast drilling speed, and large diameter coring sample capacity.

Technical Specifications

Specification	Value
Max Open Hole Diameter	75-108mm
End Hole Diameter	56-75mm
Main Drill Pipe	50/1000mm
Max Depth	50m
Diesel Engine	8hp/5.8kw Diesel engine 2200r/min
Drilling Pipe Length	1000mm
Drilling Angle	90°
Drilling Pipe Diameter	42mm
Vertical Shaft Speed	285-570r/min
Vertical Shaft Stroke	1000mm
Lifting Power	300kgs
Additional Pressure	200kg
Mud Pump Model	BW-50
Flow	50L/min
Max Pressure	1.2MPA
Reciprocal Time	63times/min
Input Water Pipe Diameter	55mm*2.5m
Output High Pressure Water Pipe Diameter	20mm*10m
Overall Dimensions	14006001600mm
Weight	240kgs

Key Features

Hydraulic feed system with high, medium and low speed options
Lightweight and portable design for easy transportation
Simple structure for easy operation and maintenance
Fast drilling speed with large diameter coring capability
Ideal for challenging terrains including mountains, hills, and rivers
Suitable for various applications including geological surveys, core drilling, and small well drilling

Drilling Tool Maintenance

Organize and use pipes, joints, and couplings according to condition
Regularly check for bending and wear during operation
Avoid using sledge hammers on drill pipes and joints
Do not force operation when encountering excessive resistance
Apply appropriate weight on bit for optimal drilling performance

Operation Method

Secure the rig and hoist, connect the wire rope to the winch using a U-shaped ring. Start the engine to activate the hoist, wrap the wire rope around the drum, and guide it through the tower sheave. Connect the wire rope ends to the rig using the U-shaped ring, assemble the derrick, and position the four-corner frame from the vertical shaft hole to the well location.
