Rubber Crawler Mounted Pneumatic Drilling Rig - 180 Meters Depth
Product Specifications
| Attribute |
Value |
| Product Name |
Rubber Crawler Mounted 180 Meters Depth Pneumatic Drilling Rig |
| Color |
Red Yellow |
| Feature |
High Drilling Efficiency |
| Usage |
Water Well, Exploration, Soil Testing |
| Application |
Water Well Drilling |
| Power Type |
Diesel |
| Drilling Depth |
180 meters |
| Warranty |
1 Year |
| Voltage |
220V/380V |
| Length of Drill Pipe |
3m |
| Condition |
New |

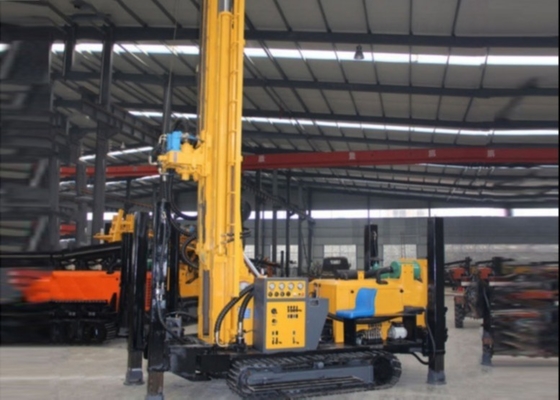

ST 180 Pneumatic Drilling Rig Overview
The ST 180 Pneumatic drilling rig is designed for rock drilling operations when connected with an air compressor. This high-performance rig delivers fast drilling speeds of 20-40 meters per hour, powered by a robust 63kw diesel engine for maximum efficiency.
Technical Specifications
| Item NO. |
ST-180 |
Air consumption(m³/min) |
17-31 |
| The Weight(T) |
4.5 |
Equipped capacitor(Kw) |
55 |
| Dimensions(mm) |
3800*1550*2350 |
Swing speed(rpm) |
45-65 |
| The hole diameter(mm) |
140-254 |
Swing torque(N.m) |
3200-4600 |
| Drilling Depth(m) |
180 |
Drill pipe diameter(mm) |
76 89 |
| Once-time advance length(m) |
3.3 |
Drill pipe length(m) |
1.5 2.0 3.0 |
| Walking speed(Km/h) |
2.5 |
Rig lifting force(T) |
10 |
| Climbing angles(Max.) |
30 |
Supporting Power |
29m3/min 23BAR AIR COMPRESSOR |
| Using air pressure(Mpa) |
1.7-2.5 |
|
|
Key Advantages
- High efficiency diesel engine with drilling rates of 20-40M/Hour
- Large rotary torque (6000-6500N.m) for demanding applications
- Integrated automation with all-terrain mobility
- Durable design for extended service life
- Self-loading/unloading system for easy operation
Drill Pipe Connection Procedure
- Stop propulsion and rotation when reaching drill pipe depth
- Operate clamping handle to secure drill pipe with gripper
- Reverse rotation while retracting feed oil cylinder
- Return chuck to position using fast backward handle
- Connect new drill pipe and resume rotation
Frequently Asked Questions
What types of drilling rigs do you offer?
We manufacture hydraulic drilling rigs, water well drilling rigs, core drilling rigs, and geological exploration drilling rigs, with models tailored to specific requirements.
Where is your company located?
Our manufacturing facility is in Jinzhou, Shijiazhuang City, Hebei Province, China.
Are you a manufacturer?
Yes, we are an ISO-certified manufacturer with 20 years of experience and a modern drilling rig production facility.
What is your delivery time?
Small hydraulic rigs: 5-7 days; Large pneumatic rigs: 7-15 days. Expedited options available.
What is your warranty policy?
1-year warranty on the complete machine (excluding consumable parts).
