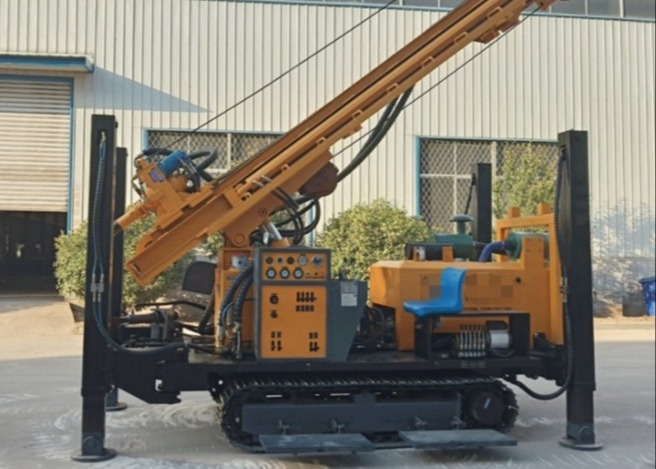

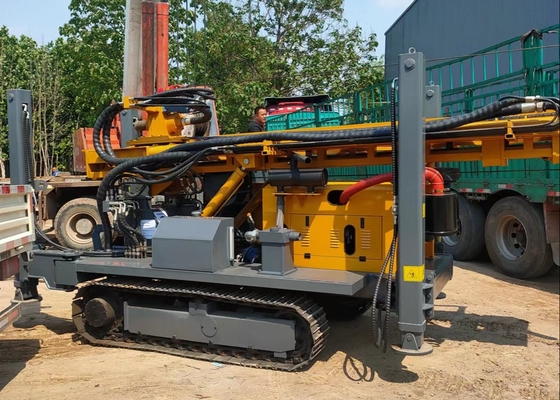

Pneumatic Water Borehole Machine 450 Meters Deep Underground Rocky Drilling

Pneumatic Water Borehole Machine 450 Meters Deep Underground Rocky Drilling
Pneumatic Water Borehole Machine 450 Meters Deep Underground Rocky Drilling
video play

Large Image :  Pneumatic Water Borehole Machine 450 Meters Deep Underground Rocky Drilling

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST 450
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 20000 sets per year
Contact Now
Detailed Product Description
Product Name: ST 450 Meters Deep Water Well Pneumatic Drilling Machine Color: Red Yellow Blue
Feature: High Drilling Efficiency Application: Water Well Drilling
Power Type: Diesel Drilling Depths: 350 Meters
Drilling Hole Diameters: 105-305 Mm Warranty: 1 Year
Voltage: 220V/380V Length Of Drill Pipe(mm): 3m
Condition: New After-sale Service: Working Video Support
Highlight:

pneumatic water borehole machine

,

450 meters water borehole machine

,

450 meters borehole drilling machine

ST 450 Meters Deep Water Well Pneumatic Drilling Machine
Product Overview

The ST 450 Meters Hydraulic Crawler Drilling Machine is designed for water well drilling, irrigation wells, ground source heating pump wells, and other borehole applications. It excels in mountain and rock formation projects with a drilling depth of 450 meters and hole diameter range of 105-350mm.

Key Attributes
Product Name
ST 450 Meters Deep Water Well Pneumatic Drilling Machine
Drilling Depth
350-450 meters
Hole Diameter
105-305 mm
Power Type
Diesel (Yuchai Engine)
Lifting Power
24T
Warranty
1 Year
Technical Specifications
Drilling Depth 450m
Hole Diameter φ105-305mm
Advance Length per Cycle 6.6m
Working Pressure 1.7-3.3MPa
Air Consumption 17-35m³/min
Rotation Torque 6200-8500 N.m
Engine Power 85Kw/2200rpm
Weight 9000kgs
Key Features
  • High drilling efficiency with 92KW Yuchai diesel engine
  • Exceptional performance (20M~40M/Hour) with large rotary torque (8500N.m)
  • Integrated automation equipment with all-terrain mobility
  • Durable design for extended service life
  • Self-loading and unloading system for easy operation
  • Versatile drilling methods: Top drive hydraulic rotary, DTH drilling, or mud pump drilling
Service & Support
  • 1-year warranty on main machine (hammer excluded)
  • Video support for machine installation and operation
  • Flexible payment terms: 30% deposit, 70% before delivery
  • Standard delivery within 7-10 working days after payment
Trailer Mounted Drilling Rig Advantages
  • Excellent mobility - can be towed by tractors for easy relocation
  • Independent production of key components ensures reliability
  • Independent diesel engine power source
  • Simple operation with strong usability and easy maintenance
  • Equipped with four hydraulic jacks for safety and stability
Pneumatic Water Borehole Machine 450 Meters Deep Underground Rocky Drilling 0 Pneumatic Water Borehole Machine 450 Meters Deep Underground Rocky Drilling 1 Pneumatic Water Borehole Machine 450 Meters Deep Underground Rocky Drilling 2 Pneumatic Water Borehole Machine 450 Meters Deep Underground Rocky Drilling 3 Pneumatic Water Borehole Machine 450 Meters Deep Underground Rocky Drilling 4 Pneumatic Water Borehole Machine 450 Meters Deep Underground Rocky Drilling 5
