High Speed Rocky Strata Rotary Water Well Drilling Rig 200m Depth Pneumatic

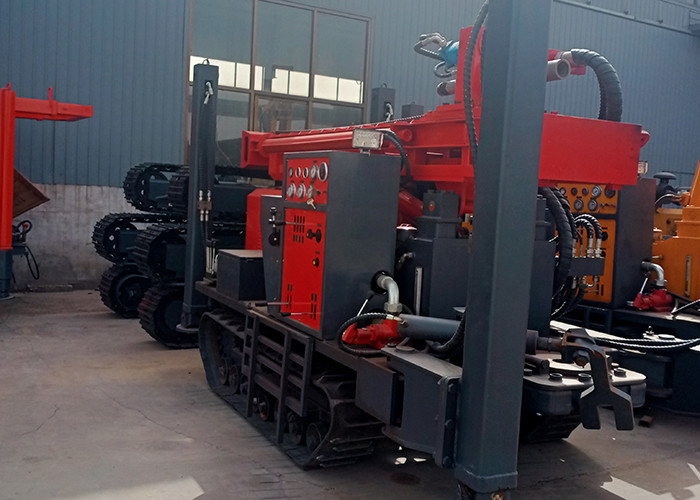

Large Image : High Speed Rocky Strata Rotary Water Well Drilling Rig 200m Depth Pneumatic

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST 200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 200 Water Well Drilling Rig	Model Number:	ST 200
Machine Type:	Drilling Equipment	Certification:	ISO
Hole Diameter:	Customized	Drilling Depths:	200 Meters
Condition:	New	Weight:	8.9 T
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min
Highlight:	pneumatic rotary water well drilling rig , 200m rotary water well drilling rig , rocky strata rotary well drilling rig

ST 200 High Speed Rocky Strata Rotary Water Well Drilling Rig

Product Specifications

Attribute	Value
Product Name	ST 200 Water Well Drilling Rig
Model Number	ST 200
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized
Drilling Depths	200 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation torque	7500Nm, 983 N.m, 4200N.m, 3400mm
Air consumption	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min

Product Overview

The ST 200 pneumatic drilling rig is a high-efficiency, multifunctional drilling equipment primarily designed for water wells, agricultural irrigation wells, ground source heat pump wells, and other well drilling applications. It is particularly effective for water intake projects in mountainous areas and rock formations.

Technical Parameters

Drilling Diameter:	140-305mm
Drilling Depth:	200 meters
Mobility:	Yes
Drill pipe diameter:	76mm, 89mm
Drill pipe length:	1.5m, 2.0m, 3.0m
One-time advance length:	3.3m
Walking speed:	2.5 km/h
Equipped capacitor:	70 kw
Using air pressure:	1.7-3.0 MPA
Swing speed:	45-70 rpm

Key Features

Hydraulically driven by diesel engine for reliable power
Simple and clear dashboard with easy-to-use controls
Crawler mounted structure for enhanced mobility

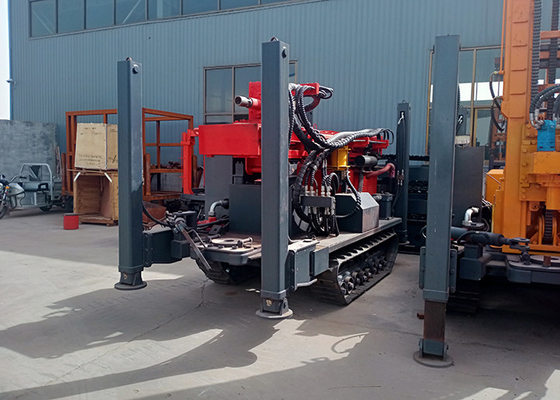

Four standard high legs for stability and easy transportation
New hydraulic technology with large torque hydraulic motor rotation
Two-stage air filter system extends engine life
Centralized control hydraulic console for efficient operation

Applications

The ST 200 drilling rig is suitable for various well drilling applications including:

Water wells for residential and commercial use
Agricultural irrigation systems
Ground source heat pump installations
Mountainous area water intake projects
Rock formation drilling operations

The maximum drilling diameter can reach 350mm, making it versatile for different geological conditions.

Rural Water Well Considerations

Select appropriate well type: Choose between deep wells, large wells, or small-diameter tube wells based on groundwater availability
Well layout: Arrange wells according to hydrogeological conditions, avoiding overly dense placement
Water pump configuration: Match pump specifications to well output and required working head
